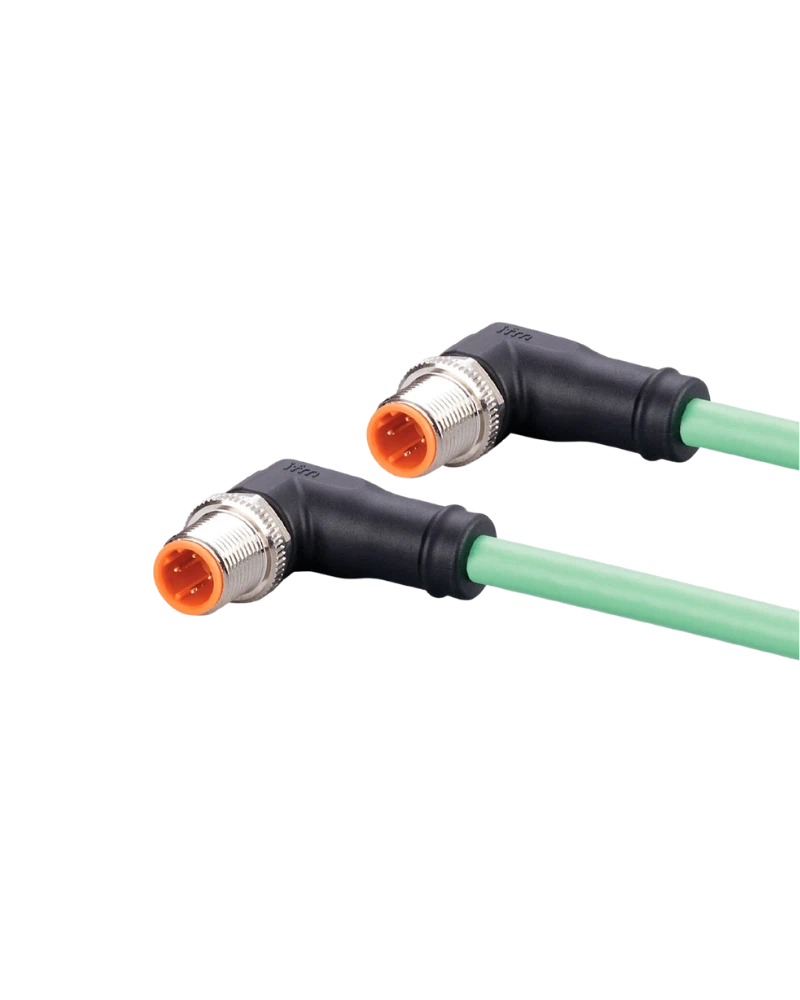

IFM EVC921 connection cable is a 5 m shielded PUR cable with angled M12 D-coded connectors at both ends. It provides reliable Industrial Ethernet connectivity, flexible cable routing and durable performance in demanding automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC921 provides a 5 m connection length for Industrial Ethernet devices installed across larger machine or production areas.
Both ends use angled M12 D-coded connectors, helping simplify cable routing in installations where connector orientation is important.
The green PUR cable is shielded and halogen-free, supporting reliable communication and electromagnetic compatibility.
The cable features robust M12 connectors, gold-plated contacts and IP65/IP67 protection. It is suitable for Industrial Ethernet, CAT5/CAT5e and 100 Mbit/s applications.
5 m Cable Length: Provides flexible connectivity across larger machine layouts.
Dual Angled Connectors: Supports easier cable routing.
Shielded Construction: Helps minimise electromagnetic interference.
Robust M12 Design: Provides dependable industrial connectivity.
Drag-Chain Suitable: Supports dynamic automation applications.
Industrial Ethernet
PROFINET systems
Factory automation
Machine tools
Production machinery
Industrial networking
Automation systems
Machine control
| Specification | Details |
|---|---|
| Product Code | EVC921 |
| Article Number | VSTAN040MSS0005K04STAN040MSS |
| Product Type | Connection Cable |
| Cable Length | 5 m |
| Cable Material | PUR |
| Cable Colour | Green |
| Cable Diameter | 6.5 mm |
| Cable Type | Shielded / Halogen-free |
| Standard | PROFINET Type C |
| Conductors | 4 × 0.34 mm² |
| Connector 1 | M12, angled |
| Connector 2 | M12, angled |
| Coding | D |
| Contacts | 4, gold-plated |
| Housing | TPU, black |
| Locking | Brass, nickel-plated |
| Operating Voltage | 30 V AC / 60 V DC |
| Maximum Current | 4 A |
| Protection | IP65 / IP67 |
| Ambient Temperature | -25 to +90 °C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Application | Industrial Ethernet |
| Transmission | CAT5/CAT5e, 100 Mbit/s |
| Pack Quantity | 1 pc |
