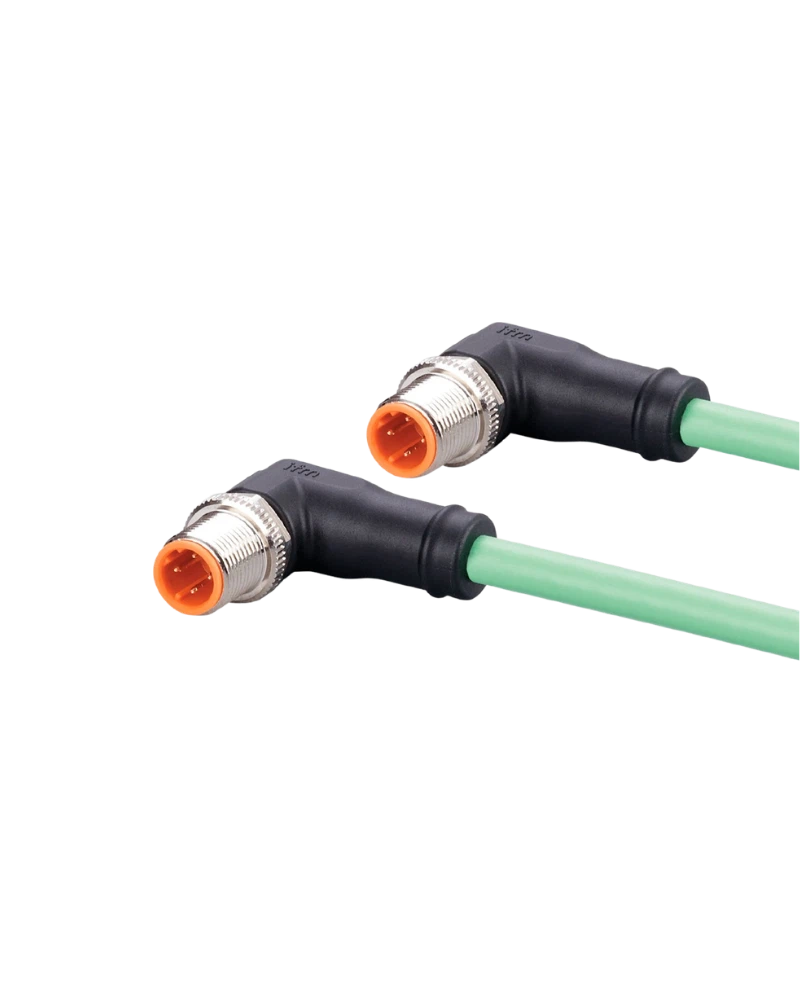

IFM EVC920 connection cable provides a 2 m shielded PUR cable with angled M12 D-coded connectors at both ends. It is designed for Industrial Ethernet and PROFINET applications requiring flexible routing and reliable industrial connectivity.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC920 provides 2 m of cable length for flexible connection between Industrial Ethernet devices in automation systems.
Both ends feature angled M12 D-coded connectors, helping provide better routing flexibility around machinery and equipment.
The green PUR cable is shielded and halogen-free. This supports reliable data transmission and good electromagnetic compatibility.
The cable provides IP65/IP67 protection and robust M12 construction for demanding industrial applications.
2 m Reach: Provides additional installation flexibility.
Dual Angled Connectors: Helps optimise cable routing.
Shielded PUR Cable: Supports reliable Industrial Ethernet communication.
Gold-Plated Contacts: Helps provide dependable connectivity.
High Protection Rating: Suitable for industrial environments.
Industrial Ethernet
PROFINET networks
Factory automation
Machine tools
Production lines
Industrial networking
Automation equipment
Control systems
| Specification | Details |
|---|---|
| Product Code | EVC920 |
| Article Number | VSTAN040MSS0002K04STAN040MSS |
| Product Type | Connection Cable |
| Cable Length | 2 m |
| Cable Material | PUR |
| Cable Colour | Green |
| Cable Diameter | 6.5 mm |
| Cable Type | Shielded / Halogen-free |
| Standard | PROFINET Type C |
| Conductors | 4 × 0.34 mm² |
| Connector 1 | M12, angled |
| Connector 2 | M12, angled |
| Coding | D |
| Contacts | 4, gold-plated |
| Housing | TPU, black |
| Locking | Brass, nickel-plated |
| Operating Voltage | 30 V AC / 60 V DC |
| Maximum Current | 4 A |
| Protection | IP65 / IP67 |
| Ambient Temperature | -25 to +90 °C |
| Drag Chain Suitability | Yes |
| Application | Industrial Ethernet |
| Transmission | CAT5/CAT5e, 100 Mbit/s |
| Pack Quantity | 1 pc |
