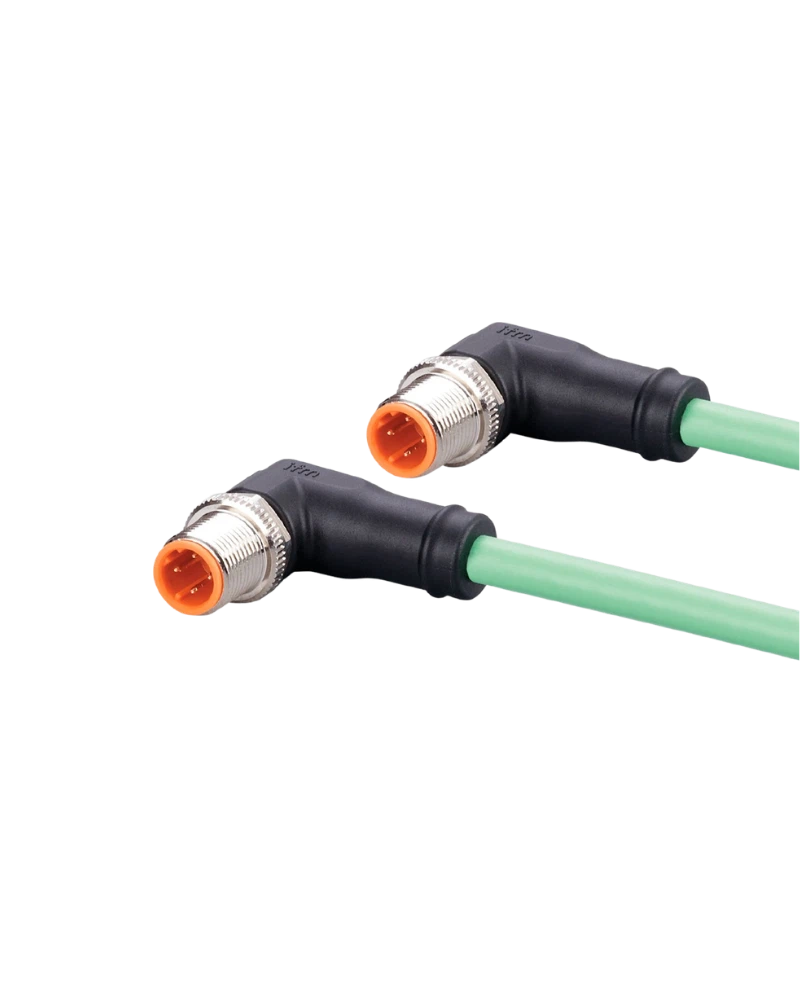

IFM EVC919 connection cable features a 1 m shielded PUR cable with angled M12 D-coded connectors at both ends. It is designed for reliable Industrial Ethernet communication and flexible cable routing in factory automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC919 provides a 1 m cable length for connecting nearby Industrial Ethernet components while maintaining installation flexibility.
The two angled M12 D-coded connectors help simplify routing around machine structures, panels and automation equipment.
The green PUR cable is shielded and halogen-free, supporting electromagnetic compatibility and dependable signal transmission.
The cable includes gold-plated contacts, robust M12 connectors and IP65/IP67 protection, making it suitable for demanding automation environments.
1 m Length: Suitable for standard machine connections.
Dual Angled Design: Provides flexible installation.
Shielded Construction: Supports reliable communication.
M12 D Coding: Designed for Industrial Ethernet.
Robust Protection: Suitable for industrial environments.
Industrial Ethernet
PROFINET
Factory automation
Production machinery
Machine tools
Industrial networks
Automation systems
Machine control
| Specification | Details |
|---|---|
| Product Code | EVC919 |
| Article Number | VSTAN040MSS0001K04STAN040MSS |
| Product Type | Connection Cable |
| Cable Length | 1 m |
| Cable Material | PUR |
| Cable Colour | Green |
| Cable Diameter | 6.5 mm |
| Cable Type | Shielded / Halogen-free |
| Standard | PROFINET Type C |
| Conductors | 4 × 0.34 mm² |
| Connector 1 | M12, angled |
| Connector 2 | M12, angled |
| Coding | D |
| Contacts | 4, gold-plated |
| Housing | TPU, black |
| Locking | Brass, nickel-plated |
| Operating Voltage | 30 V AC / 60 V DC |
| Maximum Current | 4 A |
| Protection | IP65 / IP67 |
| Ambient Temperature | -25 to +90 °C |
| Drag Chain Suitability | Yes |
| Application | Industrial Ethernet |
| Transmission | CAT5/CAT5e, 100 Mbit/s |
| Pack Quantity | 1 pc |
