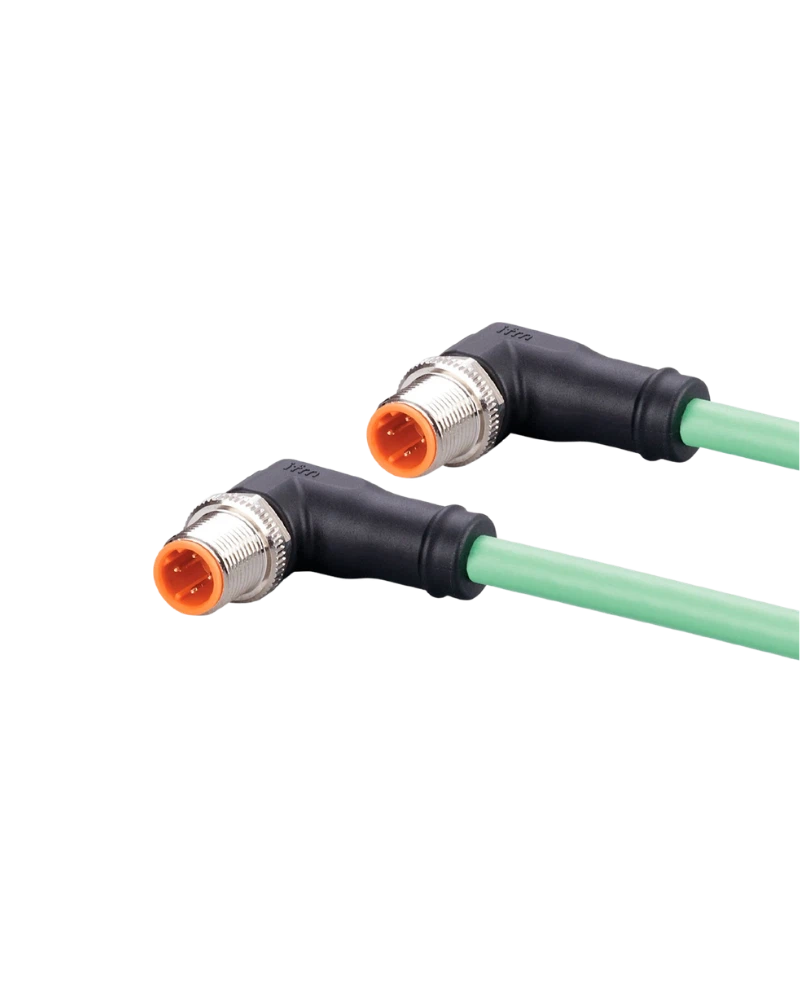

IFM EVC918 connection cable provides a 0.5 m shielded PUR cable with angled M12 D-coded connectors on both ends. It offers reliable Industrial Ethernet connectivity with flexible routing for compact automation installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC918 is designed for short-distance connections between Industrial Ethernet devices and automation components.
Both connectors are angled M12 D-coded types, providing convenient routing where straight connectors may require additional installation space.
The green PUR cable is shielded and halogen-free, helping maintain communication quality in industrial environments.
The cable uses gold-plated contacts and robust M12 construction, with IP65/IP67 protection for demanding applications.
0.5 m Length: Suitable for compact device connections.
Angled Connectors: Supports convenient cable routing.
Shielded Cable: Helps reduce electromagnetic interference.
Gold-Plated Contacts: Supports reliable electrical connection.
Industrial Protection: Suitable for demanding automation environments.
Industrial Ethernet
PROFINET systems
Factory automation
Machine tools
Industrial machinery
Automation equipment
Control systems
Machine networking
| Specification | Details |
|---|---|
| Product Code | EVC918 |
| Article Number | VSTAN040MSS005K04STAN040MSS |
| Product Type | Connection Cable |
| Cable Length | 0.5 m |
| Cable Material | PUR |
| Cable Colour | Green |
| Cable Diameter | 6.5 mm |
| Cable Type | Shielded / Halogen-free |
| Standard | PROFINET Type C |
| Conductors | 4 × 0.34 mm² |
| Connector 1 | M12, angled |
| Connector 2 | M12, angled |
| Coding | D |
| Contacts | 4, gold-plated |
| Housing | TPU, black |
| Locking | Brass, nickel-plated |
| Operating Voltage | 30 V AC / 60 V DC |
| Maximum Current | 4 A |
| Protection | IP65 / IP67 |
| Ambient Temperature | -25 to +90 °C |
| Drag Chain Suitability | Yes |
| Application | Industrial Ethernet |
| Transmission | CAT5/CAT5e, 100 Mbit/s |
| Pack Quantity | 1 pc |
