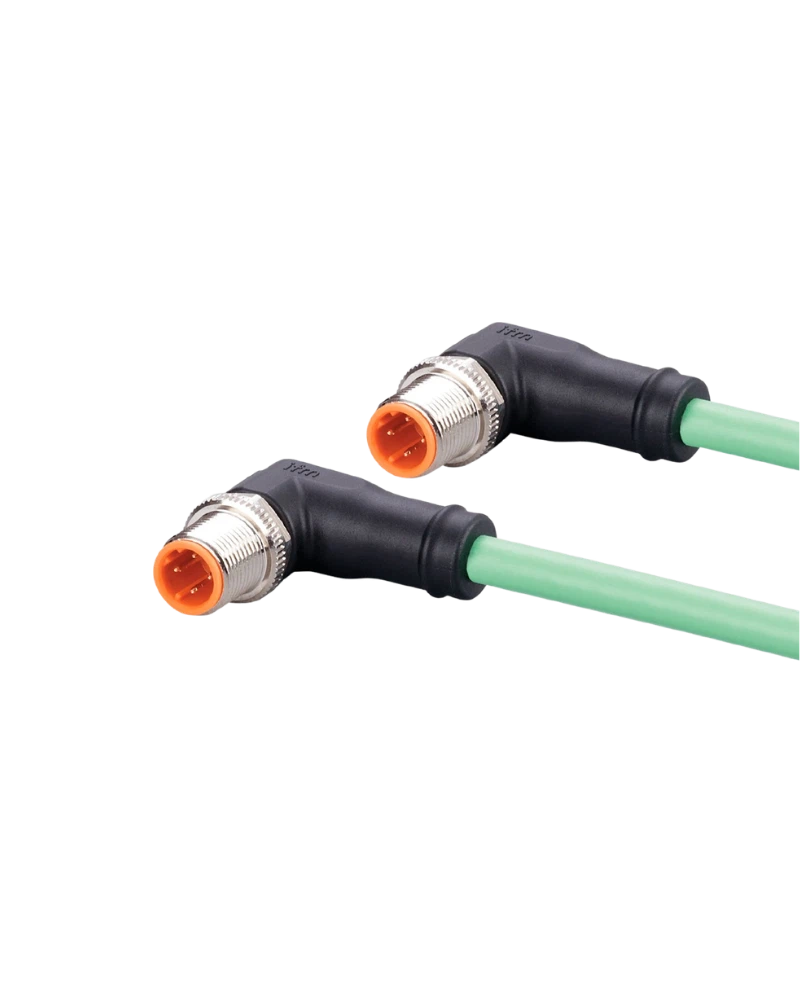

IFM EVC917 connection cable is a compact 0.25 m shielded PUR cable with angled M12 D-coded connectors at both ends. It is designed for Industrial Ethernet applications requiring space-efficient and flexible cable routing.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC917 provides a short 0.25 m connection for closely positioned Industrial Ethernet devices and automation components.
Both ends use angled M12 D-coded connectors, making the cable suitable for installations where connector orientation and available space are important.
The green PUR cable is shielded and halogen-free, helping provide reliable communication and good electromagnetic compatibility.
The cable features robust M12 connectors and IP65/IP67 protection for demanding industrial applications.
Compact 0.25 m Length: Ideal for short device connections.
Dual Angled Connectors: Supports efficient cable routing.
Shielded Cable: Helps minimise electromagnetic interference.
M12 D Coding: Suitable for Industrial Ethernet.
High Protection: Supports harsh industrial environments.
Industrial Ethernet
PROFINET
Factory automation
Machine tools
Compact automation systems
Industrial networking
Production machinery
Control systems
| Specification | Details |
|---|---|
| Product Code | EVC917 |
| Article Number | VSTAN040MSS0,25K04STAN040MSS |
| Product Type | Connection Cable |
| Cable Length | 0.25 m |
| Cable Material | PUR |
| Cable Colour | Green |
| Cable Diameter | 6.5 mm |
| Cable Type | Shielded / Halogen-free |
| Standard | PROFINET Type C |
| Conductors | 4 × 0.34 mm² |
| Connector 1 | M12, angled |
| Connector 2 | M12, angled |
| Coding | D |
| Contacts | 4, gold-plated |
| Housing | TPU, black |
| Locking | Brass, nickel-plated |
| Operating Voltage | 30 V AC / 60 V DC |
| Maximum Current | 4 A |
| Protection | IP65 / IP67 |
| Ambient Temperature | -25 to +90 °C |
| Drag Chain Suitability | Yes |
| Application | Industrial Ethernet |
| Transmission | CAT5/CAT5e, 100 Mbit/s |
| Pack Quantity | 1 pc |
