IFM EVC916 connection cable features a 20 m shielded PUR cable with straight and angled M12 D-coded connectors. It provides extended Industrial Ethernet connectivity for factory automation, machinery and industrial networking systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC916 is designed for applications requiring a longer connection between Industrial Ethernet components. Its 20 m length provides flexibility across larger machine layouts.

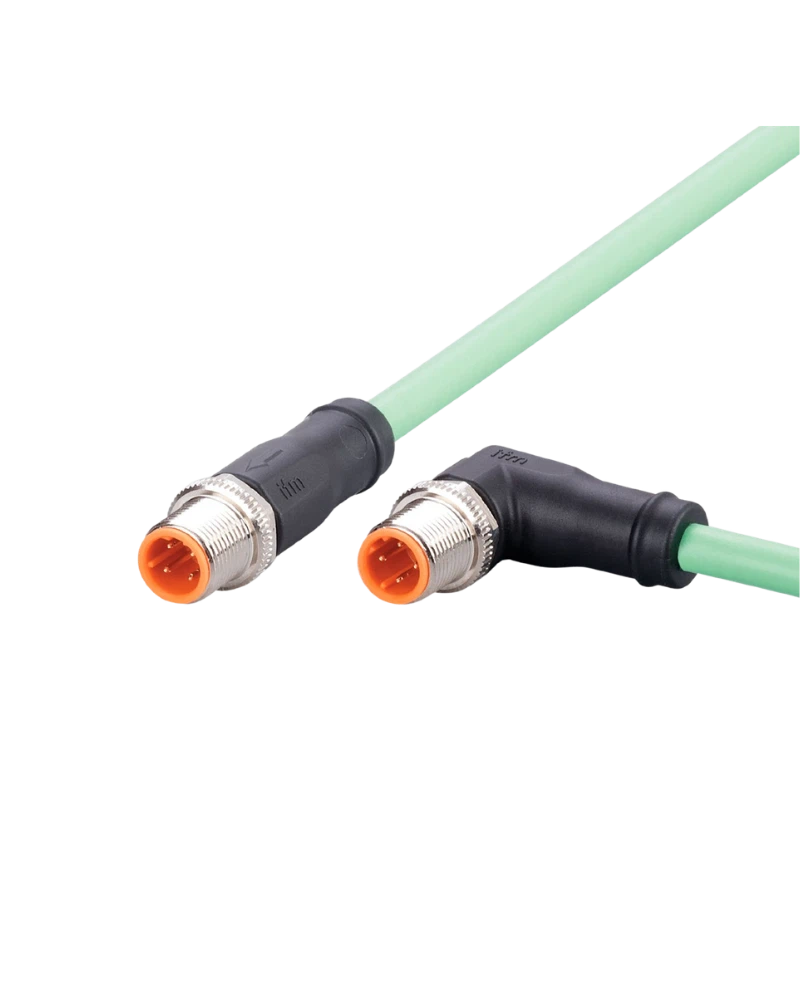

The cable uses straight and angled M12 D-coded connectors, helping accommodate different cable-routing requirements.
The green PUR cable is shielded and halogen-free, helping maintain reliable communication and good electromagnetic compatibility.
The cable supports Industrial Ethernet and PROFINET applications while providing IP65/IP67 protection and drag-chain suitability.
20 m Cable Length: Suitable for long-distance machine connections.
Flexible Connector Orientation: Helps simplify cable routing.
Shielded PUR Construction: Supports dependable communication.
Industrial M12 Connection: Provides robust device connectivity.
Dynamic Application Support: Suitable for automated machinery.
Industrial Ethernet
PROFINET systems
Factory automation
Large machinery
Production lines
Industrial networking
Machine tools
Automation systems
| Specification | Details |
|---|---|
| Product Code | EVC916 |
| Article Number | VSTGN040MSS0020K04STAN040MSS |
| Product Type | Connection Cable |
| Cable Length | 20 m |
| Cable Material | PUR |
| Cable Colour | Green |
| Cable Diameter | 6.5 mm |
| Cable Type | Shielded / Halogen-free |
| Standard | PROFINET Type C |
| Conductors | 4 × 0.34 mm² |
| Connector 1 | M12, straight |
| Connector 2 | M12, angled |
| Coding | D |
| Contacts | 4, gold-plated |
| Housing | TPU, black |
| Locking | Brass, nickel-plated |
| Operating Voltage | 30 V AC / 60 V DC |
| Maximum Current | 4 A |
| Protection | IP65 / IP67 |
| Ambient Temperature | -25 to +90 °C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Application | Industrial Ethernet |
| Transmission | CAT5/CAT5e, 100 Mbit/s |
| Pack Quantity | 1 pc |
