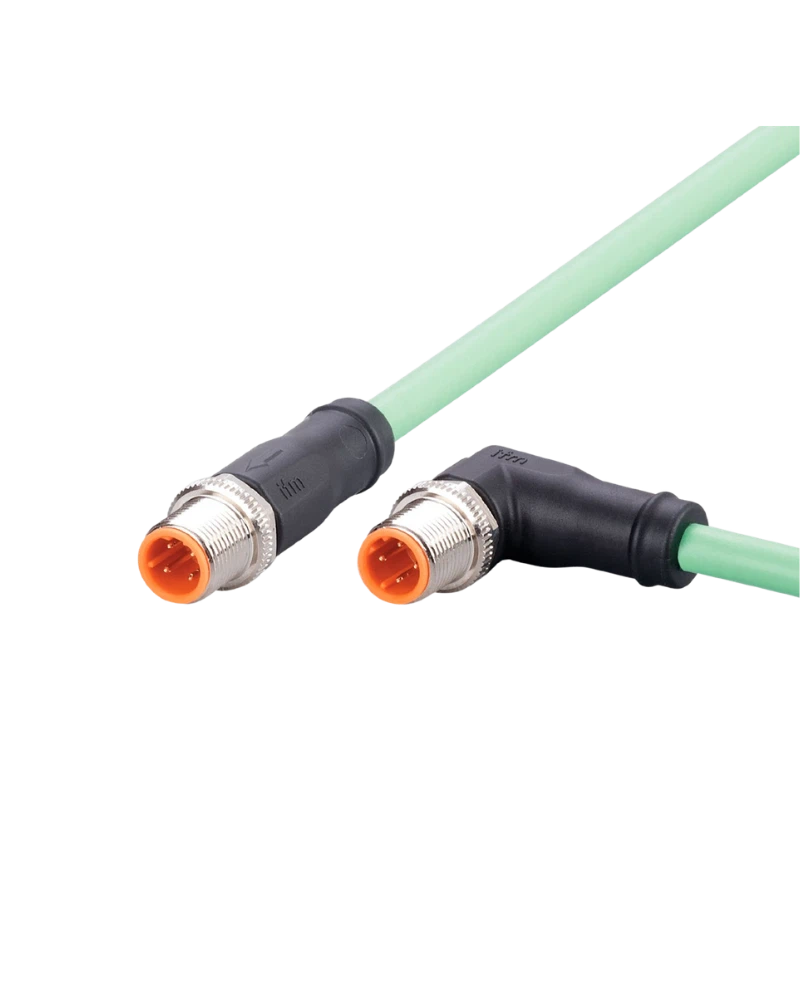

IFM EVC915 connection cable provides a 10 m shielded PUR cable with straight and angled M12 D-coded connectors. It is designed for reliable Industrial Ethernet communication, flexible cable routing and demanding automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC915 provides extended 10 m connectivity for Industrial Ethernet installations where automation devices are positioned farther apart.
Its straight-to-angled M12 D-coded configuration provides additional flexibility when installing the cable around machinery and control equipment.
The cable uses a green, shielded and halogen-free PUR sheath to support reliable data transmission and electromagnetic compatibility.
The cable is suitable for Industrial Ethernet, CAT5/CAT5e and 100 Mbit/s applications. Its IP65/IP67 protection and drag-chain suitability support demanding industrial use.
10 m Reach: Suitable for larger machine layouts.
Straight-Angled Configuration: Provides routing flexibility.
Shielded Construction: Helps protect communication quality.
High Protection: IP65/IP67 rating supports industrial environments.
Dynamic Application Support: Suitable for moving machine applications.
Industrial Ethernet
PROFINET networks
Factory automation
Machine tools
Production systems
Industrial machinery
Control panels
Automation networks
| Specification | Details |
|---|---|
| Product Code | EVC915 |
| Article Number | VSTGN040MSS0010K04STAN040MSS |
| Product Type | Connection Cable |
| Cable Length | 10 m |
| Cable Material | PUR |
| Cable Colour | Green |
| Cable Diameter | 6.5 mm |
| Cable Type | Shielded / Halogen-free |
| Standard | PROFINET Type C |
| Conductors | 4 × 0.34 mm² |
| Connector 1 | M12, straight |
| Connector 2 | M12, angled |
| Coding | D |
| Contacts | 4, gold-plated |
| Connector Body | TPU, black |
| Locking | Brass, nickel-plated |
| Operating Voltage | 30 V AC / 60 V DC |
| Maximum Current | 4 A |
| Protection | IP65 / IP67 |
| Ambient Temperature | -25 to +90 °C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Application | Industrial Ethernet |
| Transmission | CAT5/CAT5e, 100 Mbit/s |
| Pack Quantity | 1 pc |
