IFM EVC914 connection cable features a 5 m shielded PUR cable with straight and angled M12 D-coded connectors. It provides reliable Industrial Ethernet communication with flexible routing for industrial automation and machine networking applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC914 offers a 5 m cable length for connecting Industrial Ethernet components positioned farther apart within machines or production systems.

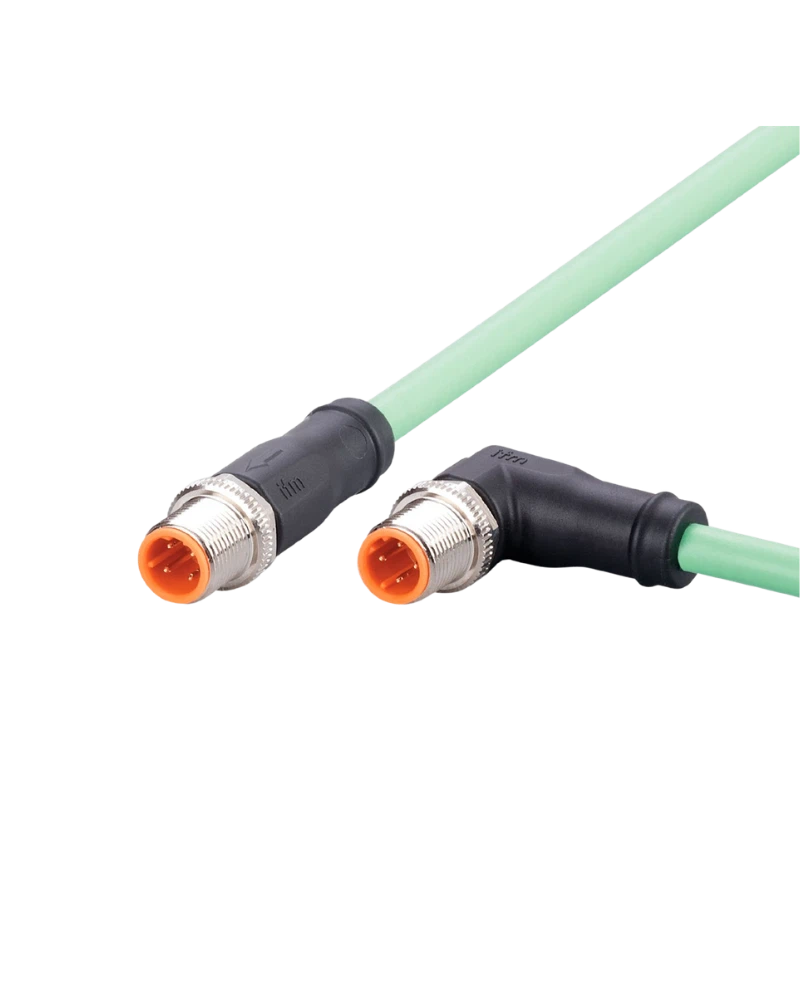

The cable combines straight and angled M12 D-coded connectors, providing better flexibility when routing cables around equipment.
The green PUR cable is shielded and halogen-free. This construction supports electromagnetic compatibility and dependable communication.
The cable provides IP65/IP67 protection and drag-chain suitability. It is designed for Industrial Ethernet, CAT5/CAT5e and 100 Mbit/s applications.
5 m Cable Length: Suitable for extended machine connections.
Flexible Connector Orientation: Helps accommodate restricted installation areas.
Shielded Cable: Helps reduce electromagnetic interference.
Robust M12 Connectors: Supports secure industrial connections.
Drag-Chain Suitable: Suitable for dynamic automation applications.
Industrial Ethernet
PROFINET systems
Factory automation
Machine tools
Production machinery
Industrial networking
Automation systems
Machine control
| Specification | Details |
|---|---|
| Product Code | EVC914 |
| Article Number | VSTGN040MSS0005K04STAN040MSS |
| Product Type | Connection Cable |
| Cable Length | 5 m |
| Cable Material | PUR |
| Cable Colour | Green |
| Cable Diameter | 6.5 mm |
| Cable Type | Shielded / Halogen-free |
| Standard | PROFINET Type C |
| Conductors | 4 × 0.34 mm² |
| Connector 1 | M12, straight |
| Connector 2 | M12, angled |
| Coding | D |
| Contacts | 4, gold-plated |
| Housing | TPU, black |
| Locking Nut | Brass, nickel-plated |
| Operating Voltage | 30 V AC / 60 V DC |
| Maximum Current | 4 A |
| Protection | IP65 / IP67 |
| Ambient Temperature | -25 to +90 °C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Application | Industrial Ethernet |
| Transmission | CAT5/CAT5e, 100 Mbit/s |
| Pack Quantity | 1 pc |
