IFM EVC913 connection cable provides a 2 m shielded PUR cable with straight and angled M12 D-coded connectors. It is designed for reliable Industrial Ethernet communication and flexible installation in factory automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC913 provides a 2 m connection length for Industrial Ethernet equipment. It is suitable where additional cable reach is required between automation components.

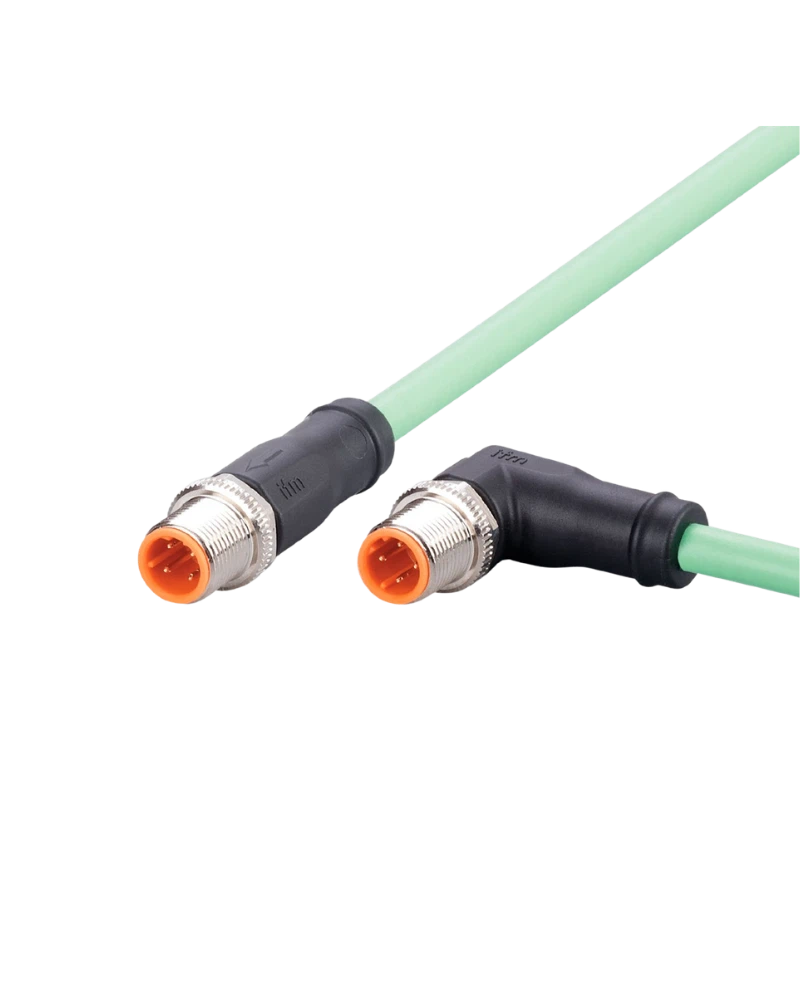

One end features a straight M12 connector while the other uses an angled M12 connector. This arrangement helps simplify installation and cable routing.
The green PUR cable is shielded and halogen-free, supporting reliable signal transmission and electromagnetic compatibility.
Gold-plated contacts, TPU connector bodies and IP65/IP67 protection make the EVC913 suitable for demanding industrial automation environments.
2 m Reach: Provides flexible connection distance.
Angled Connector: Helps simplify cable routing.
Shielded Cable: Supports reliable Ethernet communication.
Gold-Plated Contacts: Helps maintain dependable electrical contact.
High Protection Rating: Suitable for harsh industrial environments.
Industrial Ethernet
PROFINET automation
Factory automation
Machine tools
Production lines
Industrial machinery
Control systems
Automation networks
| Specification | Details |
|---|---|
| Product Code | EVC913 |
| Article Number | VSTGN040MSS0002K04STAN040MSS |
| Product Type | Connection Cable |
| Cable Length | 2 m |
| Cable Material | PUR |
| Cable Colour | Green |
| Cable Diameter | 6.5 mm |
| Cable Type | Shielded, Halogen-free |
| Standard | PROFINET Type C |
| Conductors | 4 × 0.34 mm² |
| Connector 1 | M12, straight |
| Connector 2 | M12, angled |
| Coding | D |
| Contacts | 4, gold-plated |
| Housing | TPU, black |
| Locking | Brass, nickel-plated |
| Operating Voltage | 30 V AC / 60 V DC |
| Maximum Current | 4 A |
| Protection | IP65 / IP67 |
| Ambient Temperature | -25 to +90 °C |
| Drag Chain Suitability | Yes |
| Application | Industrial Ethernet |
| Transmission | CAT5/CAT5e, 100 Mbit/s |
| Pack Quantity | 1 pc |
