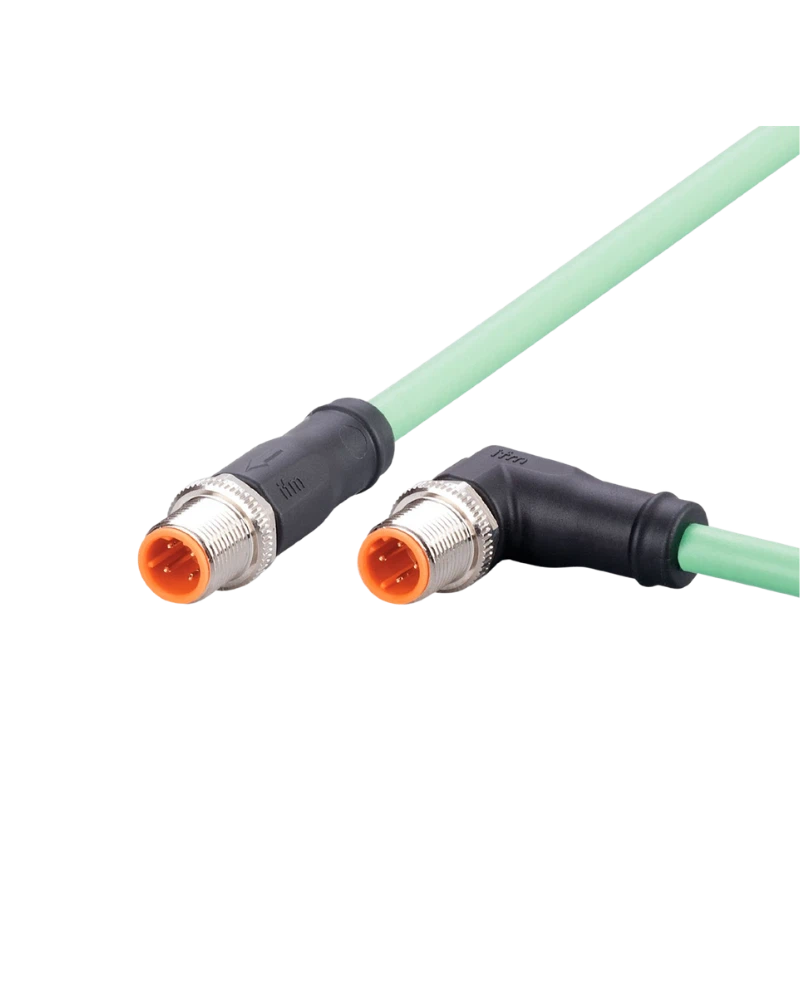

IFM EVC912 connection cable features a 1 m shielded PUR cable with straight and angled M12 D-coded connectors. Designed for Industrial Ethernet and PROFINET applications, it provides reliable communication, flexible routing and durable performance.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC912 is a 1 m connection cable designed for Industrial Ethernet applications in factory automation and machine networking systems. Its compact length is suitable for connecting nearby automation components.
The cable combines one straight and one angled M12 D-coded connector, allowing convenient installation where connector orientation and cable routing are important.
The green PUR cable is shielded and halogen-free, helping provide good electromagnetic compatibility and reliable signal transmission in industrial environments.
The cable features gold-plated contacts, a robust TPU connector body and IP65/IP67 protection. It is suitable for demanding industrial applications and dynamic cable routing.
1 m Connection Length: Provides convenient connectivity between nearby automation components.
Straight and Angled Design: Supports flexible cable routing around machines.
Shielded Construction: Helps minimise electromagnetic interference.
M12 D Coding: Suitable for Industrial Ethernet connections.
Industrial Protection: IP65/IP67 protection supports demanding environments.
Industrial Ethernet networks
PROFINET systems
Factory automation
Machine tools
Production machinery
Industrial networking
Control systems
Automation equipment
| Specification | Details |
|---|---|
| Product Code | EVC912 |
| Article Number | VSTGN040MSS0001K04STAN040MSS |
| Product Type | Connection Cable |
| Cable Length | 1 m |
| Cable Material | PUR |
| Cable Colour | Green |
| Cable Diameter | 6.5 mm |
| Cable Construction | Shielded |
| Cable Standard | PROFINET Type C |
| Conductors | 4 × 0.34 mm² |
| Connector 1 | M12, straight |
| Connector 2 | M12, angled |
| Coding | D |
| Contacts | 4, gold-plated |
| Connector Body | TPU, black |
| Locking Nut | Brass, nickel-plated |
| Operating Voltage | 30 V AC / 60 V DC |
| Maximum Current | 4 A |
| Protection Rating | IP65 / IP67 |
| Ambient Temperature | -25 to +90 °C |
| Drag Chain Suitability | Yes |
| Application | Industrial Ethernet / CAT5/CAT5e |
| Transmission Speed | 100 Mbit/s |
| Pack Quantity | 1 pc |
