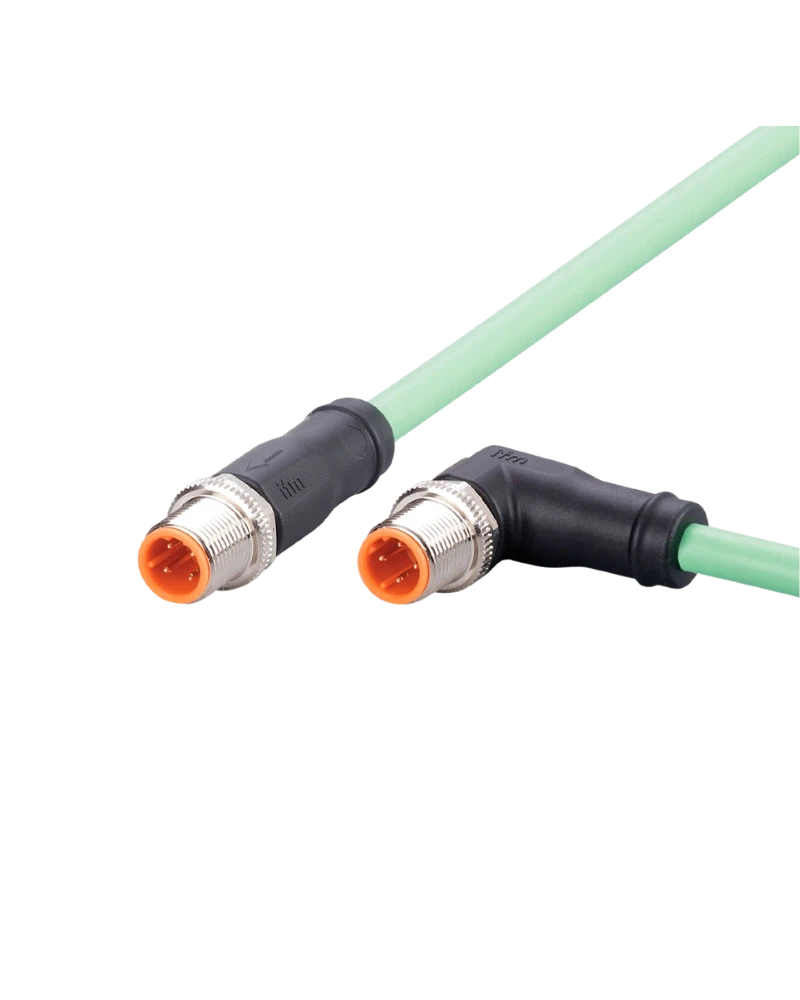

IFM EVC911 connection cable provides a 0.5 m shielded PUR cable with straight and angled M12 D-coded connectors. It is designed for reliable Industrial Ethernet connectivity and flexible cable routing in automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC911 is designed for compact Industrial Ethernet connections where connector orientation is important for installation.
The cable features one straight and one angled M12 D-coded connector, allowing improved routing flexibility around machinery and equipment.
Its 0.5 m green PUR cable is shielded and halogen-free, helping maintain reliable communication in industrial environments.
The cable provides high protection and is designed for Industrial Ethernet applications. IFM highlights its robust M12 connector, wide operating temperature range and good electromagnetic compatibility.
0.5 m Length: Suitable for short-distance equipment connections.
Straight-to-Angled Design: Provides flexible cable routing.
Shielded Cable: Helps improve electromagnetic compatibility.
Robust M12 Connectors: Supports secure industrial connections.
Industrial Construction: Suitable for demanding automation environments.
Industrial Ethernet
Factory automation
Machine tools
Production machinery
Automation systems
Industrial networking
Control systems
Machine communication
| Specification | Details |
|---|---|
| Product Code | EVC911 |
| Article Number | VSTGN040MSS00,5K04STAN040MSS |
| Product Type | Connection Cable |
| Cable Length | 0.5 m |
| Cable Material | PUR |
| Cable Colour | Green |
| Cable Diameter | 6.5 mm |
| Cable Type | Shielded / Halogen-free |
| Standard | PROFINET Type C |
| Conductors | 4 × 0.34 mm² |
| Connector 1 | M12, straight |
| Connector 2 | M12, angled |
| Coding | D |
| Contacts | 4, gold-plated |
| Housing | TPU, black |
| Locking | Brass, nickel-plated |
| Operating Voltage | 30 V AC / 60 V DC |
| Maximum Current | 4 A |
| Protection | IP65 / IP67 |
| Ambient Temperature | -25 to +90 °C |
| Drag Chain Suitability | Yes |
| Application | Industrial Ethernet |
| Transmission | CAT5/CAT5e, 100 Mbit/s |
| Pack Quantity | 1 pc |
