IFM EVC910 connection cable features a 0.25 m shielded PUR cable with one straight and one angled M12 D-coded connector. It provides compact Industrial Ethernet connectivity where flexible cable routing is required.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC910 is designed for short-distance Industrial Ethernet connections between automation components.

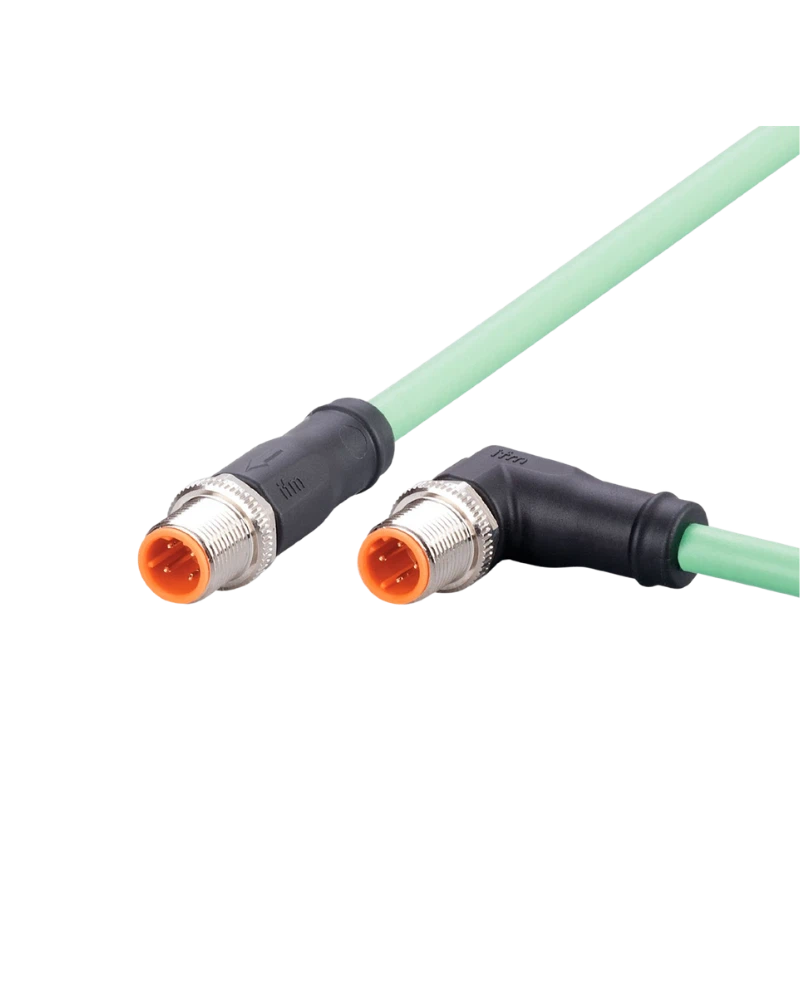

The cable combines one straight M12 D-coded connector and one angled M12 D-coded connector. This configuration helps accommodate different installation and routing requirements.
The 0.25 m green PUR cable is shielded and halogen-free, supporting reliable communication and electromagnetic compatibility.
The cable is designed for Industrial Ethernet applications and provides high protection, robust M12 connectivity and a wide operating temperature range.
Compact 0.25 m Length: Ideal for short equipment connections.
Mixed Connector Orientation: Straight and angled ends provide routing flexibility.
Shielded Construction: Helps reduce electromagnetic interference.
Robust M12 Connectors: Supports secure industrial connectivity.
Space Efficient: Suitable for compact machine installations.
Industrial Ethernet
Factory automation
Machine tools
Automation systems
Production machinery
Industrial networking
Control systems
Compact machine installations
| Specification | Details |
|---|---|
| Product Code | EVC910 |
| Article Number | VSTGN040MSS0,25K04STAN040MSS |
| Product Type | Connection Cable |
| Cable Length | 0.25 m |
| Cable Material | PUR |
| Cable Colour | Green |
| Cable Diameter | 6.5 mm |
| Cable Type | Shielded / Halogen-free |
| Standard | PROFINET Type C |
| Conductors | 4 × 0.34 mm² |
| Connector 1 | M12, straight |
| Connector 2 | M12, angled |
| Coding | D |
| Contacts | 4, gold-plated |
| Housing | TPU, black |
| Locking | Brass, nickel-plated |
| Operating Voltage | 30 V AC / 60 V DC |
| Maximum Current | 4 A |
| Protection | IP65 / IP67 |
| Ambient Temperature | -25 to +90 °C |
| Drag Chain Suitability | Yes |
| Application | Industrial Ethernet |
| Transmission | CAT5/CAT5e, 100 Mbit/s |
| Pack Quantity | 1 pc |
