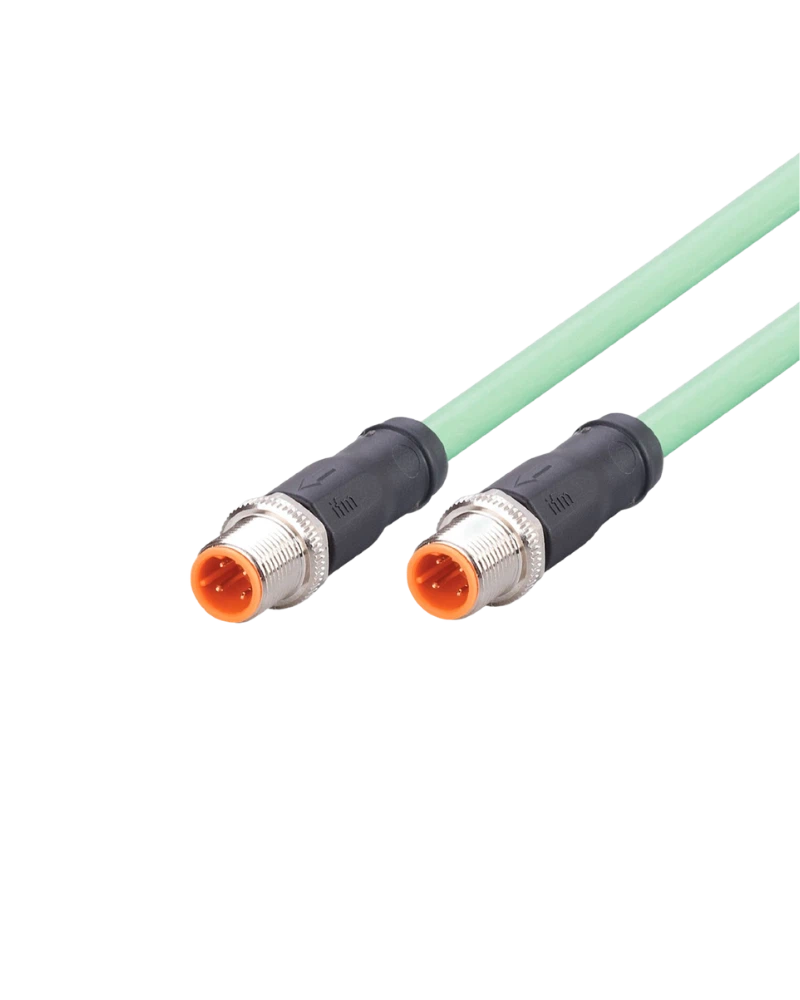

IFM EVC909 connection cable provides a 20 m shielded PUR cable with straight M12 D-coded connectors. Designed for Industrial Ethernet and CAT5/CAT5e communication, it delivers dependable connectivity for factory automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC909 provides a 20 m cable length for Industrial Ethernet connections across larger machines and production installations.
The straight M12 D-coded connector provides a secure industrial connection with four gold-plated contacts.
The green PUR cable is shielded and halogen-free, supporting reliable data communication and electromagnetic compatibility.
The cable is designed for Industrial Ethernet, CAT5/CAT5e and 100 Mbit/s applications. It also supports demanding industrial environments and dynamic installations.
20 m Reach: Suitable for extended machine connections.
Industrial Ethernet Support: Designed for reliable Ethernet communication.
Shielded Cable: Helps minimise electromagnetic interference.
Robust M12 Connection: Provides secure connectivity.
Flexible Installation: Suitable for larger automation layouts.
Industrial Ethernet
Factory automation
Production lines
Machine tools
Industrial networking
Automation systems
Machine control
Industrial machinery
| Specification | Details |
|---|---|
| Product Code | EVC909 |
| Article Number | VSTGN040MSS0020K04STGN040MSS |
| Product Type | Connection Cable |
| Cable Length | 20 m |
| Cable Material | PUR |
| Cable Colour | Green |
| Cable Diameter | 6.5 mm |
| Cable Type | Shielded / Halogen-free |
| Standard | PROFINET Type C |
| Conductors | 4 × 0.34 mm² |
| Connector 1 | M12, straight |
| Connector 2 | M12, straight |
| Coding | D |
| Contacts | 4, gold-plated |
| Housing | TPU, black |
| Locking | Brass, nickel-plated |
| Operating Voltage | 30 V AC / 60 V DC |
| Maximum Current | 4 A |
| Protection | IP65 / IP67 |
| Ambient Temperature | -25 to +90 °C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >3 million |
| Torsional Strain | ±180°/m |
| Application | Industrial Ethernet / CAT5/CAT5e |
| Transmission | 100 Mbit/s |
| Pack Quantity | 1 pc |
