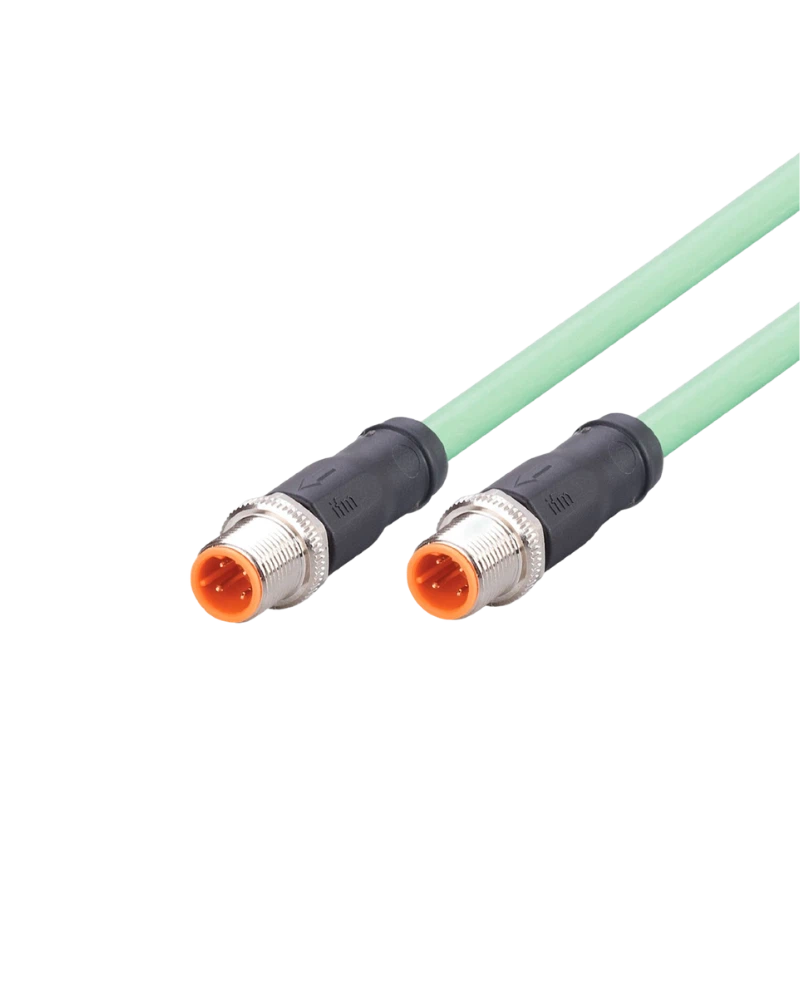

IFM EVC908 connection cable features a 10 m shielded PUR cable with straight M12 D-coded connectors for Industrial Ethernet. It supports reliable CAT5/CAT5e communication and flexible installation in factory automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC908 provides a 10 m connection length for Industrial Ethernet installations requiring additional cable reach.
Both ends use straight M12 D-coded connectors designed for Industrial Ethernet applications and secure device connectivity.
The green PUR cable is shielded, halogen-free and designed for demanding industrial environments. Its construction supports reliable data transmission.
The cable is intended for Industrial Ethernet, CAT5/CAT5e and 100 Mbit/s applications and provides high protection for industrial use.
10 m Cable Length: Provides extended installation flexibility.
Industrial Ethernet Ready: Supports CAT5/CAT5e networking.
Shielded Cable: Helps improve electromagnetic compatibility.
Robust M12 Connectors: Provide secure industrial connections.
Dynamic Application Support: Suitable for machine installations requiring flexible cable routing.
Industrial Ethernet
Factory automation
Production lines
Machine tools
Industrial machinery
Automation networks
Control systems
Machine communication
| Specification | Details |
|---|---|
| Product Code | EVC908 |
| Article Number | VSTGN040MSS0010K04STGN040MSS |
| Product Type | Connection Cable |
| Cable Length | 10 m |
| Cable Material | PUR |
| Cable Colour | Green |
| Cable Diameter | 6.5 mm |
| Cable Type | Shielded / Halogen-free |
| Standard | PROFINET Type C |
| Conductors | 4 × 0.34 mm² |
| Connector 1 | M12, straight |
| Connector 2 | M12, straight |
| Coding | D |
| Contacts | 4, gold-plated |
| Housing | TPU, black |
| Locking | Brass, nickel-plated |
| Operating Voltage | 30 V AC / 60 V DC |
| Maximum Current | 4 A |
| Protection | IP65 / IP67 |
| Ambient Temperature | -25 to +90 °C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Application | Industrial Ethernet |
| Transmission | CAT5/CAT5e, 100 Mbit/s |
| Pack Quantity | 1 pc |
