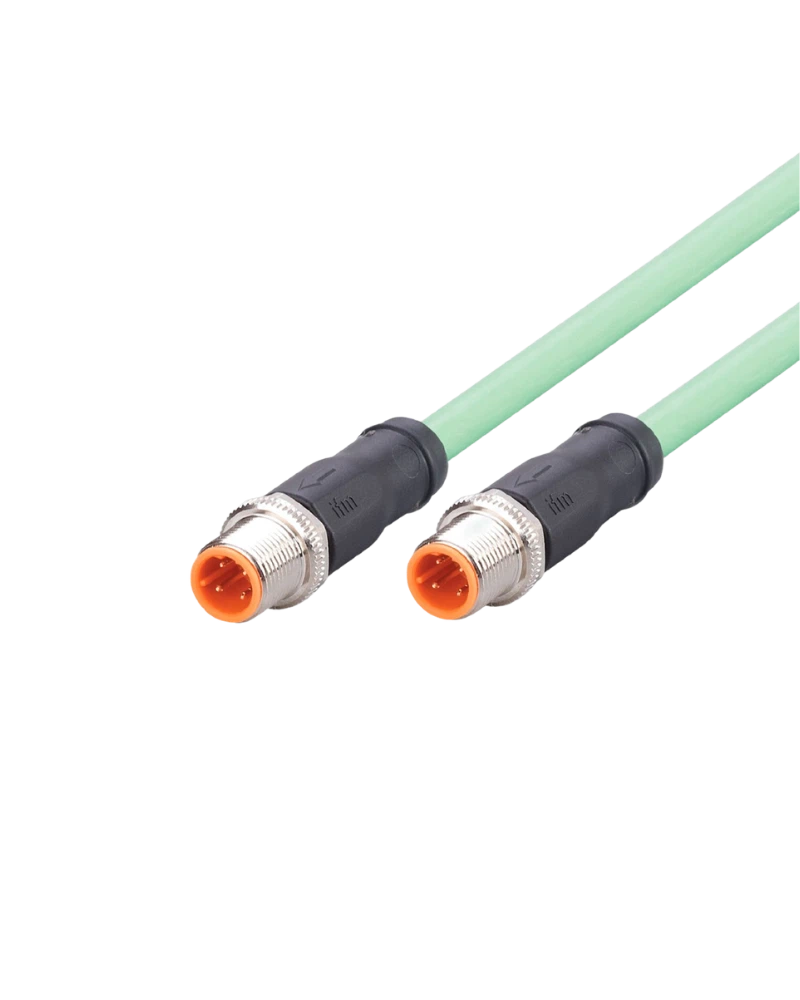

IFM EVC907 connection cable is a 5 m shielded PUR Ethernet cable with straight M12 D-coded connectors. It is designed for CAT5/CAT5e and 100 Mbit/s Industrial Ethernet communication in demanding automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC907 provides 5 m of cable length for connecting Industrial Ethernet devices across larger machine layouts.
Its straight M12 D-coded connector uses four gold-plated contacts and a robust locking arrangement for secure industrial connections.
The cable uses a green shielded PUR sheath and PROFINET Type C construction. It is halogen-free and suitable for demanding industrial environments.
The EVC907 is suitable for drag-chain use and supports Industrial Ethernet, CAT5/CAT5e and 100 Mbit/s communication.
5 m Reach: Supports flexible machine installation.
Reliable Ethernet Connection: Suitable for Industrial Ethernet networks.
Shielded Construction: Helps minimise electromagnetic interference.
Gold-Plated Contacts: Supports stable connectivity.
Drag-Chain Suitable: Designed for dynamic industrial applications.
Industrial Ethernet
Factory automation
Machine tools
Production lines
Automation systems
Industrial networking
Machine control
Industrial machinery
| Specification | Details |
|---|---|
| Product Code | EVC907 |
| Article Number | VSTGN040MSS0005K04STGN040MSS |
| Product Type | Connection Cable |
| Cable Length | 5 m |
| Cable Material | PUR |
| Cable Colour | Green |
| Cable Diameter | 6.5 mm |
| Cable Type | Shielded / Halogen-free |
| Standard | PROFINET Type C |
| Conductors | 4 × 0.34 mm² |
| Connector 1 | M12, straight |
| Connector 2 | M12, straight |
| Coding | D |
| Contacts | 4, gold-plated |
| Housing | TPU, black |
| Locking | Brass, nickel-plated |
| Operating Voltage | 30 V AC / 60 V DC |
| Maximum Current | 4 A |
| Protection | IP65 / IP67 |
| Ambient Temperature | -25 to +90 °C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >3 million |
| Torsional Strain | ±180°/m |
| Application | Industrial Ethernet / CAT5/CAT5e |
| Transmission | 100 Mbit/s |
| Pack Quantity | 1 pc |
