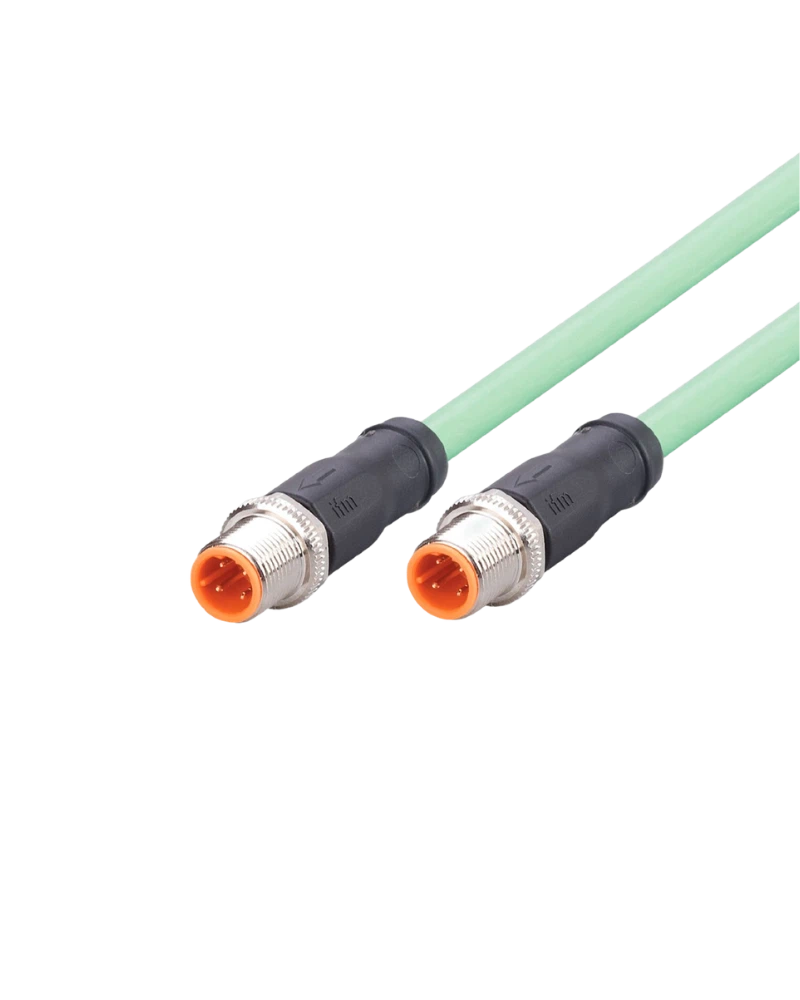

IFM EVC904 connection cable features a 0.5 m shielded PUR cable with straight M12 D-coded connectors. It is suitable for Industrial Ethernet, CAT5/CAT5e and reliable factory automation communication.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC904 provides a 0.5 m connection between Industrial Ethernet devices where a compact cable arrangement is required.
Both connection ends use straight M12 D-coded configurations with gold-plated contacts, supporting secure and dependable industrial networking.
The green PUR cable is halogen-free and shielded. Its construction helps protect signal quality while providing durability for industrial installations.
The cable is designed for Industrial Ethernet, CAT5/CAT5e and 100 Mbit/s applications, with IP65/IP67 protection.
0.5 m Length: Provides convenient short-distance connectivity.
Shielded Construction: Helps improve electromagnetic compatibility.
M12 D Coding: Designed for Industrial Ethernet connections.
Gold-Plated Contacts: Supports reliable electrical connectivity.
Industrial Protection: Suitable for demanding automation environments.
Industrial Ethernet
Factory automation
Machine tools
Production systems
Automation networks
Control systems
Industrial machinery
Machine communication
| Specification | Details |
|---|---|
| Product Code | EVC904 |
| Article Number | VSTGN040MSS00,5K04STGN040MSS |
| Product Type | Connection Cable |
| Cable Length | 0.5 m |
| Cable Material | PUR |
| Cable Colour | Green |
| Cable Diameter | 6.5 mm |
| Cable Type | Shielded / Halogen-free |
| Standard | PROFINET Type C |
| Conductors | 4 × 0.34 mm² |
| Connector 1 | M12, straight |
| Connector 2 | M12, straight |
| Coding | D |
| Contacts | 4, gold-plated |
| Housing | TPU, black |
| Locking | Brass, nickel-plated |
| Operating Voltage | 30 V AC / 60 V DC |
| Maximum Current | 4 A |
| Protection | IP65 / IP67 |
| Ambient Temperature | -25 to +90 °C |
| Drag Chain Suitability | Yes |
| Application | Industrial Ethernet |
| Transmission | CAT5/CAT5e, 100 Mbit/s |
| Pack Quantity | 1 pc |
