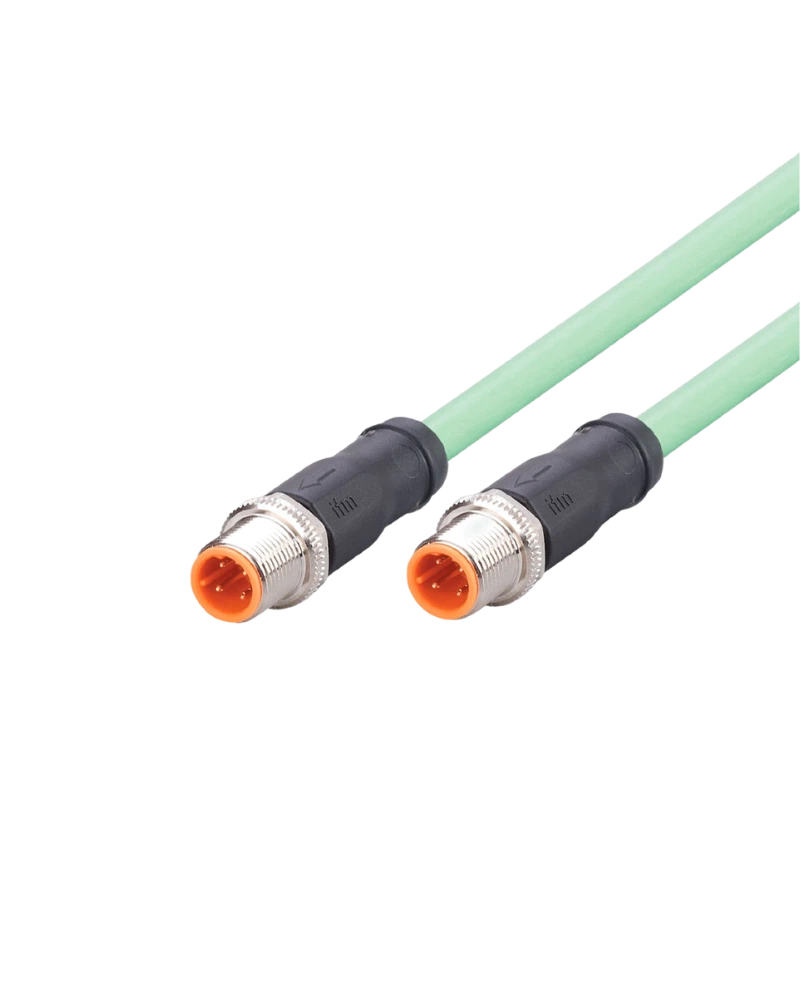

IFM EVC903 connection cable is a 0.25 m shielded PUR Ethernet cable with straight M12 D-coded connectors. It is designed for Industrial Ethernet, CAT5/CAT5e and reliable factory automation connections.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC903 is a compact jumper cable designed for short-distance Industrial Ethernet connections between automation components.
The cable uses M12 D-coded connectors designed for Industrial Ethernet applications. The connector configuration provides a secure and reliable connection between compatible devices.
Its 0.25 m green PUR cable is halogen-free and shielded, helping provide reliable communication and electromagnetic compatibility.
The cable is suitable for Industrial Ethernet, CAT5/CAT5e and 100 Mbit/s applications. IFM highlights its high protection rating and robust M12 construction for industrial environments.
Compact Length: Ideal for short-distance device connections.
Reliable Ethernet Connectivity: Supports Industrial Ethernet communication.
Shielded Cable: Helps reduce electromagnetic interference.
Robust M12 Design: Provides secure industrial connections.
Space Saving: Suitable for compact machine installations.
Industrial Ethernet
Factory automation
Machine tools
Automation equipment
Production machinery
Control systems
Industrial networking
Machine communication
| Specification | Details |
|---|---|
| Product Code | EVC903 |
| Article Number | VSTGN040MSS0,25K04STGN040MSS |
| Product Type | Connection Cable |
| Cable Length | 0.25 m |
| Cable Material | PUR |
| Cable Colour | Green |
| Cable Diameter | 6.5 mm |
| Cable Type | Shielded / Halogen-free |
| Standard | PROFINET Type C |
| Conductors | 4 × 0.34 mm² |
| Connector 1 | M12, straight |
| Connector 2 | M12, straight |
| Coding | D |
| Contacts | 4, gold-plated |
| Operating Voltage | 30 V AC / 60 V DC |
| Maximum Current | 4 A |
| Protection | IP65 / IP67 |
| Ambient Temperature | -25 to +90 °C |
| Drag Chain Suitability | Yes |
| Application | Industrial Ethernet / CAT5/CAT5e |
| Transmission Speed | 100 Mbit/s |
| Pack Quantity | 1 pc |
