IFM EVC902 connecting cable with plug features a 50 m shielded PUR cable and angled M12 D-coded connector for Industrial Ethernet. It provides reliable CAT5/CAT5e communication for demanding factory automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC902 is designed for Industrial Ethernet connections where extended cable length is required. Its 50 m length provides flexibility for connecting automation devices installed across larger machine or production areas.

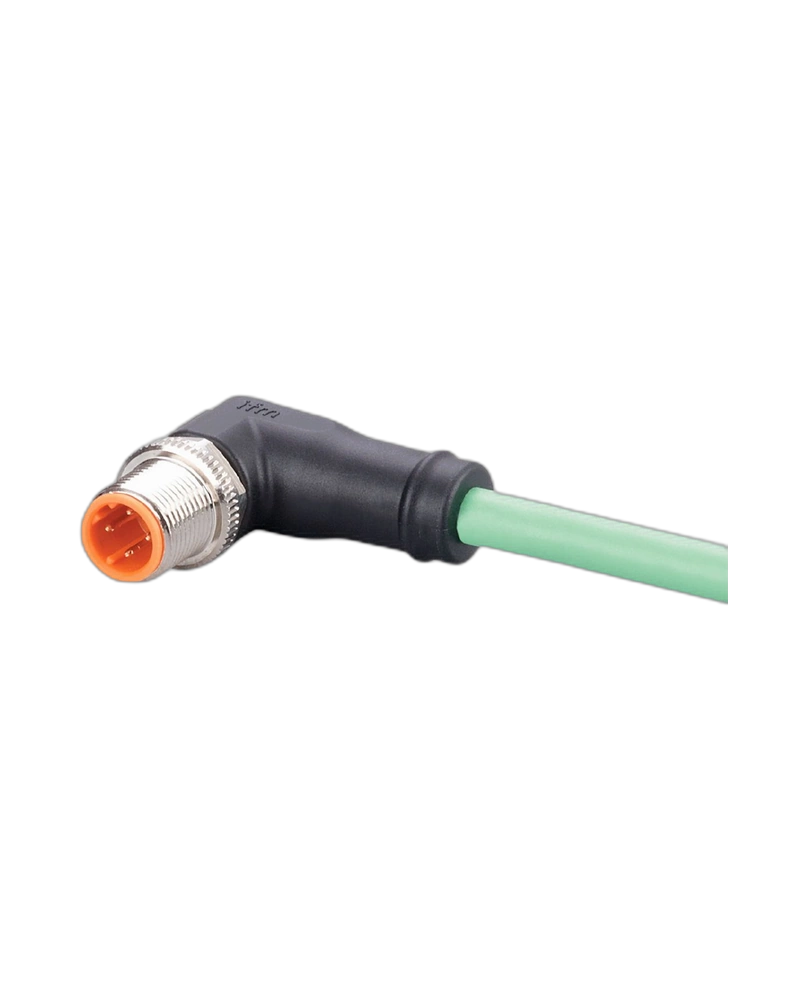

The cable is equipped with an angled M12 D-coded connector with four gold-plated contacts. The angled design helps simplify cable routing where installation space is limited.
The 50 m cable uses a green PUR sheath and shielded construction. It is halogen-free and designed for industrial environments where dependable communication and mechanical durability are required.
The cable supports Industrial Ethernet, CAT5/CAT5e and 100 Mbit/s applications. It also offers IP65/IP67 protection and drag-chain suitability.
Extended 50 m Reach: Suitable for long-distance machine and network connections.
Angled Connector: Supports easier routing in restricted installation spaces.
Reliable Ethernet Communication: Designed for CAT5/CAT5e and 100 Mbit/s applications.
Shielded Construction: Helps reduce electromagnetic interference.
Industrial Durability: PUR and robust M12 construction support demanding environments.
Industrial Ethernet networks
Factory automation
Production lines
Machine tools
Industrial machinery
Automation systems
Machine networking
Control systems
| Specification | Details |
|---|---|
| Product Code | EVC902 |
| Product Type | Connecting Cable with Plug |
| Article Number | ASTAN040MSS0050K04 |
| Cable Length | 50 m |
| Cable Material | PUR |
| Cable Colour | Green |
| Cable Diameter | 6.5 mm |
| Cable Type | Shielded, Halogen-free |
| Cable Standard | PROFINET Type C |
| Conductors | 4 × 0.34 mm² |
| Connector | M12, angled |
| Coding | D |
| Contacts | 4, gold-plated |
| Housing | TPU, black |
| Locking Nut | Brass, nickel-plated |
| Operating Voltage | 30 V AC / 60 V DC |
| Maximum Current | 4 A |
| Protection Rating | IP65 / IP67 |
| Ambient Temperature | -25 to +90 °C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >3 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
