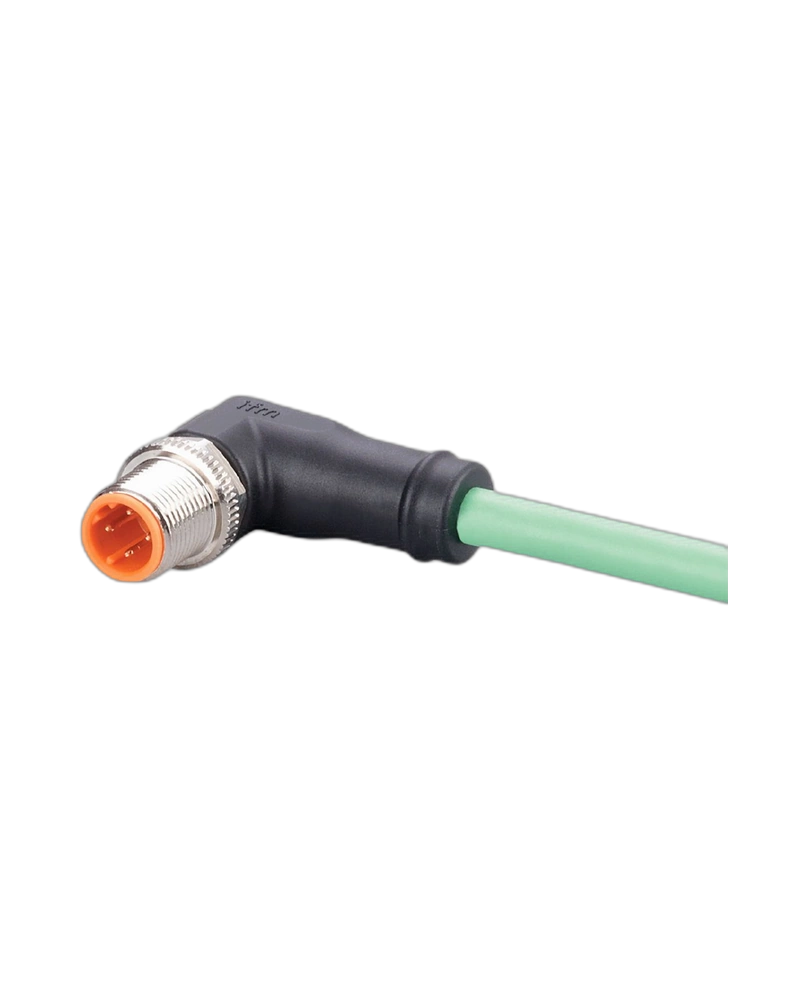

IFM EVC900 connecting cable with plug features a 10 m shielded PUR cable and angled M12 D-coded connector for Industrial Ethernet applications. It offers reliable communication, high protection and flexible installation for industrial automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC900 is designed for dependable Industrial Ethernet communication between automation devices, network components and machine equipment.
The 10 m cable provides extended reach for machine layouts where devices are installed at greater distances.
Its angled M12 D-coded connector helps improve cable routing and is particularly useful in compact installation areas.
The shielded, halogen-free PUR cable is designed for industrial applications. Gold-plated contacts and robust connector construction support reliable long-term connectivity.
Extended Cable Reach: 10 m length supports flexible installations.
Angled Connector: Helps simplify cable routing.
Industrial Ethernet Support: Suitable for CAT5/CAT5e and 100 Mbit/s applications.
Shielded Cable: Supports good electromagnetic compatibility.
Drag-Chain Suitable: Supports dynamic machine applications.
Industrial Ethernet
Factory automation
Machine tools
Production machinery
Industrial networking
Machine control
Automation equipment
Control cabinets
| Specification | Details |
|---|---|
| Product Code | EVC900 |
| Product Type | Connecting Cable with Plug |
| Article Number | ASTAN040MSS0010K04 |
| Cable Length | 10 m |
| Cable Material | PUR |
| Cable Colour | Green |
| Cable Diameter | 6.5 mm |
| Cable Type | Shielded / Halogen-free |
| Cable Standard | PROFINET Type C |
| Conductors | 4 × 0.34 mm² |
| Connector | M12, angled |
| Coding | D |
| Contacts | Gold-plated |
| Housing | TPU, black |
| Locking | Brass, nickel-plated |
| Operating Voltage | 30 V AC / 60 V DC |
| Maximum Current | 4 A |
| Protection | IP65 / IP67 |
| Ambient Temperature | -25 to +90 °C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >3 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
