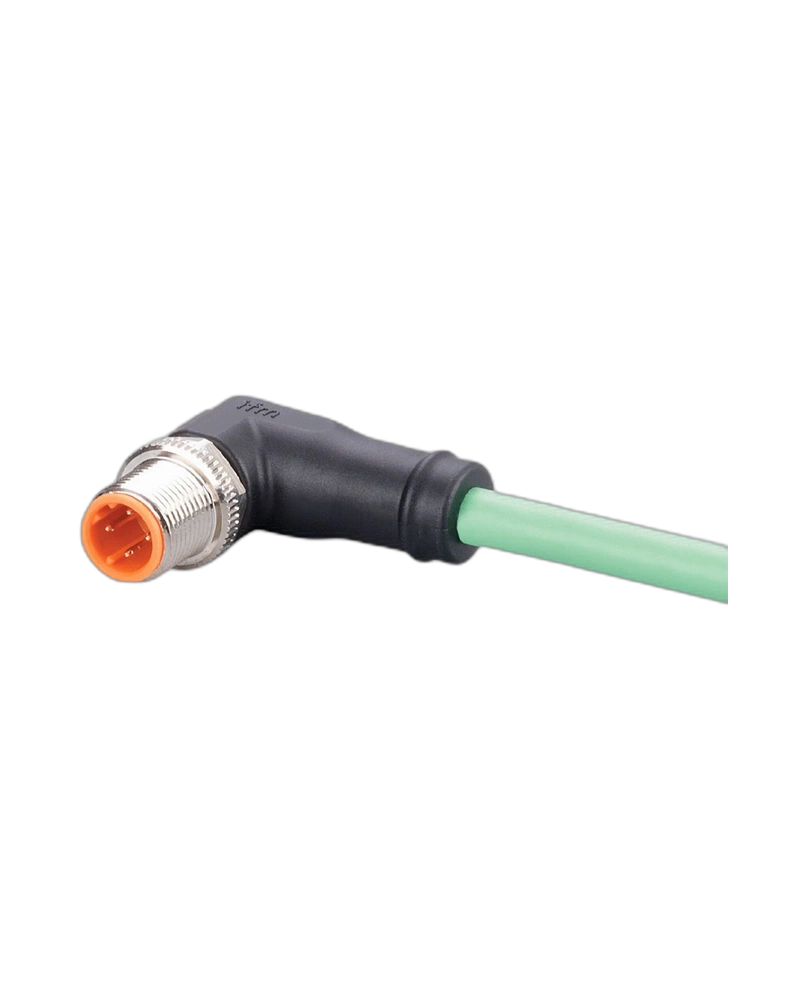

IFM EVC899 connecting cable with plug provides a 5 m shielded PUR cable with an angled M12 D-coded connector. It supports Industrial Ethernet, CAT5/CAT5e and 100 Mbit/s communication for demanding automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC899 is designed to connect Industrial Ethernet devices in factory automation and industrial machinery.
Its 5 m cable length provides additional routing flexibility for machines where Ethernet components are positioned farther apart.
The angled M12 D-coded connector is useful where cable routing requires a compact bend at the connection point.
The halogen-free shielded PUR cable supports reliable data transmission and improved electromagnetic compatibility in industrial environments.
Flexible 5 m Reach: Supports practical machine installation.
Angled M12 Design: Helps simplify cable routing.
Industrial Ethernet Compatible: Supports CAT5/CAT5e and 100 Mbit/s communication.
Shielded Cable: Helps improve EMC performance.
Robust Construction: Designed for harsh industrial environments.
Industrial Ethernet
Factory automation
Machine tools
Production lines
Industrial machinery
Automation systems
Control panels
Machine networking
| Specification | Details |
|---|---|
| Product Code | EVC899 |
| Product Type | Connecting Cable with Plug |
| Article Number | ASTAN040MSS0005K04 |
| Cable Length | 5 m |
| Cable Material | PUR |
| Cable Colour | Green |
| Cable Type | Shielded / Halogen-free |
| Cable Standard | PROFINET Type C |
| Conductors | 4 × 0.34 mm² |
| Connector | M12, angled |
| Coding | D |
| Contacts | Gold-plated |
| Housing | TPU, black |
| Locking | Brass, nickel-plated |
| Operating Voltage | 30 V AC / 60 V DC |
| Maximum Current | 4 A |
| Protection | IP65 / IP67 |
| Ambient Temperature | -25 to +90 °C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >3 million |
| Pack Quantity | 1 pc |
