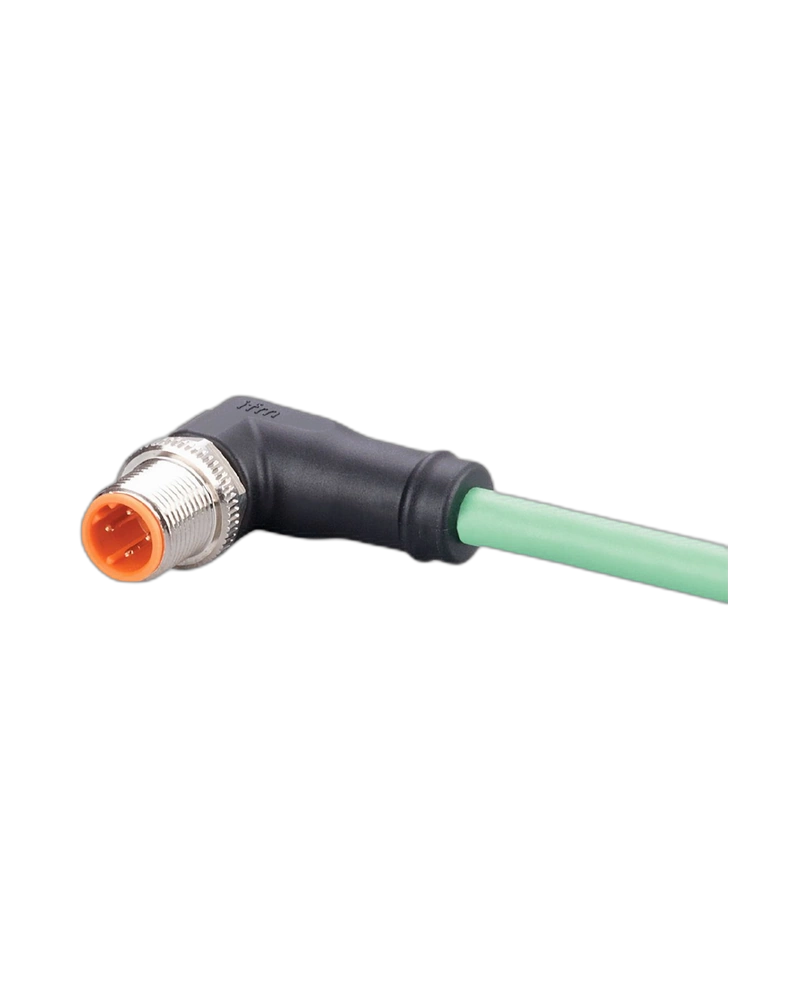

IFM EVC898 connecting cable with plug features a 2 m shielded PUR cable with an angled M12 D-coded connector. It is designed for Industrial Ethernet and factory automation applications requiring reliable connectivity in restricted installation spaces.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC898 provides a practical angled M12 connector configuration for Industrial Ethernet installations where cable routing space is limited.
The 2 m cable provides flexible connectivity for compact machine layouts while avoiding excessive cable length.
The cable is shielded and halogen-free, supporting reliable Industrial Ethernet communication and good electromagnetic compatibility.
The angled M12 D-coded connector features gold-plated contacts and a robust locking mechanism for secure connections.
Angled Connector: Supports cable routing in restricted spaces.
Compact 2 m Length: Suitable for short machine connections.
Industrial Ethernet Ready: Supports CAT5/CAT5e and 100 Mbit/s applications.
Shielded Cable: Helps reduce electromagnetic interference.
Reliable M12 Connection: Gold-plated contacts support stable connectivity.
Industrial Ethernet
Factory automation
Machine tools
Production machinery
Automation panels
Industrial networking
Control systems
Machine communication
| Specification | Details |
|---|---|
| Product Code | EVC898 |
| Product Type | Connecting Cable with Plug |
| Article Number | ASTAN040MSS0002K04 |
| Cable Length | 2 m |
| Cable Material | PUR |
| Cable Colour | Green |
| Cable Diameter | 6.5 mm |
| Cable Type | Shielded / Halogen-free |
| Cable Standard | PROFINET Type C |
| Conductors | 4 × 0.34 mm² |
| Connector | M12, angled |
| Coding | D |
| Contacts | Gold-plated |
| Housing | TPU, black |
| Locking | Brass, nickel-plated |
| Operating Voltage | 30 V AC / 60 V DC |
| Maximum Current | 4 A |
| Protection | IP65 / IP67 |
| Ambient Temperature | -25 to +90 °C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >3 million |
| Pack Quantity | 1 pc |
