IFM EVC896 connecting cable with plug features a 20 m shielded PUR cable and straight M12 D-coded connector. It supports Industrial Ethernet, CAT5/CAT5e and 100 Mbit/s communication for reliable factory automation connectivity.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC896 is designed for Industrial Ethernet applications where a longer cable connection is required between automation components.
The 20 m length provides extended installation reach for production machines, factory automation networks and industrial equipment.
The PUR cable is halogen-free and shielded, helping provide reliable data communication and good electromagnetic compatibility.

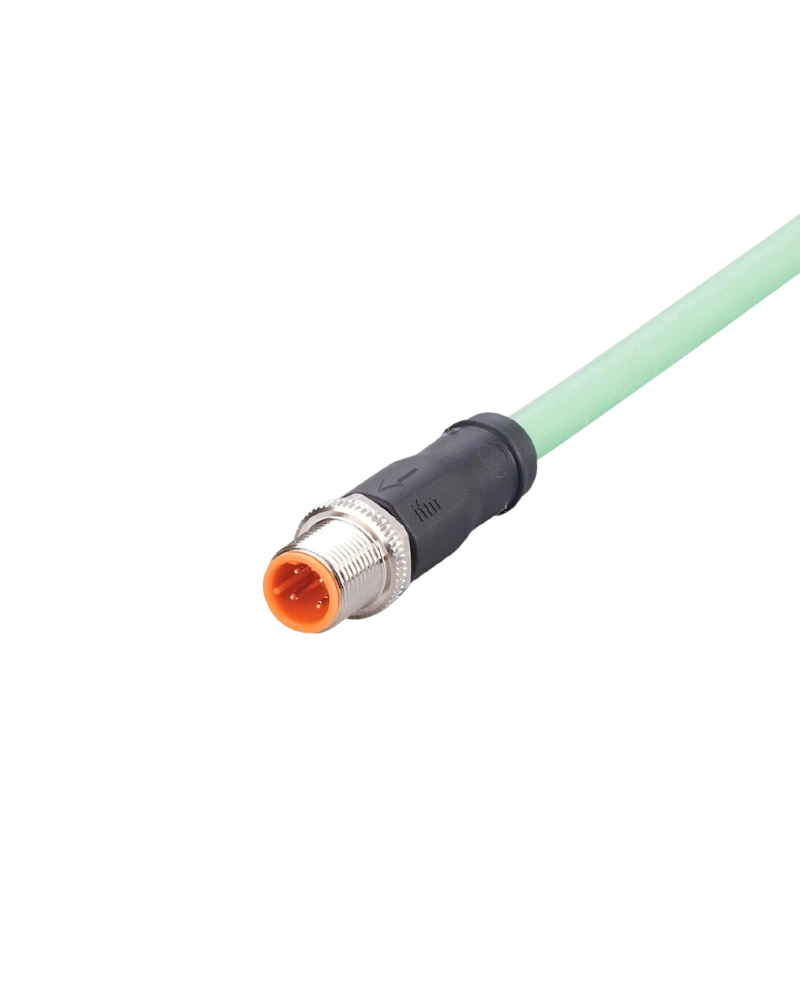

The straight M12 D-coded connector incorporates gold-plated contacts and a robust locking mechanism for dependable industrial connectivity.
Extended Reach: 20 m length supports large installation layouts.
Industrial Ethernet Ready: Supports CAT5/CAT5e and 100 Mbit/s applications.
Shielded Cable: Helps improve electromagnetic compatibility.
Secure Connection: M12 D-coded plug provides stable connectivity.
Dynamic Use: Suitable for drag-chain applications.
Industrial Ethernet
Factory automation
Machine tools
Production machinery
Industrial networking
Machine control
Automation systems
Control panels
| Specification | Details |
|---|---|
| Product Code | EVC896 |
| Product Type | Connecting Cable with Plug |
| Article Number | ASTGN040MSS0020K04 |
| Cable Length | 20 m |
| Cable Material | PUR |
| Cable Colour | Green |
| Cable Diameter | 6.5 mm |
| Cable Type | Shielded / Halogen-free |
| Cable Standard | PROFINET Type C |
| Conductors | 4 × 0.34 mm² |
| Connector | M12, straight |
| Coding | D |
| Contacts | 4, gold-plated |
| Housing | TPU, black |
| Locking | Brass, nickel-plated |
| Operating Voltage | 30 V AC / 60 V DC |
| Maximum Current | 4 A |
| Protection | IP65 / IP67 |
| Ambient Temperature | -25 to +90 °C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >3 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
