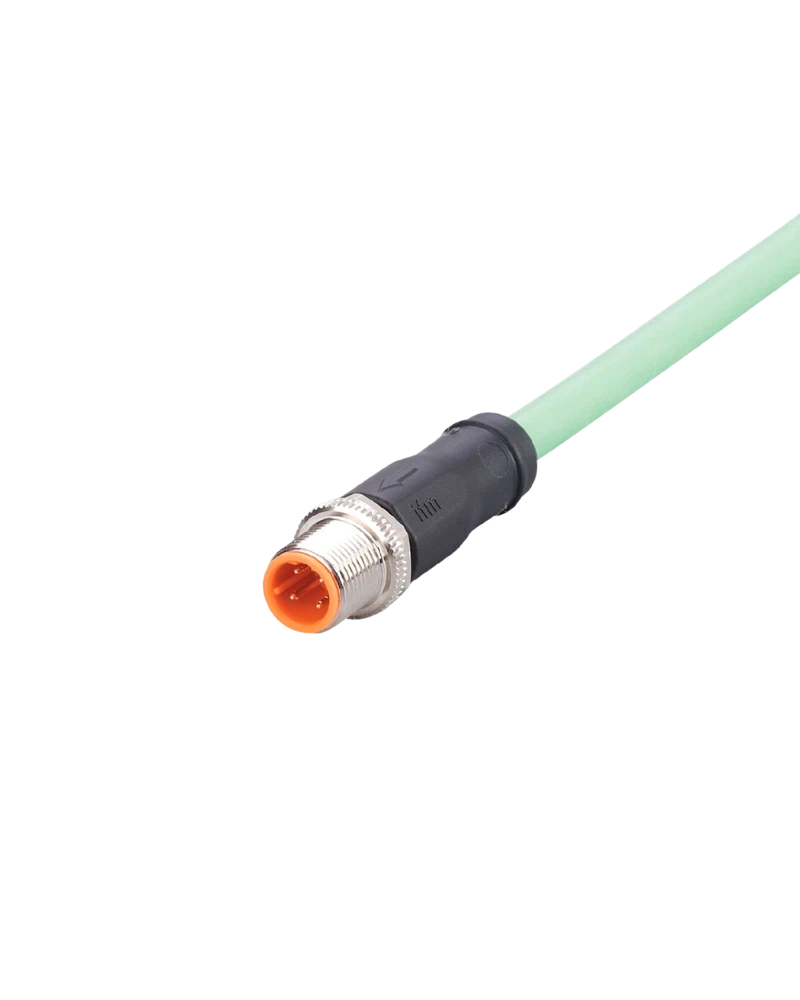

IFM EVC895 connecting cable with plug features a 10 m shielded PUR cable with a straight M12 D-coded connector. It is designed for Industrial Ethernet, CAT5/CAT5e and 100 Mbit/s applications in industrial automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC895 is designed for Industrial Ethernet connections in factory automation, machine tools and industrial networking systems.
Its 10 m cable length allows flexible connection between devices installed at greater distances within industrial machinery or production areas.
The cable is constructed with a shielded, halogen-free PUR sheath and uses PROFINET Type C construction for reliable industrial communication.
The straight M12 D-coded connector features gold-plated contacts and a nickel-plated brass locking mechanism for secure connections.
Long Cable Reach: 10 m length supports larger machine layouts.
Industrial Ethernet Compatibility: Designed for CAT5/CAT5e and 100 Mbit/s communication.
EMC Performance: Shielded construction helps reduce interference.
Robust Connector: M12 D-coded plug provides secure connection.
Flexible Routing: PUR cable supports demanding industrial installations.
Industrial Ethernet
Factory automation
Machine tools
Production lines
Industrial networking
Automation panels
Control systems
Machine communication
| Specification | Details |
|---|---|
| Product Code | EVC895 |
| Product Type | Connecting Cable with Plug |
| Article Number | ASTGN040MSS0010K04 |
| Cable Length | 10 m |
| Cable Material | PUR |
| Cable Colour | Green |
| Cable Diameter | 6.5 mm |
| Cable Type | Shielded / Halogen-free |
| Cable Standard | PROFINET Type C |
| Conductors | 4 × 0.34 mm² |
| Connector | M12, straight |
| Coding | D |
| Contacts | Gold-plated |
| Housing | TPU, black |
| Locking | Brass, nickel-plated |
| Operating Voltage | 30 V AC / 60 V DC |
| Maximum Current | 4 A |
| Protection | IP65 / IP67 |
| Ambient Temperature | -25 to +90 °C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >3 million |
| Pack Quantity | 1 pc |
