IFM EVC892 connection cable is a compact 0.2 m PUR cable with straight M12 connectors for reliable industrial connections. It features gold-plated contacts, high IP protection and drag-chain suitability for demanding automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC892 connection cable is designed for short-distance connections between sensors, actuators and automation components. Its compact 0.2 m construction helps reduce unnecessary cable length in machine installations.

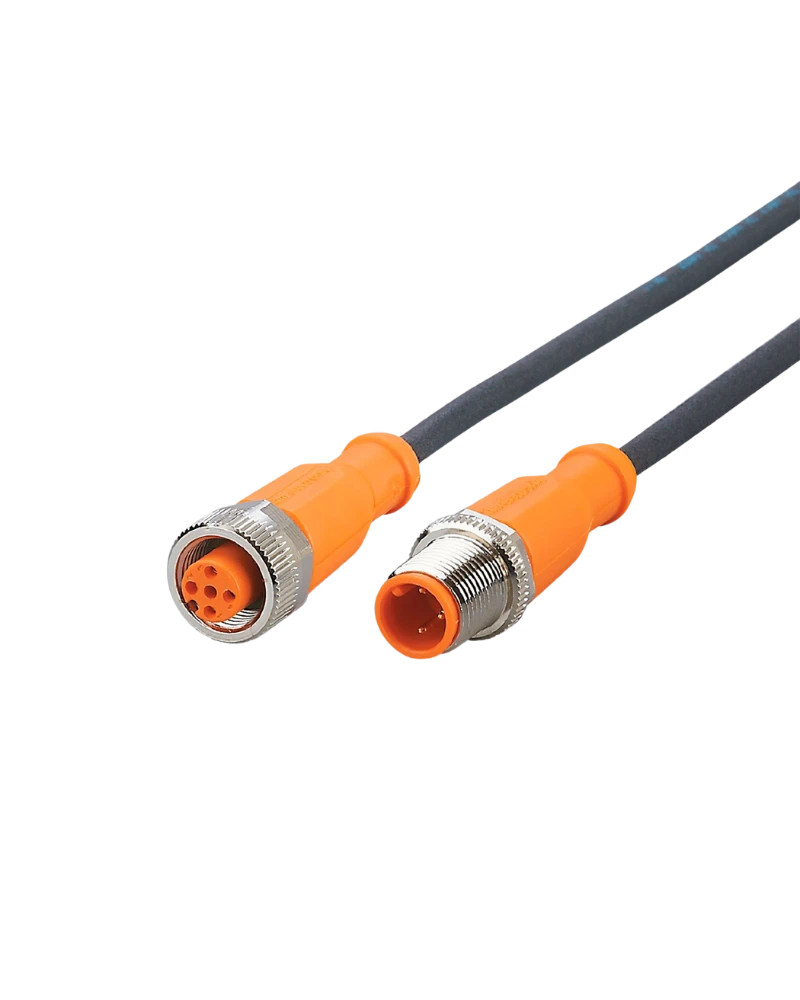

The cable is equipped with straight M12 A-coded connectors and gold-plated contacts. The robust locking system supports secure connections in industrial environments.
The PUR cable is halogen-free and designed for demanding industrial applications. Its flexible construction makes it suitable for installations where reliable cable movement is required.
The EVC892 offers IP65, IP67, IP68 and IP69K protection and is suitable for drag-chain applications.
Compact Design: 0.2 m length is ideal for short-distance connections.
Reliable Contacts: Gold-plated contacts support stable electrical connectivity.
High Protection: IP65 to IP69K protection supports demanding environments.
Flexible Installation: PUR cable supports practical machine routing.
Drag-Chain Suitable: Designed for applications involving repeated cable movement.
Industrial automation
Sensor and actuator connections
Machine tools
Factory automation
Production machinery
Control systems
Machine monitoring equipment
| Specification | Details |
|---|---|
| Product Code | EVC892 |
| Product Type | Connection Cable |
| Article Number | VDOGH040MSS00,2H04STGH040MSS |
| Cable Length | 0.2 m |
| Cable Material | PUR |
| Cable Type | Halogen-free |
| Cable Diameter | 4.3 mm |
| Conductors | 4 × 0.34 mm² |
| Connector 1 | M12, straight |
| Connector 2 | M12, straight |
| Coding | A |
| Contacts | Gold-plated |
| Housing | TPU, orange |
| Sealing | FKM |
| Operating Voltage | <250 V AC / <300 V DC |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
