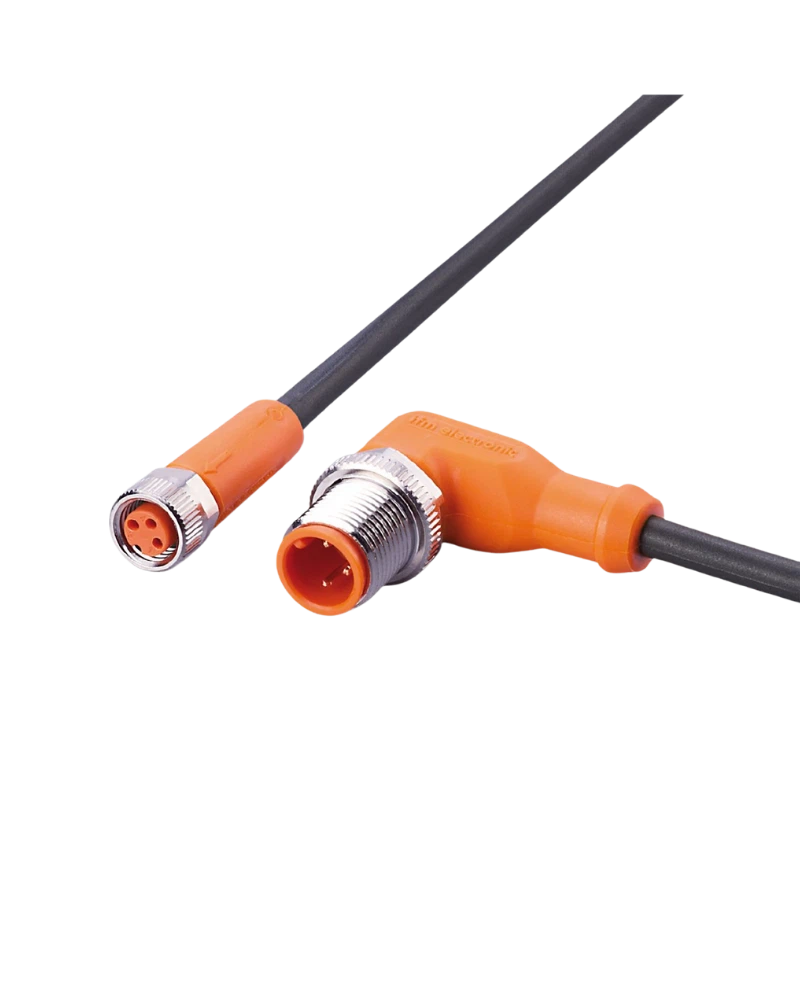

IFM EVC891 connection cable provides a 2 m PUR cable with angled M12 and straight M8 connections for reliable industrial automation. It offers gold-plated contacts, high IP protection and excellent flexibility for demanding applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC891 connection cable provides dependable connectivity between compatible industrial sensors and automation components.
The 2 m cable length is suitable for compact machine layouts where devices are installed relatively close together.
The cable features an angled M12 connector and straight M8 connector, providing practical installation and cable-routing flexibility.
The EVC891 uses PUR cable, TPU connector bodies, FKM sealing and nickel-plated brass locking components. It is resistant to oils and coolants and supports demanding industrial environments.
Compact Installation: 2 m cable length is suitable for short-distance connections.
M12-to-M8 Connectivity: Supports compatible industrial device connections.
Angled M12 Design: Helps improve cable routing.
Oil and Coolant Resistance: Suitable for demanding machine environments.
High Protection: IP65/IP67/IP68/IP69K protection supports harsh conditions.
Industrial automation
Machine tools
Factory automation
Sensor connections
Production machinery
Machine monitoring
Assembly equipment
Control systems
| Specification | Details |
|---|---|
| Product Code | EVC891 |
| Product Type | Connection Cable |
| Article Number | VDOGF030MSS0002H03STAH030MSS |
| Cable Length | 2 m |
| Cable Material | PUR |
| Cable Type | Halogen-free |
| Connector 1 | M12, angled |
| Connector 2 | M8, straight |
| Coding | A |
| Conductors | 3 x 0.34 mm² |
| Contacts | Gold-plated |
| Housing | TPU, orange |
| Sealing | FKM |
| Locking Nut | Brass, nickel-plated |
| Operating Voltage | <50 V AC / <60 V DC |
| Maximum Current | 3 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
