IFM EVC890 connection cable features a 5 m PUR cable with M12 angled and M8 straight connections for reliable industrial automation. It offers gold-plated contacts, high IP protection and drag-chain suitability.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC890 connection cable is designed for reliable connections between compatible industrial sensors and automation devices.
Its 5 m PUR cable provides sufficient reach for machine installations where connected components are positioned at different locations.

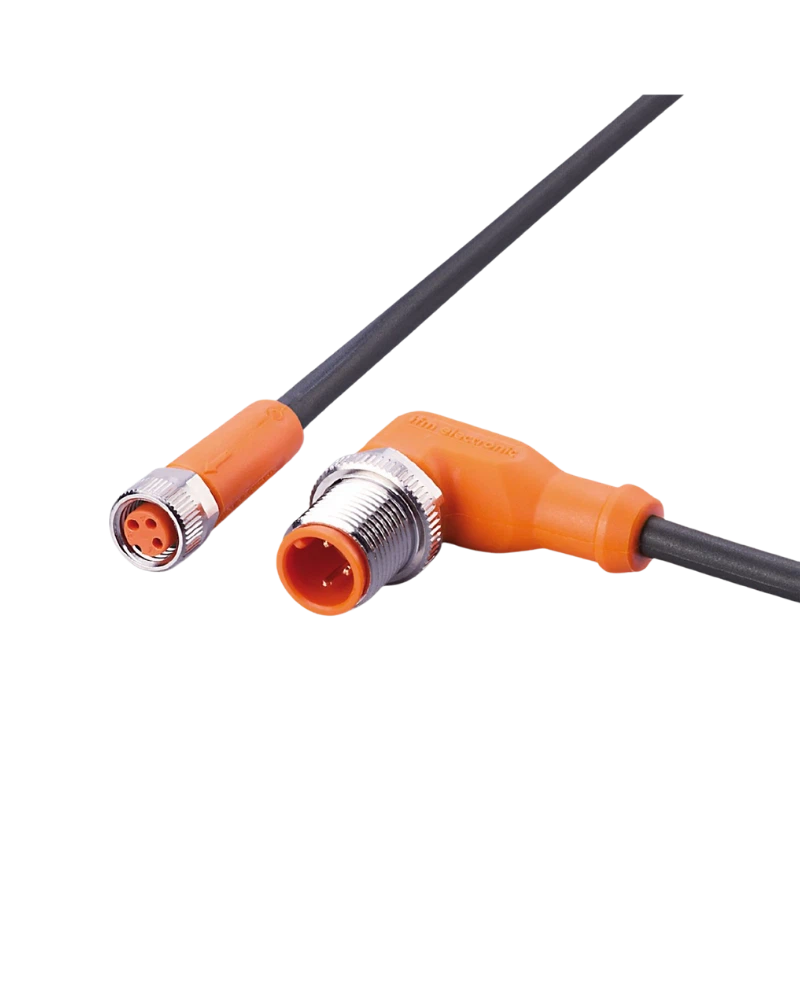

The cable uses an angled M12 connector and straight M8 connector, providing practical connection and routing options for compatible devices.
The EVC890 provides IP65, IP67, IP68 and IP69K protection. It is also suitable for applications requiring repeated cable movement.
Extended Installation Reach: 5 m cable supports flexible machine layouts.
M12-to-M8 Connectivity: Provides convenient connection between compatible devices.
Angled Connector: Supports easier cable routing.
High Protection: Suitable for harsh industrial environments.
Dynamic Performance: Suitable for drag-chain applications.
Industrial automation
Sensor connections
Machine tools
Factory automation
Production machinery
Machine control
Assembly equipment
| Specification | Details |
|---|---|
| Product Code | EVC890 |
| Product Type | Connection Cable |
| Article Number | VDOGF030MSS0005H03STAH030MSS |
| Cable Length | 5 m |
| Cable Material | PUR |
| Cable Type | Halogen-free |
| Connector 1 | M12, angled |
| Connector 2 | M8, straight |
| Coding | A |
| Conductors | 3 x 0.34 mm² |
| Contacts | Gold-plated |
| Housing | TPU, orange |
| Sealing | FKM |
| Locking Nut | Brass, nickel-plated |
| Operating Voltage | <50 V AC / <60 V DC |
| Maximum Current | 3 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
