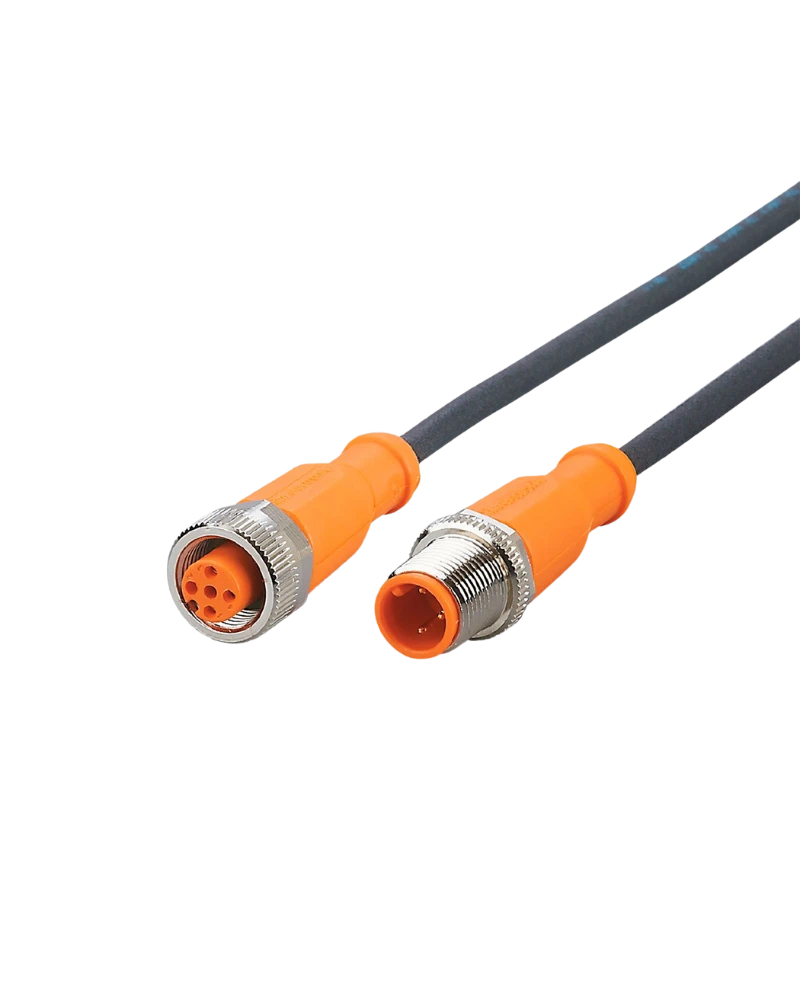

IFM EVC887 connection cable features a 1.5 m PUR cable with M12 connections for reliable industrial automation. Gold-plated contacts, high IP protection and drag-chain suitability provide dependable performance in demanding applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC887 connection cable is designed for reliable connections between industrial sensors, actuators and automation equipment.
The 1.5 m cable provides convenient routing for machine installations where a compact but flexible cable length is required.
The cable uses straight A-coded M12 connections with gold-plated contacts and nickel-plated brass locking components.
The EVC887 provides IP65, IP67, IP68 and IP69K protection and is suitable for demanding industrial environments. It also supports drag-chain applications.
Practical Cable Length: 1.5 m supports compact machine installations.
Reliable Connectivity: Gold-plated contacts support stable signal transmission.
High Protection: Suitable for harsh industrial conditions.
Dynamic Performance: Designed for drag-chain applications.
Durable Construction: PUR cable and TPU connectors support industrial use.
Industrial automation
Factory automation
Machine tools
Sensor connections
Production equipment
Assembly machinery
Control systems
| Specification | Details |
|---|---|
| Product Code | EVC887 |
| Product Type | Connection Cable |
| Article Number | VDOGH050MSS01,5H05STGH050MSS |
| Cable Length | 1.5 m |
| Cable Material | PUR |
| Cable Type | Halogen-free |
| Conductors | 5 x 0.34 mm² |
| Connector | M12 |
| Connector Design | Straight |
| Coding | A |
| Contacts | Gold-plated |
| Housing | TPU |
| Locking Nut | Brass, nickel-plated |
| Sealing | FKM |
| Operating Voltage | <60 V AC/DC |
| Maximum Current | 4 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
