IFM EVC886 connection cable features a 1.2 m PUR cable with M12 connections for reliable industrial automation. It provides gold-plated contacts, high IP protection and drag-chain suitability for demanding machine applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

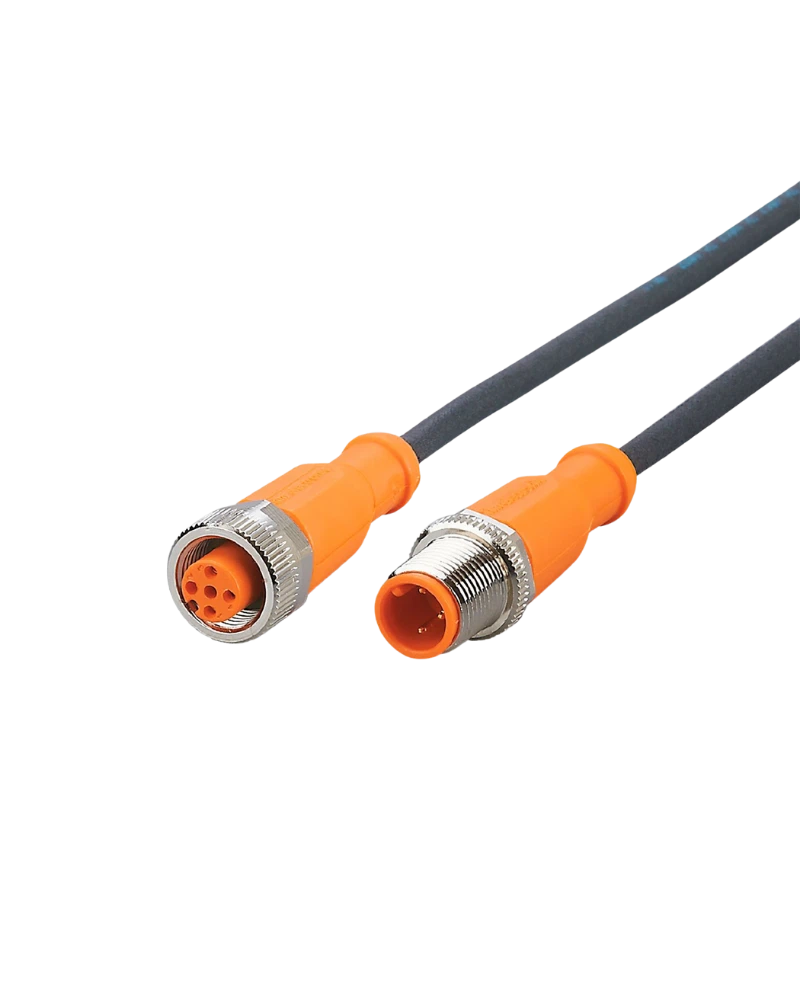

The IFM EVC886 connection cable is designed for reliable electrical connectivity between industrial sensors, actuators and automation devices.
The 1.2 m cable length makes the EVC886 suitable for compact machine installations where components are positioned relatively close together.
The cable uses straight M12 connectors with A coding, gold-plated contacts and secure nickel-plated brass locking components.
The EVC886 supports drag-chain applications and more than 5 million bending cycles. Its protection rating extends through IP65, IP67, IP68 and IP69K.
Compact Cable Length: 1.2 m is suitable for short machine connections.
Reliable Signal Transmission: Gold-plated contacts support dependable connectivity.
High Protection: IP65 to IP69K ratings support harsh environments.
Dynamic Cable Use: Suitable for drag-chain applications.
Durable Construction: Designed for industrial automation systems.
Factory automation
Industrial sensors
Machine tools
Production machinery
Control systems
Sensor-actuator connections
Automation equipment
| Specification | Details |
|---|---|
| Product Code | EVC886 |
| Product Type | Connection Cable |
| Article Number | VDOGH050MSS01,2H05STGH050MSS |
| Cable Length | 1.2 m |
| Cable Material | PUR |
| Cable Type | Halogen-free |
| Conductors | 5 x 0.34 mm² |
| Connector | M12 |
| Connector Design | Straight |
| Coding | A |
| Contacts | Gold-plated |
| Housing | TPU |
| Locking Nut | Brass, nickel-plated |
| Sealing | FKM |
| Operating Voltage | <60 V AC/DC |
| Maximum Current | 4 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
