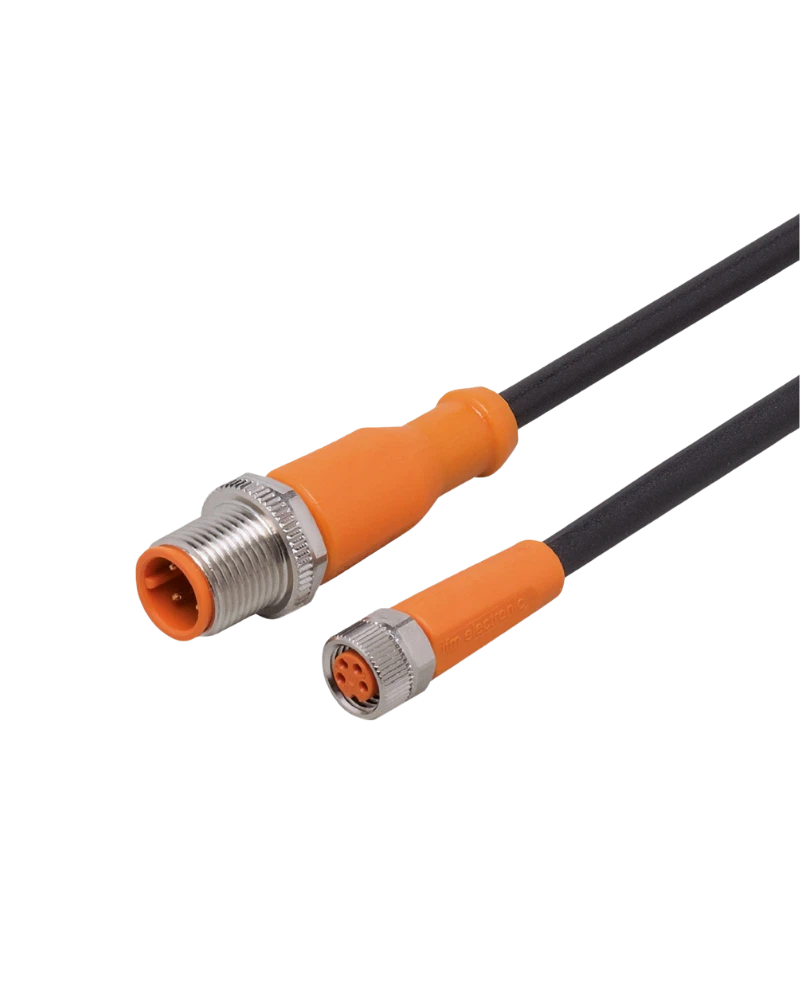

IFM EVC868 connection cable is a 3 m PUR industrial cable designed for reliable sensor and automation connectivity. It features M12 connections, gold-plated contacts, high IP protection and drag-chain suitability.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC868 connection cable provides a dependable connection between sensors, actuators and industrial automation equipment.
Its 3 m PUR cable offers practical installation flexibility while providing durability required for industrial environments.
The cable uses M12 connectors with gold-plated contacts and nickel-plated brass locking components for reliable electrical and mechanical connection.
The EVC868 provides IP65, IP67, IP68 and IP69K protection. It is also designed for repeated movement and drag-chain applications.
Reliable Connectivity: Supports stable sensor and actuator connections.
Flexible Installation: 3 m cable length provides practical routing flexibility.
High IP Protection: Suitable for harsh industrial environments.
Gold-Plated Contacts: Supports dependable electrical transmission.
Dynamic Performance: Suitable for drag-chain applications.
Industrial automation
Machine tools
Factory automation
Sensor connections
Production machinery
Assembly systems
Machine control equipment
| Specification | Details |
|---|---|
| Product Code | EVC868 |
| Product Type | Connection Cable |
| Article Number | VDOGF040MSS0003H04STGH040MSS |
| Cable Length | 3 m |
| Cable Material | PUR |
| Cable Type | Halogen-free |
| Connector | M12 |
| Connector Design | Straight |
| Coding | A |
| Conductors | 4 x 0.34 mm² |
| Contacts | Gold-plated |
| Housing | TPU |
| Locking Nut | Brass, nickel-plated |
| Sealing | FKM |
| Operating Voltage | <50 V AC / <60 V DC |
| Maximum Current | 3 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
