IFM EVC856 connecting cable with socket features a 3 m shielded PUR cable and angled M12 socket for reliable industrial connections. It provides gold-plated contacts, high protection and flexible performance for demanding automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC856 connecting cable with socket is designed for dependable electrical connections between industrial sensors and automation equipment.
The cable uses a 3 m shielded PUR cable with 4 x 0.34 mm² conductors. The shielded construction helps improve signal reliability in electrically noisy industrial environments.

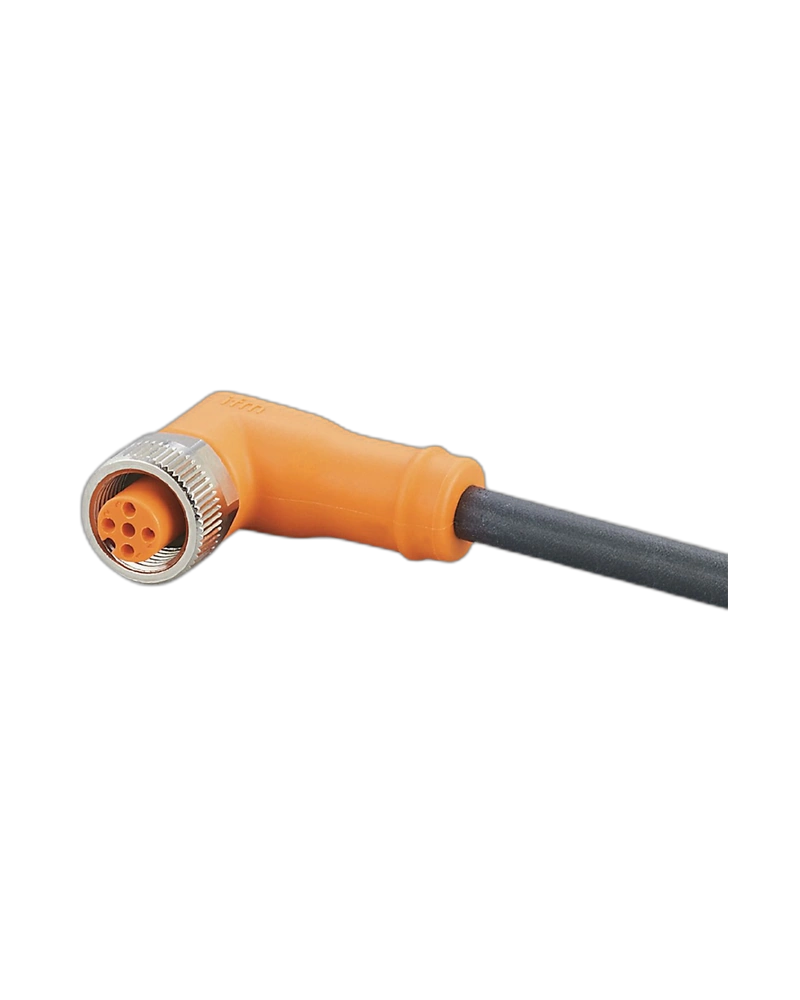

The EVC856 features an angled A-coded M12 socket, making it suitable for installations where cable routing space is limited. The socket uses gold-plated contacts and FKM sealing.
The cable supports drag-chain applications and provides a minimum bending radius of 10 times the cable diameter, with ≥2 million bending cycles for flexible use.
Angled Socket Design: Helps simplify cable routing in confined spaces.
Shielded Cable: Supports reliable signal transmission.
Gold-Plated Contacts: Provides dependable electrical connectivity.
Durable PUR Construction: Suitable for industrial environments.
Dynamic Application Support: Suitable for drag-chain applications.
Industrial automation
Machine control systems
Sensor connections
Factory automation
Production machinery
Machine tools
Signal transmission systems
| Specification | Details |
|---|---|
| Product Code | EVC856 |
| Product Type | Connecting Cable with Socket |
| Article Number | ADOAH040MSS0003K04 |
| Cable Length | 3 m |
| Cable Material | PUR |
| Cable Type | Halogen-free, shielded |
| Cable Diameter | Ø4.9 mm |
| Conductors | 4 x 0.34 mm² |
| Connector | M12 socket |
| Connector Design | Angled |
| Coding | A |
| Housing | TPU, orange |
| Contacts | Gold-plated |
| Sealing | FKM |
| Locking Nut | Brass, nickel-plated |
| Shield Connection | Screen connected |
| Operating Voltage | <50 V AC / <60 V DC |
| Protection | IP65 / IP67 |
| Ambient Temperature | -25 to +90 °C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | ≥2 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
