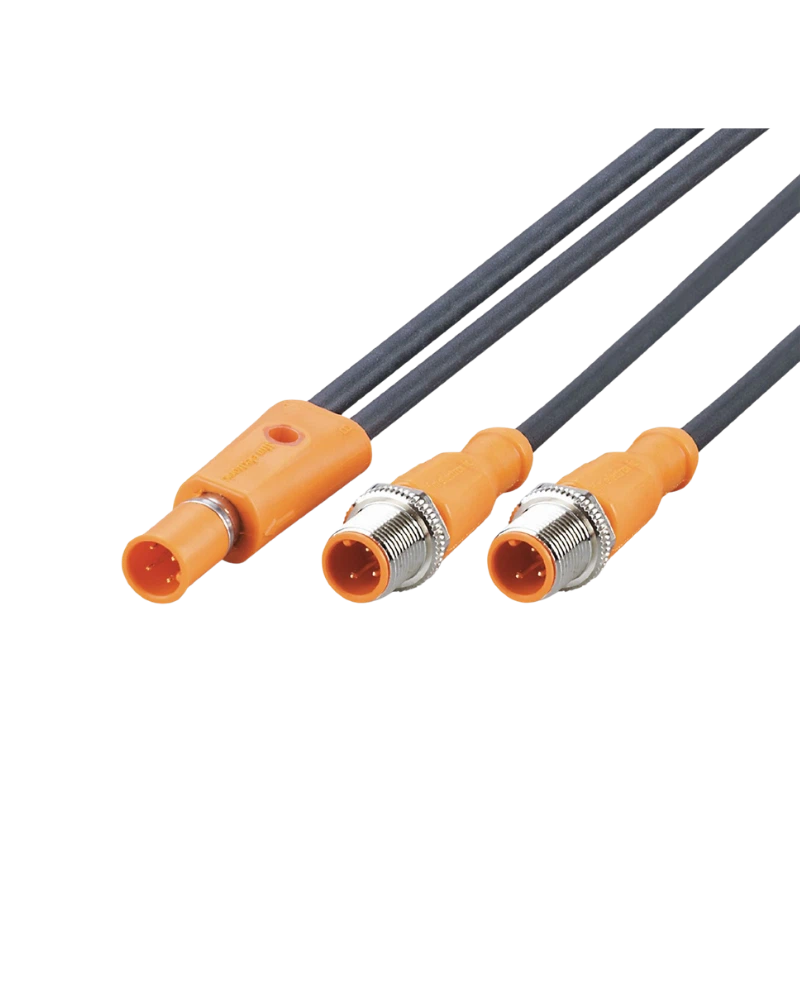

IFM EVC844 Y connection cable is designed for reliable signal distribution in industrial automation systems. Its PUR construction, gold-plated M12 contacts and high IP protection provide durable performance in demanding applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC844 provides a practical Y connection solution for industrial automation and sensor systems. Its configuration helps connect multiple devices within compact machine installations.
The cable uses a PUR construction and is designed for flexible industrial installation. The model is available in configurable cable-length versions as indicated by its part designation.
The cable incorporates straight A-coded M12 connections with gold-plated contacts, TPU housings and nickel-plated brass locking components.
The EVC844 supports drag-chain applications, with a minimum bending radius of 10 times the cable diameter and more than 5 million bending cycles.
Efficient Y-Split Connection: Simplifies multi-device signal connections.
Reliable Electrical Contact: Gold-plated contacts support stable transmission.
High Protection: IP65/IP67/IP68/IP69K protection supports industrial environments.
Excellent Flexibility: Suitable for dynamic cable routing.
Durable Construction: Designed for long-term industrial use.
Industrial automation
Sensor networks
Machine tools
Factory automation
Production machinery
Control systems
Moving machinery
| Specification | Details |
|---|---|
| Product Code | EVC844 |
| Product Type | Y Connection Cable |
| Article Number | YSTGH020MSSXXXXH02STGH040--S |
| Cable Material | PUR |
| Connector | M12 |
| Connector Design | Straight |
| Coding | A |
| Conductors | 2 x 0.34 mm² |
| Contacts | Gold-plated |
| Housing | TPU / TPU |
| Locking Nut | Brass, nickel-plated |
| Sealing | Viton / FKM |
| Operating Voltage | 24 V DC |
| Maximum Current | 4 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
