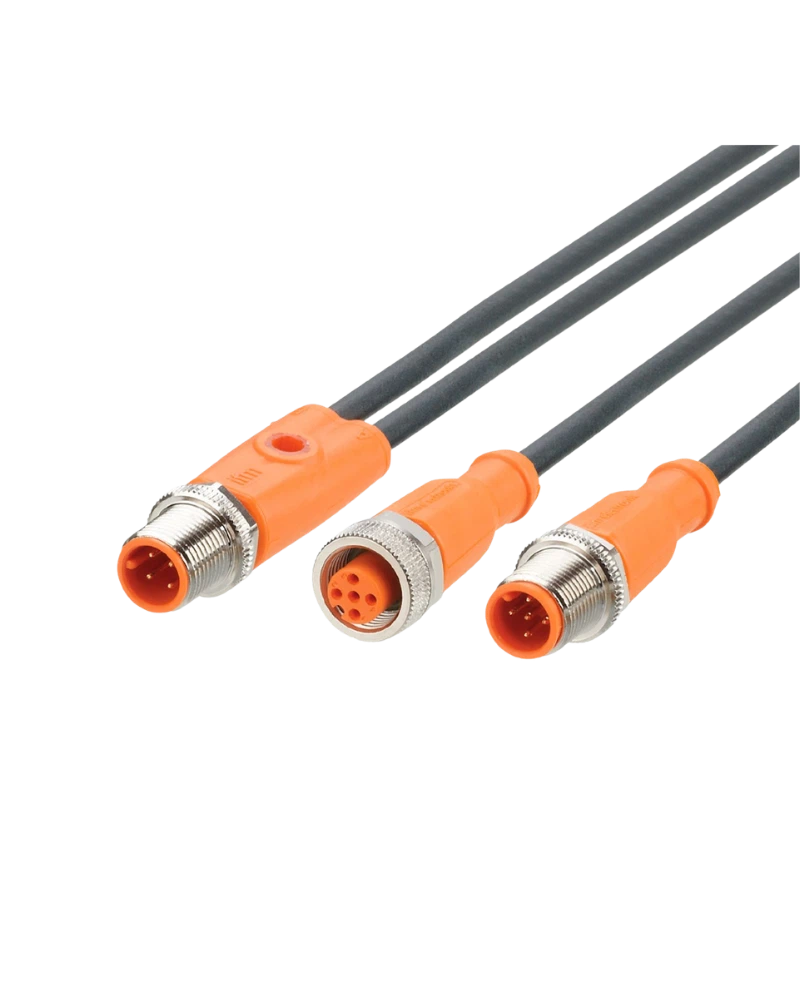

IFM EVC843 Y connection cable provides a reliable multi-device connection using M12 connectors and a 2 m PUR cable. It is designed for industrial automation, offering gold-plated contacts, high IP protection and drag-chain suitability.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC843 Y connection cable is designed to simplify connections between multiple automation components. Its Y configuration helps distribute signals within industrial sensor and actuator systems.
The cable uses a 2 m halogen-free PUR cable with 5 x 0.34 mm² conductors. PUR construction supports reliable operation in industrial environments.
The cable incorporates straight A-coded M12 connections with gold-plated contacts and nickel-plated brass locking components.
The EVC843 offers IP65, IP67, IP68 and IP69K protection. It is also suitable for drag-chain applications and supports more than 5 million bending cycles.
Efficient Signal Distribution: Y configuration simplifies multi-device connections.
Reliable M12 Connectivity: Supports secure industrial connections.
High Environmental Protection: Suitable for demanding factory environments.
Flexible Cable Movement: Drag-chain suitability supports dynamic machinery.
Durable Construction: PUR and TPU materials provide industrial durability.
Sensor distribution systems
Factory automation
Machine tools
Industrial control systems
Sensor-actuator networks
Production machinery
Automation equipment
| Specification | Details |
|---|---|
| Product Code | EVC843 |
| Product Type | Y Connection Cable |
| Article Number | YSDGH050MSS0002H05STGH040MSS |
| Cable Length | 2 m |
| Cable Material | PUR |
| Cable Type | Halogen-free |
| Connector Type | M12 |
| Connector Design | Straight |
| Coding | A |
| Conductors | 5 x 0.34 mm² |
| Contacts | Gold-plated |
| Housing | TPU |
| Locking Nut | Brass, nickel-plated |
| Operating Voltage | 24 V DC |
| Maximum Current | 3 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
