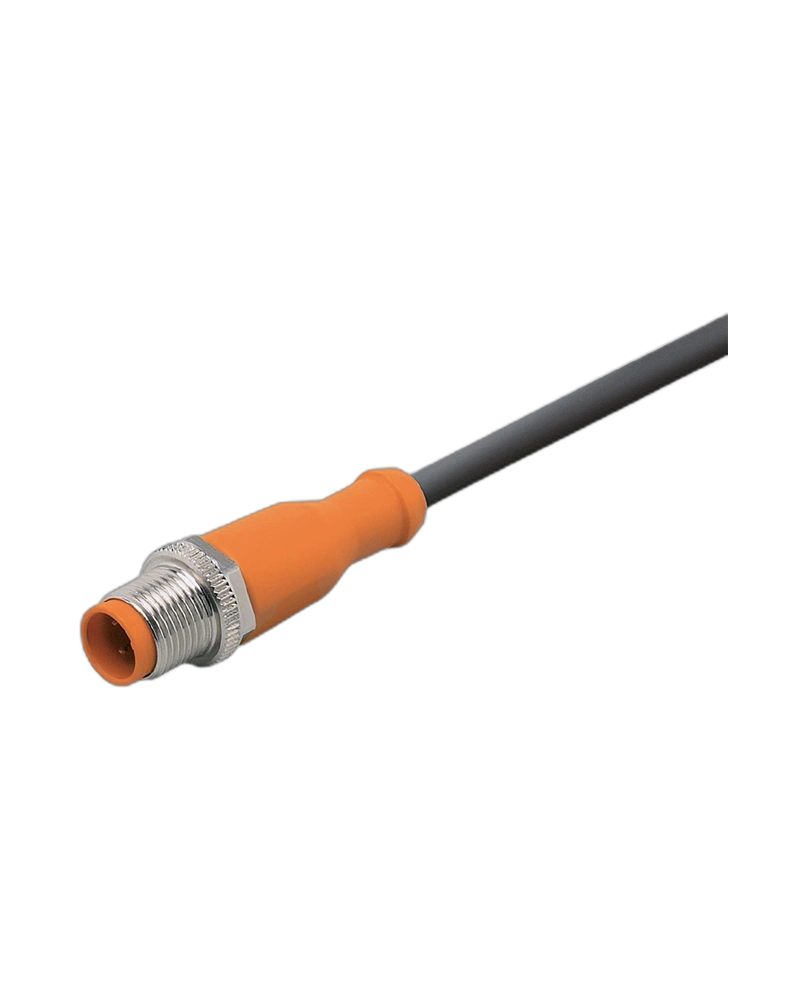

IFM EVC842 connecting cable with plug features a 6 m halogen-free PUR cable and straight A-coded M12 connector. Designed for industrial automation, it provides high IP protection, reliable connectivity and excellent flexibility.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC842 provides a 6 m cable length, making it suitable for installations where additional distance between automation components is required.
The cable is made from black, halogen-free PUR with 3 x 0.34 mm² conductors. This construction supports reliable operation in industrial environments.
The straight A-coded M12 plug incorporates gold-plated contacts and a nickel-plated brass locking nut for secure electrical and mechanical connection.
The EVC842 is suitable for drag-chain applications and supports more than 5 million bending cycles, making it appropriate for machinery involving repeated cable movement.
Extended Installation Range: 6 m cable length provides greater routing flexibility.
Reliable Signal Transmission: Gold-plated contacts support dependable electrical performance.
High Environmental Protection: IP65 to IP69K ratings support demanding applications.
Dynamic Movement Support: Designed for drag-chain use.
Wide Temperature Range: Suitable for operation from -25 to +90 °C.
Factory automation
Industrial sensors
Machine tools
Production machinery
Assembly systems
Control equipment
Moving automation machinery
| Specification | Details |
|---|---|
| Product Code | EVC842 |
| Product Type | Connecting Cable with Plug |
| Article Number | ASTGH030MSS0006H03 |
| Cable Length | 6 m |
| Cable Material | PUR |
| Cable Type | Halogen-free |
| Connector | M12 plug |
| Connector Design | Straight |
| Coding | A |
| Conductors | 3 x 0.34 mm² |
| Cable Diameter | Ø4.3 mm |
| Contact Material | Gold-plated |
| Housing | TPU |
| Locking Nut | Brass, nickel-plated |
| Operating Voltage | <250 V AC / <300 V DC |
| Maximum Current | 4 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Drag Chain Suitability | Yes |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Pack Quantity | 1 pc |
