IFM EVC841 connecting cable with plug features a 4 m PUR cable and straight M12 connector for reliable industrial automation connections. It provides high protection, gold-plated contacts and durable performance in demanding environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

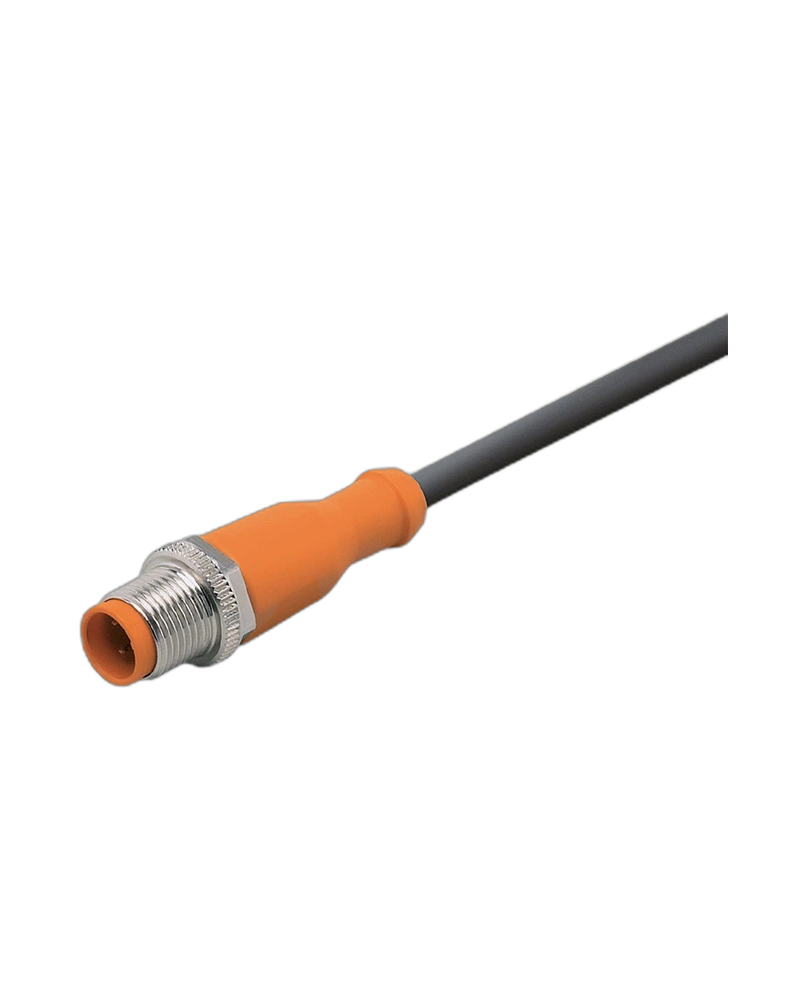

The IFM EVC841 connecting cable with plug is designed for reliable electrical connections between sensors, actuators and industrial automation equipment. Its M12 connector provides a secure connection for machine and factory automation systems.
The cable uses a 4 m halogen-free PUR cable with 3 x 0.34 mm² conductors. The robust cable construction is suitable for industrial applications and provides flexibility during installation.
The cable features a straight A-coded M12 plug with gold-plated contacts. The nickel-plated brass locking nut provides secure mechanical fastening and reliable connection stability.
The EVC841 provides IP65, IP67, IP68 and IP69K protection and can operate from -25 to +90 °C, making it suitable for demanding industrial environments.
Reliable Connectivity: Provides stable electrical connection for automation devices.
Compact M12 Design: Suitable for industrial sensors and machine components.
Durable PUR Cable: Supports reliable performance in demanding environments.
High Protection: IP65/IP67/IP68/IP69K protection helps resist dust and moisture.
Long Flexing Life: Suitable for drag-chain applications with more than 5 million bending cycles.
Industrial automation systems
Factory automation equipment
Sensor and actuator connections
Machine control systems
Production machinery
Machine tools
Assembly equipment
| Specification | Details |
|---|---|
| Product Code | EVC841 |
| Product Type | Connecting Cable with Plug |
| Article Number | ASTGH030MSS0004H03 |
| Cable Length | 4 m |
| Cable Material | PUR |
| Cable Type | Halogen-free |
| Connector | M12 plug |
| Connector Design | Straight |
| Coding | A |
| Conductors | 3 x 0.34 mm² |
| Contact Material | Gold-plated |
| Housing Material | TPU |
| Locking Nut | Brass, nickel-plated |
| Operating Voltage | <250 V AC / <300 V DC |
| Maximum Current | 4 A |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Pack Quantity | 1 pc |
