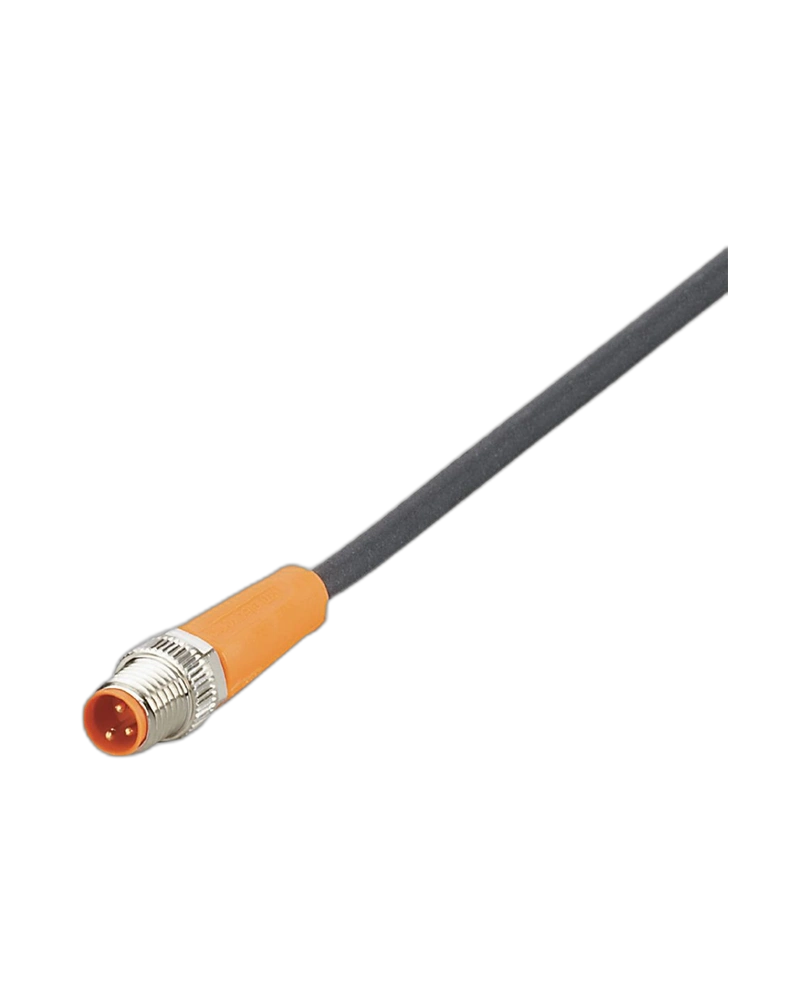

IFM EVC839 connecting cable with plug features a 10 m PUR cable and M8 straight connector for industrial automation. It offers high IP protection, gold-plated contacts, halogen-free construction and reliable performance.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC839 provides a 10 m connection cable for industrial systems where longer cable routing is required.
The cable uses a straight A-coded M8 connector with gold-plated contacts and nickel-plated brass locking components.
The 10 m cable is made from halogen-free PUR and is designed for industrial applications involving oils and coolants.
IP65, IP67, IP68 and IP69K protection ratings help protect the connection in demanding industrial environments.
Long Cable Length: 10 m cable supports extended machine installations.
Reliable Signal Transmission: Gold-plated contacts support stable electrical connectivity.
Industrial Protection: High IP protection helps withstand demanding environmental conditions.
Oil and Coolant Suitability: Designed for industrial applications involving oils and coolants.
Flexible Installation: Drag-chain suitability supports moving applications.
Industrial automation
Machine tools
Sensor connections
Factory automation
Production lines
Moving machinery
Machine control systems
Industrial monitoring equipment
| Specification | Details |
|---|---|
| Product Code | EVC839 |
| Product Type | Connecting Cable with Plug |
| Part Number | ASTGF030MSS0010H03 |
| Cable Length | 10 m |
| Cable Material | PUR |
| Cable Type | Halogen-free |
| Connector | M8 |
| Connector Design | Straight |
| Coding | A |
| Conductors | 3 x 0.25 mm² |
| Housing | TPU / Urethane |
| Contacts | Gold-plated |
| Locking Nut | Brass, nickel-plated |
| Operating Voltage | <50 V AC / <60 V DC |
| Protection Class | III |
| Maximum Current | 3 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Applications | Industrial applications, oils and coolants |
| Pack Quantity | 1 pc |
