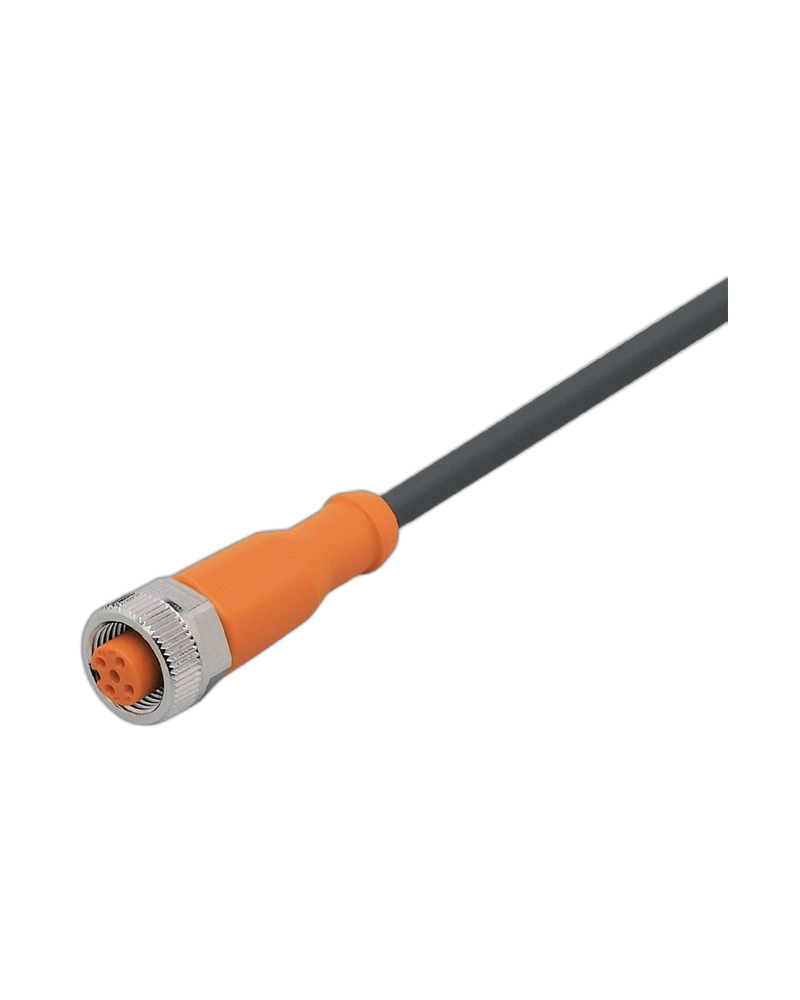

IFM EVC838 connecting cable with socket provides a 6 m PUR cable and straight M12 socket for industrial automation. It combines high IP protection, gold-plated contacts, durable materials and flexible cable performance.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EVC838 provides a dependable socket connection for industrial sensors, actuators and automation components.
Its 6 m PUR cable provides extended installation flexibility while maintaining robust industrial performance.
The straight A-coded M12 socket features gold-plated contacts, FKM sealing and nickel-plated brass locking hardware.
The cable supports IP65, IP67, IP68 and IP69K protection and is suitable for drag-chain applications with more than 5 million bending cycles.
Extended Cable Reach: 6 m length provides flexible installation.
Reliable Socket Connection: M12 socket provides secure industrial connectivity.
High Environmental Protection: Multiple IP ratings support demanding environments.
Excellent Flexibility: Suitable for repeated cable movement.
Durable Construction: PUR, TPU and FKM materials support industrial reliability.
Factory automation
Industrial sensors
Machine control systems
Production machinery
Assembly equipment
Moving automation systems
Industrial monitoring
| Specification | Details |
|---|---|
| Product Code | EVC838 |
| Product Type | Connecting Cable with Socket |
| Part Number | ADOGH040MSS0006H04 |
| Cable Length | 6 m |
| Cable Material | PUR |
| Connector | M12 socket |
| Connector Design | Straight |
| Coding | A |
| Conductors | 4 x 0.34 mm² |
| Cable Diameter | Ø4.3 mm |
| Housing | TPU / Urethane |
| Sealing | FKM |
| Contacts | Gold-plated |
| Locking | Brass, nickel-plated |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
