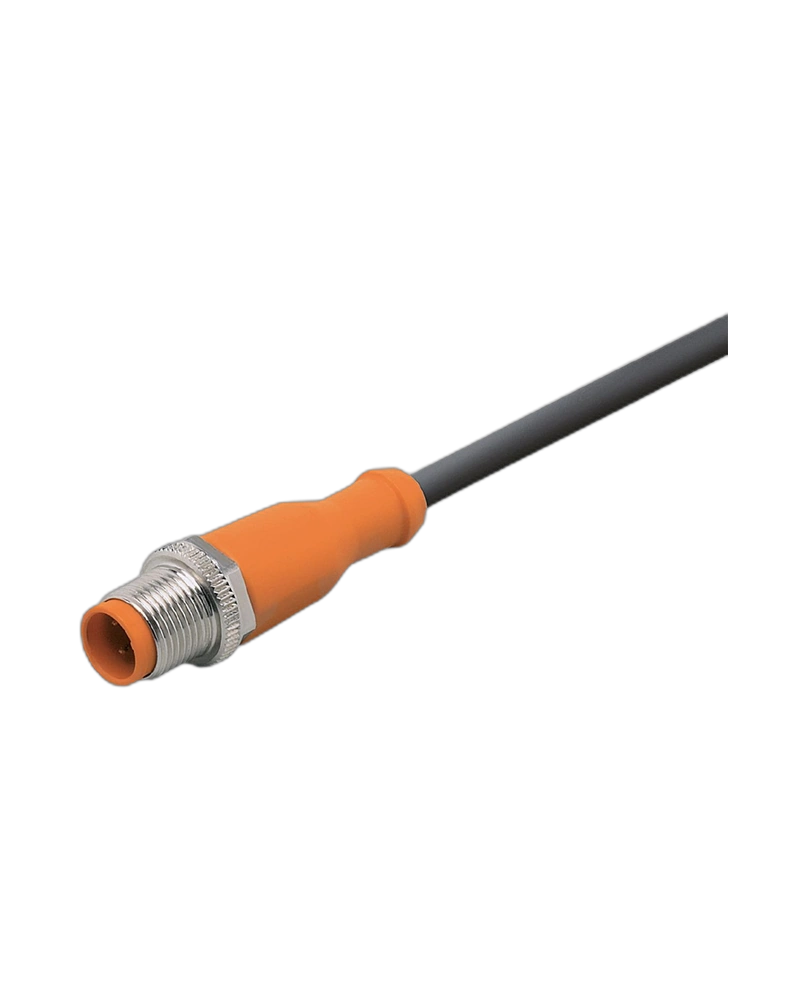

IFM EVC836 connecting cable with plug provides a 6 m PUR cable and straight M12 connection for industrial automation. Its robust construction, gold-plated contacts and high IP protection support dependable operation in demanding environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EVC836 is designed for reliable connections between sensors, actuators and automation devices.
The 6 m halogen-free PUR cable provides extended installation flexibility and durability.
The cable uses a straight A-coded M12 plug with gold-plated contacts and nickel-plated brass locking hardware.
The cable supports drag-chain use, with a minimum bending radius of 10 times the cable diameter and more than 5 million bending cycles.
Extended Reach: 6 m cable supports flexible machine layouts.
Reliable Connectivity: Gold-plated contacts help maintain dependable signal transmission.
Dynamic Application Support: Designed for drag-chain applications.
High Protection: IP65/IP67/IP68/IP69K protection supports demanding environments.
Secure Connection: M12 locking mechanism provides reliable mechanical fastening.
Industrial automation
Machine tools
Sensor-actuator connections
Production machinery
Assembly equipment
Robotic and moving machinery
Factory automation
| Specification | Details |
|---|---|
| Product Code | EVC836 |
| Product Type | Connecting Cable with Plug |
| Part Number | ASTGH040MSS0006H04 |
| Cable Length | 6 m |
| Cable Material | PUR |
| Connector | M12 |
| Connector Design | Straight |
| Coding | A |
| Conductors | 4 x 0.34 mm² |
| Housing | TPU / Urethane |
| Contacts | Gold-plated |
| Locking | Brass, nickel-plated |
| Operating Voltage | <250 V AC / <300 V DC |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Pack Quantity | 1 pc |
