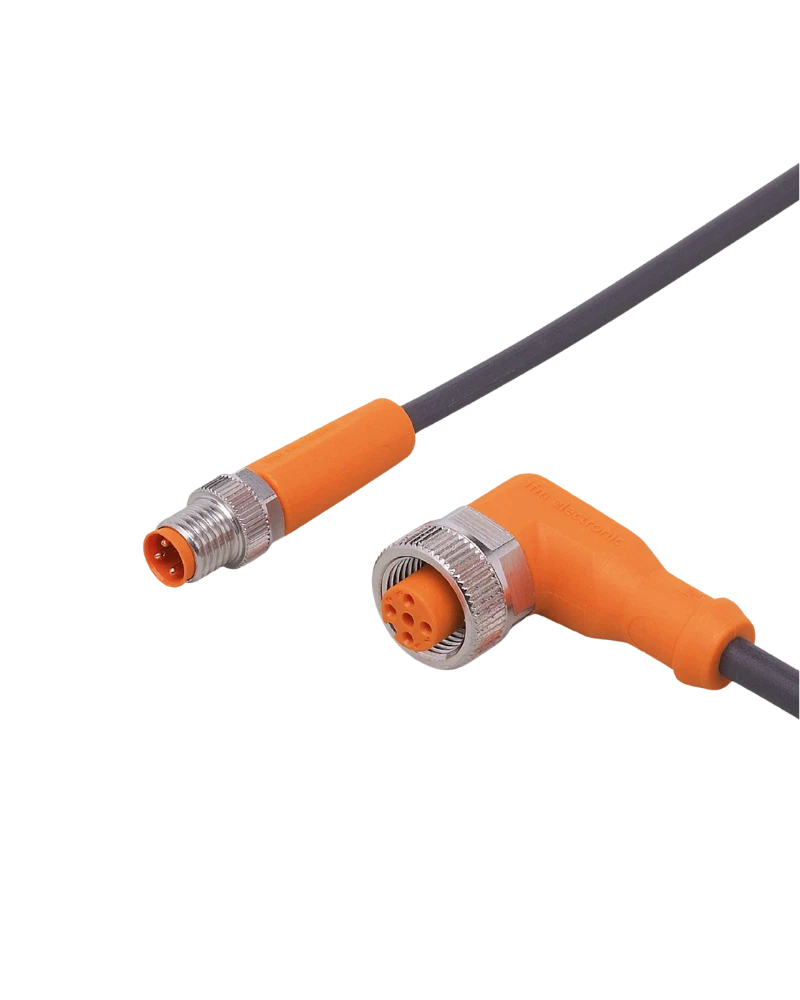

IFM EVC834 connection cable features an 8 m PUR cable and reliable industrial connectors for sensor and automation applications. It provides high environmental protection, durable construction, gold-plated contacts and flexible installation capability.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC834 offers an 8 m cable length for automation installations where additional cable reach is required.
The halogen-free PUR cable contains 3 x 0.34 mm² conductors, providing a robust solution for industrial signal connections.
The cable uses an M8 straight connection and an M12 angled connection, with gold-plated contacts and nickel-plated brass locking components.
Its IP65, IP67, IP68 and IP69K protection ratings help the cable operate reliably in challenging industrial environments.
Extended Cable Length: 8 m length provides greater installation flexibility.
Reliable Electrical Connection: Gold-plated contacts support consistent signal transmission.
Strong Environmental Protection: High IP ratings help protect against dust and moisture.
Durable Construction: PUR and TPU materials provide industrial-grade durability.
Flexible Installation: Suitable for drag-chain applications.
Industrial automation
Machine control systems
Sensor connections
Production machinery
Assembly lines
Machine-tool systems
Industrial monitoring
| Specification | Details |
|---|---|
| Product Code | EVC834 |
| Product Type | Connection Cable |
| Part Number | VDOAH030MSS0008H03STGF030MSS |
| Cable Length | 8 m |
| Cable Material | PUR |
| Cable Type | Halogen-free |
| Connector 1 | M8, straight |
| Connector 2 | M12, angled |
| Coding | A |
| Conductors | 3 x 0.34 mm² |
| Housing | TPU / Urethane |
| Sealing | FKM |
| Contacts | Gold-plated |
| Locking Nut | Brass, nickel-plated |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Pack Quantity | 1 pc |
