The IFM EVC829 is a 4 m connection cable designed to connect M8 and M12 industrial automation components. It features an M8 straight plug and M12 straight socket with gold-plated contacts. Its robust PUR construction, FKM sealing and high IP protection make it suitable for harsh industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Introduction
The EVC829 provides a practical connection solution between automation components using different M8 and M12 interfaces. It is suitable for industrial sensor, actuator and machine-control applications.
Connector Design

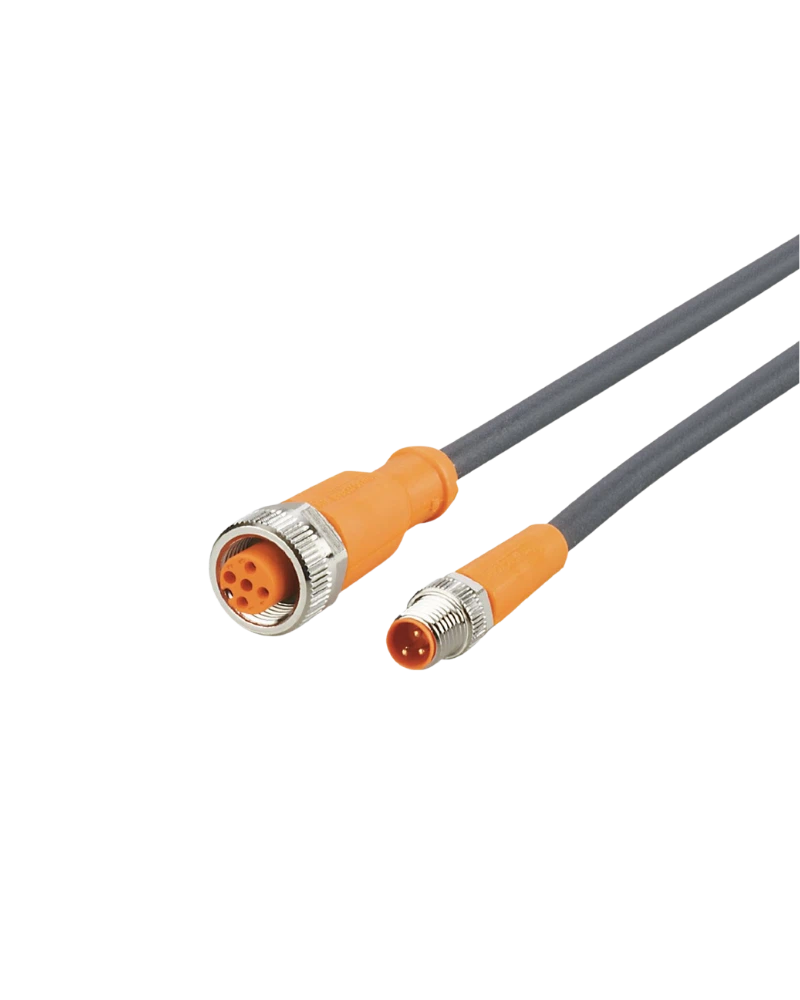

The cable incorporates an M8 straight plug on one end and an M12 straight socket on the other. Gold-plated contacts and nickel-plated brass locking components provide reliable electrical and mechanical connections.
Durability and Flexibility
The PUR cable is suitable for drag-chain applications and supports a minimum bending radius of 10 times the cable diameter. It can withstand more than 5 million bending cycles and torsional strain of ±180°/m.
Application Performance
The EVC829 provides IP65, IP67, IP68 and IP69K protection and operates from -25 °C to +90 °C. It is designed for demanding industrial automation environments involving oils, coolants and mechanical movement.
Key Features
4 m cable length
M8 straight plug
M12 straight socket
M8 to M12 connection
A-coded connectors
3 × 0.34 mm² cable
PUR cable construction
Gold-plated contacts
Halogen-free construction
Silicone-free design
FKM sealing
Oil and coolant resistant
Drag-chain suitable
More than 5 million bending cycles
Applications
Industrial automation
Factory automation
Sensor connections
Actuator connections
Machine tools
Industrial control systems
M8 to M12 interface conversion
Moving machinery
Drag-chain applications
| Specification | Details |
|---|---|
| Product Code | EVC829 |
| Product Type | Connection cable |
| Model | VDOGH030MSS0004H03STGF030MSS |
| Cable Length | 4 m |
| Plug | M8 straight |
| Socket | M12 straight |
| Connector Configuration | M8 to M12 |
| Coding | A-coded |
| Cable Material | PUR |
| Cable Diameter | 4.3 mm |
| Cable Cross Section | 3 × 0.34 mm² |
| Operating Voltage | < 50 V AC / < 60 V DC |
| Maximum Current Load | 3 A |
| Protection Class | III |
| Protection Rating | IP65, IP67, IP68, IP69K |
| Ambient Temperature | -25 °C to +90 °C |
| Cable Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Up to 3.3 m/s |
| Bending Cycles | > 5 million |
| Torsional Strain | ±180°/m |
| Sealing Material | FKM |
| Connector Body | TPU, orange |
| Locking Nut | Brass, nickel-plated |
| Contacts | Gold-plated |
| Weight | 125.3 g |
