The IFM EVC826 VDOAH030MSS0006H03STGH030MSS is a connection cable designed for reliable electrical connectivity between compatible industrial automation devices. With a 6 m PUR cable, M12 connection technology and gold-plated contacts, it provides a dependable solution for sensors, actuators and field devices used in machinery and factory automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC826 VDOAH030MSS0006H03STGH030MSS is a connection cable designed to provide reliable electrical connectivity between compatible industrial automation components.
Connection Cable
The EVC826 provides a practical connection solution between compatible sensors, actuators and other industrial field devices. Its M12 connection technology supports convenient installation and organized wiring within industrial automation systems.
Compact 6 m Cable Length
With a 6 m cable length, the EVC826 is suitable for installations where additional connection reach is required between field devices and control or automation equipment. The PUR cable construction provides a durable solution for industrial environments.
M12 Connection

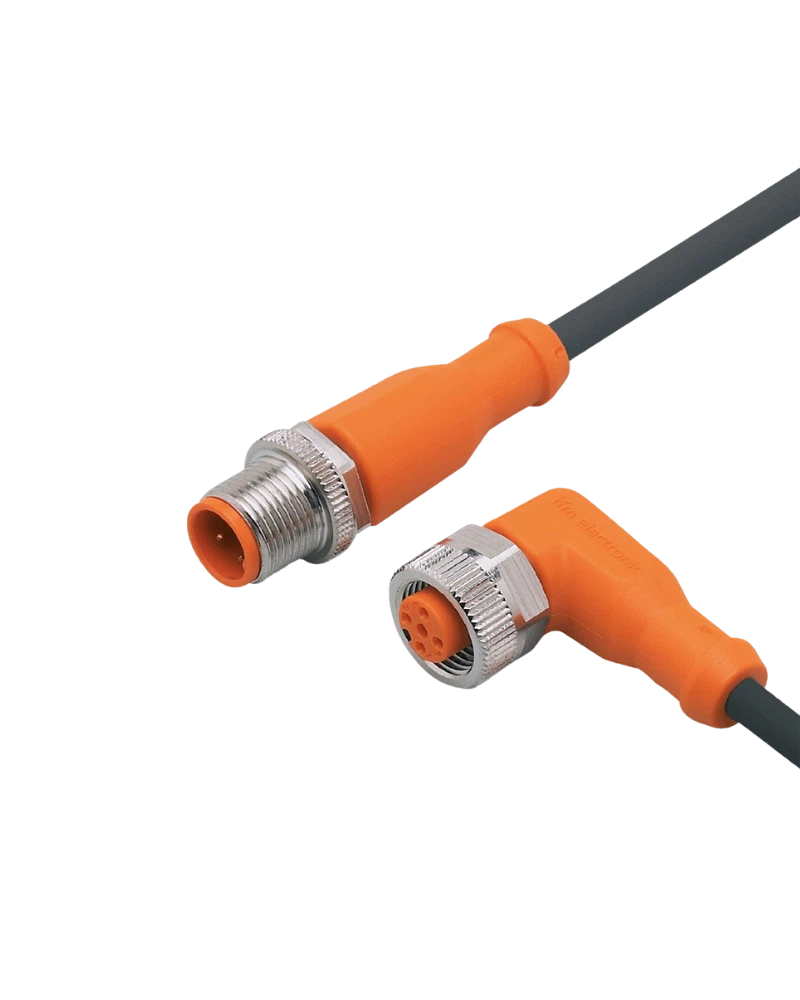

The EVC826 features M12 connection technology with A-coded connectors and gold-plated contacts for dependable electrical connectivity. The cable assembly uses a straight M12 plug and an angled M12 socket, with brass nickel-plated locking components and a TPU moulded body.
Industrial Automation Applications
The EVC826 can be used with compatible industrial sensors, proximity sensors, actuators, machine-control equipment, conveyor systems and factory automation components where the cable configuration is suitable.
Application Performance
The EVC826 is designed for demanding industrial applications. It is resistant to oils and coolants, suitable for drag-chain applications and provides protection ratings of IP65, IP67, IP68 and IP69K. The cable supports a minimum bending radius of 10 times the cable diameter, a maximum travel speed of 3.3 m/s and more than 5 million bending cycles.
Industrial Automation Integration
The cable is suitable for machinery, control panels, production equipment, factory automation systems and other industrial installations requiring reliable field-device connectivity.
Key Features
IFM EVC826 connection cable
Model: VDOAH030MSS0006H03STGH030MSS
6 m cable length
PUR cable construction
Halogen-free cable
Silicone-free cable
M12 connection technology
A-coded connectors
Straight M12 plug
Angled M12 socket
Gold-plated contacts
TPU moulded connector body
Brass, nickel-plated locking components
FKM sealing material
Resistant to oils and coolants
Vibration and shock resistant
Suitable for drag-chain applications
Minimum bending radius of 10 × cable diameter
Maximum travel speed of 3.3 m/s
More than 5 million bending cycles
Torsional strain of ±180°/m
Protection ratings up to IP69K
Suitable for industrial automation
Suitable for sensors and actuators
Suitable for machinery and factory automation
| Parameter | Specification |
|---|---|
| Product Code | EVC826 |
| Manufacturer | IFM electronic |
| Product Type | Connection Cable |
| Model / Part Number | VDOAH030MSS0006H03STGH030MSS |
| Cable Length | 6 m |
| Cable Material | PUR |
| Cable Type | Halogen-free, silicone-free, black |
| Cable Diameter | Ø 4.3 mm |
| Core Specification | 3 × 0.34 mm² |
| Connection Type | M12 connection |
| Plug | 1 × M12, straight |
| Socket | 1 × M12, angled |
| Coding | A-coded |
| Contacts | Gold-plated |
| Connector Body | TPU (urethane), orange |
| Locking Material | Brass, nickel-plated |
| Sealing Material | FKM |
| Tightening Torque | 0.6–1.5 Nm |
| Operating Voltage | < 250 V AC |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Drag-Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Maximum Travel Speed | 3.3 m/s |
| Bending Cycles | > 5 million |
| Torsional Strain | ±180°/m |
| Application | Industrial automation |
| Typical Use | Sensors, actuators, machinery and factory automation |
