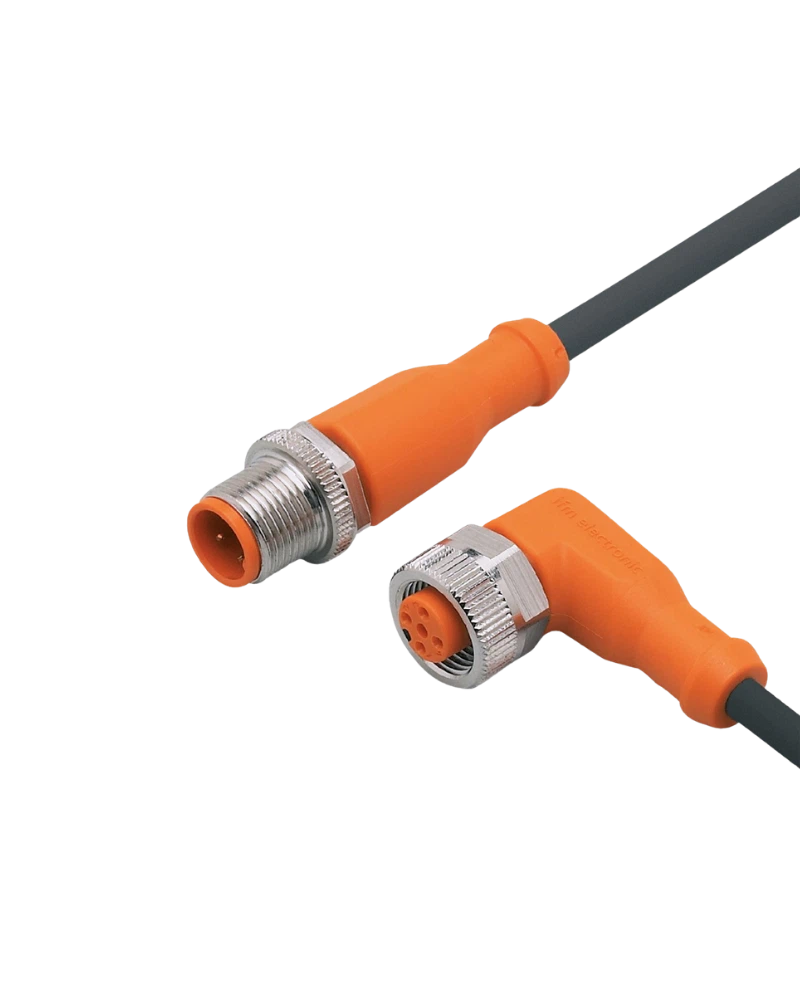

The IFM EVC825 VDOAH030MSS0004H03STGH030MSS is a connection cable designed for reliable electrical connectivity between compatible industrial automation devices. With a 4 m cable length, PUR cable construction and M12 connection technology, it provides a dependable connection solution for sensors, actuators and field devices used in machinery and factory automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC825 VDOAH030MSS0004H03STGH030MSS is a connection cable designed to provide reliable electrical connectivity between compatible industrial automation components.
Connection Cable
The EVC825 provides a practical connection solution between compatible sensors, actuators and other industrial field devices. Its M12 connection technology supports convenient installation and organized wiring within automation systems.
4 m Cable Length
With a 4 m cable length, the EVC825 is suitable for connections where additional cable reach is required between field devices and control or automation equipment. The PUR cable construction supports reliable use in demanding industrial environments.
M12 Connection
The EVC825 features M12 connection technology with gold-plated contacts for dependable electrical connectivity. The connector uses a straight M12 configuration with A coding and a durable TPU moulded body.
Industrial Automation Applications
The EVC825 can be used with compatible industrial sensors, proximity sensors, actuators, machine-control equipment, conveyor systems and factory automation components where the cable configuration is suitable.
Application Performance
The EVC825 is designed for demanding industrial applications and provides resistance to oils and coolants, vibration and shock resistance, and reliable sealing. It offers IP65, IP67, IP68 and IP69K protection ratings and is suitable for cable-chain applications.
Industrial Automation Integration
The cable is suitable for machinery, control panels, production equipment, factory automation systems and other industrial installations requiring reliable field-device connectivity.
Key Features
IFM EVC825 connection cable
Model: VDOAH030MSS0004H03STGH030MSS
4 m cable length
PUR cable construction
Halogen-free cable
M12 straight connector
A-coded connection
Gold-plated contacts
TPU moulded connector body
Brass, nickel-plated locking nut
FKM sealing material
Resistant to oils and coolants
Vibration and shock resistant
Suitable for cable-chain applications
Minimum bending radius of 10 × cable diameter in cable-chain applications
More than 5 million bending cycles
Protection ratings up to IP69K
Suitable for industrial automation
Suitable for sensors and actuators
Suitable for machinery and factory automation
| Parameter | Specification |
|---|---|
| Product Code | EVC825 |
| Manufacturer | IFM electronic |
| Product Type | Connection Cable |
| Model / Part Number | VDOAH030MSS0004H03STGH030MSS |
| Cable Length | 4 m |
| Cable Material | PUR |
| Cable Type | Halogen-free, black |
| Cable Diameter | Ø 4.3 mm |
| Core Specification | 3 × 0.34 mm² |
| Connection Type | M12 connection |
| Connector | 1 × M12, straight |
| Coding | A-coded |
| Contacts | Gold-plated |
| Connector Body | TPU, orange |
| Locking Nut | Brass, nickel-plated |
| Sealing Material | FKM |
| Maximum Total Current Load | 4 A |
| Supply Voltage | < 250 V AC / < 300 V DC |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 °C to +90 °C |
| Storage Temperature | -25 °C to +55 °C |
| Cable-Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Maximum Travel Speed | 3.3 m/s |
| Bending Cycles | > 5 million |
| Torsional Strain | ±180 °/m |
| Weight | 151 g |
| Application | Industrial automation |
| Typical Use | Sensors, actuators, machinery and factory automation |
