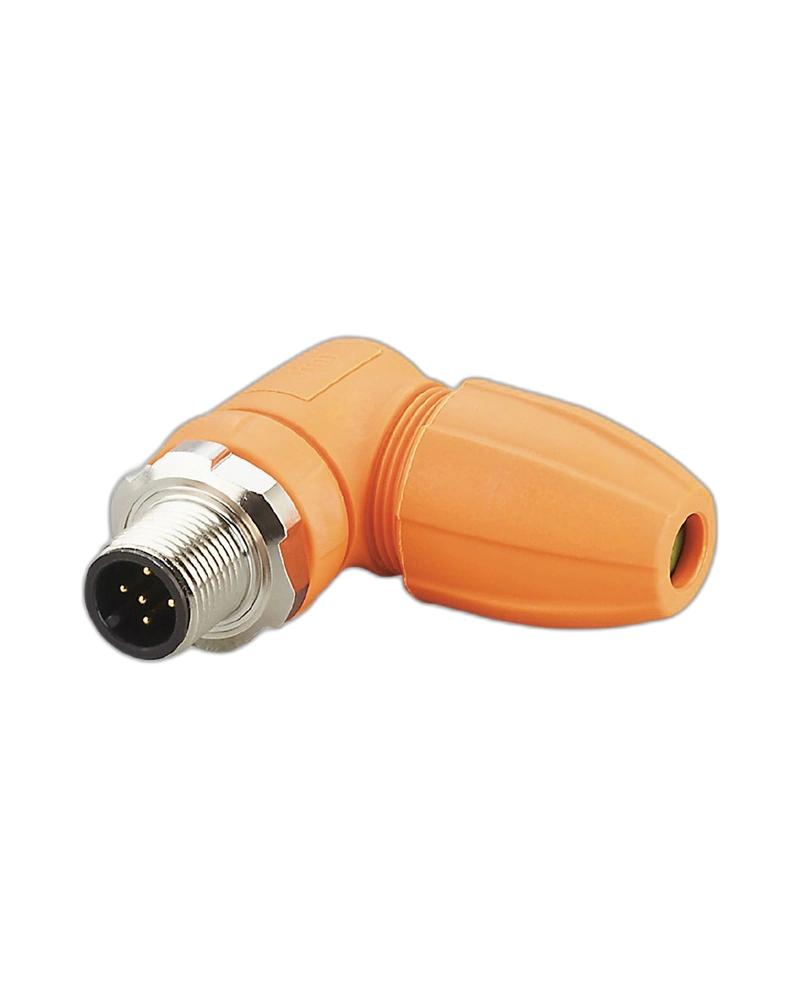

IFM EVC817 is an angled wirable M12 plug designed for reliable electrical connections in industrial automation applications. It features 5 gold-plated contacts, screw-terminal wiring, effective strain relief, and high IP65/IP67/IP68/IP69K protection for demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC817 wirable plug, model SSTAH050MSSFKPG, is an angled M12 connection solution designed for machine tools and factory automation. Its screw-terminal design provides simple and convenient field wiring.
Angled M12 A-coded plug
5 gold-plated contacts
Screw-terminal connection
Silicone-free construction
PA 6.6 orange housing
FKM sealing
Patented three-way ball-clamp strain relief
IP65, IP67, IP68 and IP69K protection
The EVC817 is suitable for industrial automation, factory automation, machine tools, sensors, actuators, and control equipment where a reliable field-wirable M12 plug is required.
The screw terminals accommodate 0.25–1 mm² conductors and cable sheaths with a diameter of 3.5–6 mm. Gold-plated contacts provide reliable electrical connectivity, while the robust housing, FKM sealing, and effective strain relief support dependable operation in demanding industrial environments.
The IFM EVC817 combines angled M12 connectivity, easy screw-terminal wiring, gold-plated contacts, and strong environmental protection. Its robust strain-relief design makes it a practical choice for industrial field wiring and automation installations.
| Parameter | Specification |
|---|---|
| Product Code | EVC817 |
| Product Type | Wirable Plug |
| Model / Part Number | SSTAH050MSSFKPG |
| Connector | M12, angled, A-coded |
| Contacts | 5, gold-plated |
| Connection | Screw terminals, 0.25–1 mm² |
| Operating Voltage | < 60 V AC/DC |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Operating Temperature | -25 °C to +90 °C |
