IFM EVC816 is a wirable M12 plug designed for reliable electrical connections in industrial automation applications. It features 5 gold-plated contacts, screw-terminal wiring, robust construction, and high IP65/IP67/IP68/IP69K protection for demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

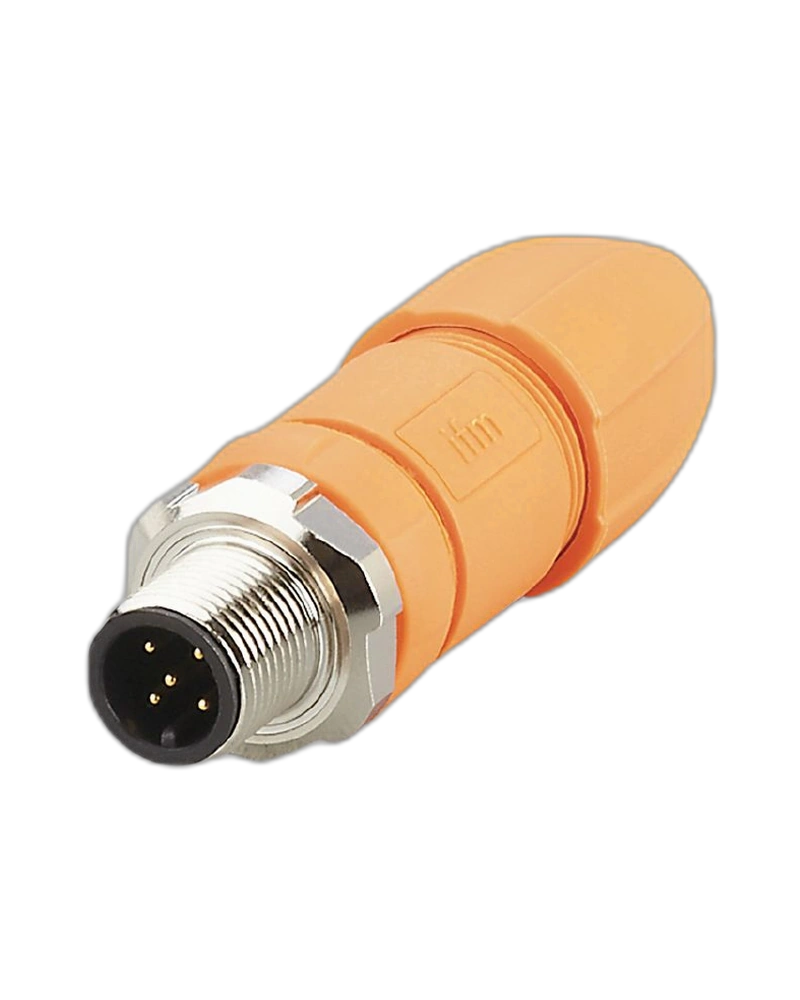

The IFM EVC816 wirable plug, model SSTGH050MSSFKPG, is a straight M12 plug designed for industrial and factory automation applications. Its screw-terminal design provides a convenient solution for field wiring compatible cables.
Straight M12 A-coded plug
5 gold-plated contacts
Screw-terminal connection
Silicone-free construction
PA 6.6 orange housing
FKM sealing
Nickel-plated brass locking nut
Patented three-way ball-clamp strain relief
IP65, IP67, IP68 and IP69K protection
The EVC816 is suitable for industrial automation, factory automation, sensors, actuators, and machine-control applications where a reliable field-wirable M12 plug is required.
The screw terminals accommodate 0.25–1 mm² conductors and cable sheaths with a diameter of 3.5–6 mm. Gold-plated contacts provide reliable electrical connectivity, while the robust housing and FKM sealing support dependable operation in demanding industrial environments.
The IFM EVC816 combines simple screw-terminal wiring, gold-plated contacts, effective strain relief, and high environmental protection. Its straight M12 design makes it a practical choice for industrial field wiring and automation installations.
| Parameter | Specification |
|---|---|
| Product Code | EVC816 |
| Product Type | Wirable Plug |
| Model / Part Number | SSTGH050MSSFKPG |
| Connector | M12, straight, A-coded |
| Contacts | 5, gold-plated |
| Connection | Screw terminals, 0.25–1 mm² |
| Operating Voltage | < 60 V AC/DC |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Operating Temperature | -25 °C to +90 °C |
