IFM EVC815 is a wirable M12 socket designed for reliable electrical connections in industrial automation applications. It features an angled A-coded connector, 5 gold-plated contacts, screw-terminal wiring, and high IP65/IP67/IP68/IP69K protection for demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

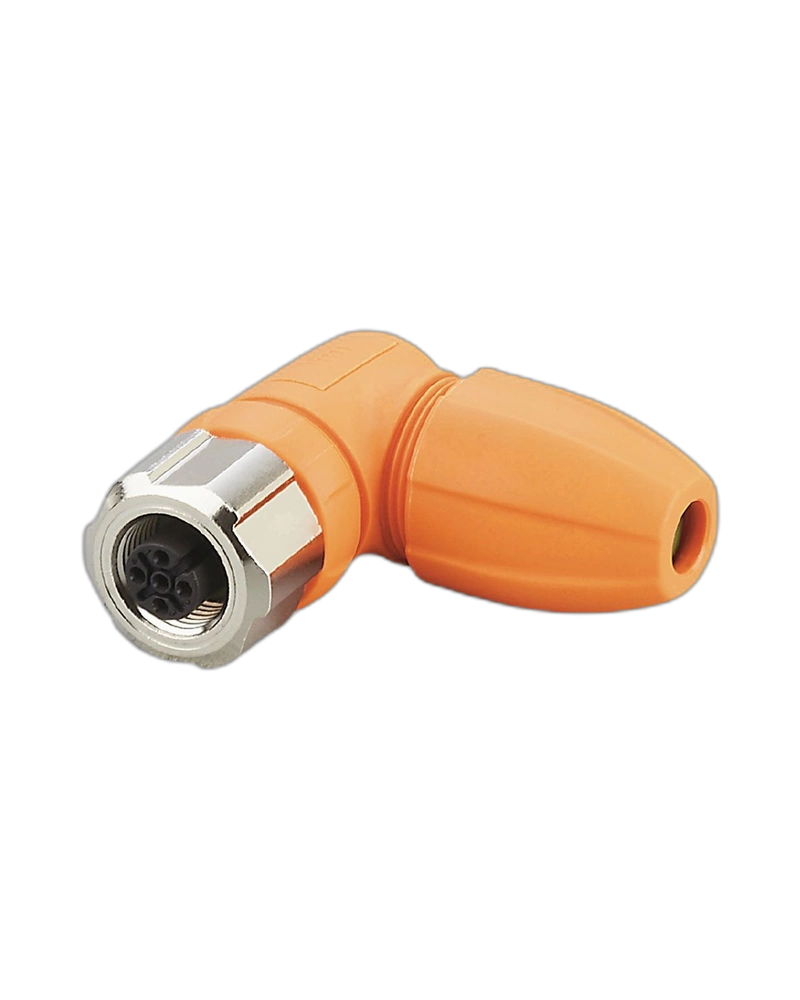

The IFM EVC815 wirable socket, model SDOAH050MSSFKPG, is an angled M12 connection solution designed for industrial automation and factory applications. Its screw-terminal design allows convenient field wiring of compatible cables.
Angled M12 A-coded socket
5 gold-plated contacts
Screw-terminal connection
Silicone-free construction
PA 6.6 orange housing
FKM sealing
Brass, nickel-plated locking nut
High protection rating
The EVC815 is suitable for industrial automation, factory automation, machine tools, sensors, actuators, and control equipment where a reliable field-wirable M12 socket is required.
The screw terminals accommodate 0.25–1 mm² conductors and cable sheaths with a diameter of 3.5–6 mm. Gold-plated contacts support reliable electrical connections, while the high protection ratings provide dependable performance in demanding industrial environments.
The IFM EVC815 combines angled M12 connectivity, simple screw-terminal wiring, gold-plated contacts, and strong environmental protection. Its compact and robust design makes it a practical choice for industrial field wiring and automation installations.
| Parameter | Specification |
|---|---|
| Product Code | EVC815 |
| Product Type | Wirable Socket |
| Model / Part Number | SDOAH050MSSFKPG |
| Connector | M12, angled, A-coded |
| Contacts | 5, gold-plated |
| Connection | Screw terminals, 0.25–1 mm² |
| Operating Voltage | < 60 V AC/DC |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Operating Temperature | -25 °C to +90 °C |
