IFM EVC814 is a wirable M12 socket designed for reliable electrical connections in industrial automation applications. It features 5 gold-plated contacts, screw-terminal wiring, and high IP65/IP67/IP68/IP69K protection for demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

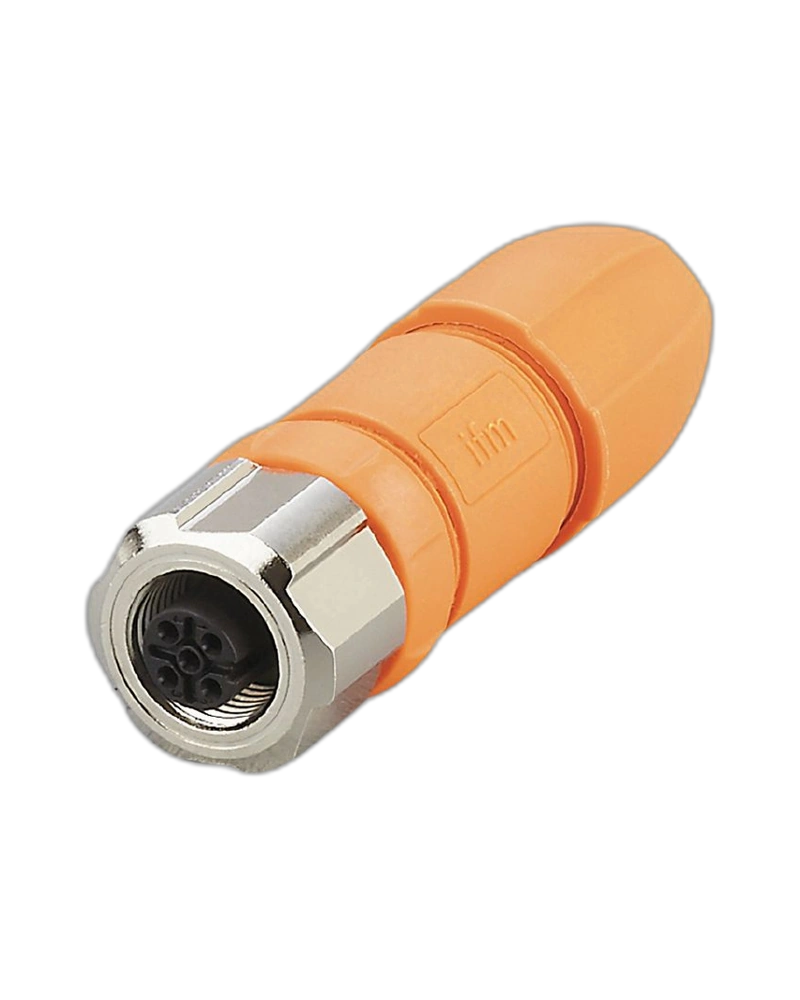

The IFM EVC814 wirable socket, model SDOGH050MSSFKPG, is a straight M12 connection solution designed for machine tools and factory automation. Its screw-terminal design enables simple field wiring of compatible cables.
Straight M12 A-coded socket
5 gold-plated contacts
Screw-terminal connection
Silicone-free construction
PA 6.6 orange housing
FKM sealing
Patented three-way ball clamp strain relief
High protection rating
The EVC814 is suitable for industrial automation, factory automation, machine tools, sensors, actuators, and control equipment where a reliable field-wirable M12 socket is required.
The screw terminals accommodate 0.25–1 mm² conductors and cable sheaths with a diameter of 3.5–6 mm. Gold-plated contacts provide reliable electrical connections, while the robust housing and high IP protection support dependable operation in demanding industrial environments.
The IFM EVC814 combines easy screw-terminal wiring, gold-plated contacts, effective strain relief, and high environmental protection. It is a practical connection solution for industrial field wiring and automation installations.
| Parameter | Specification |
|---|---|
| Product Code | EVC814 |
| Product Type | Wirable Socket |
| Model / Part Number | SDOGH050MSSFKPG |
| Connector | M12, straight, A-coded |
| Contacts | 5, gold-plated |
| Connection | Screw terminals, 0.25–1 mm² |
| Operating Voltage | < 60 V AC/DC |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Operating Temperature | -25 °C to +90 °C |
