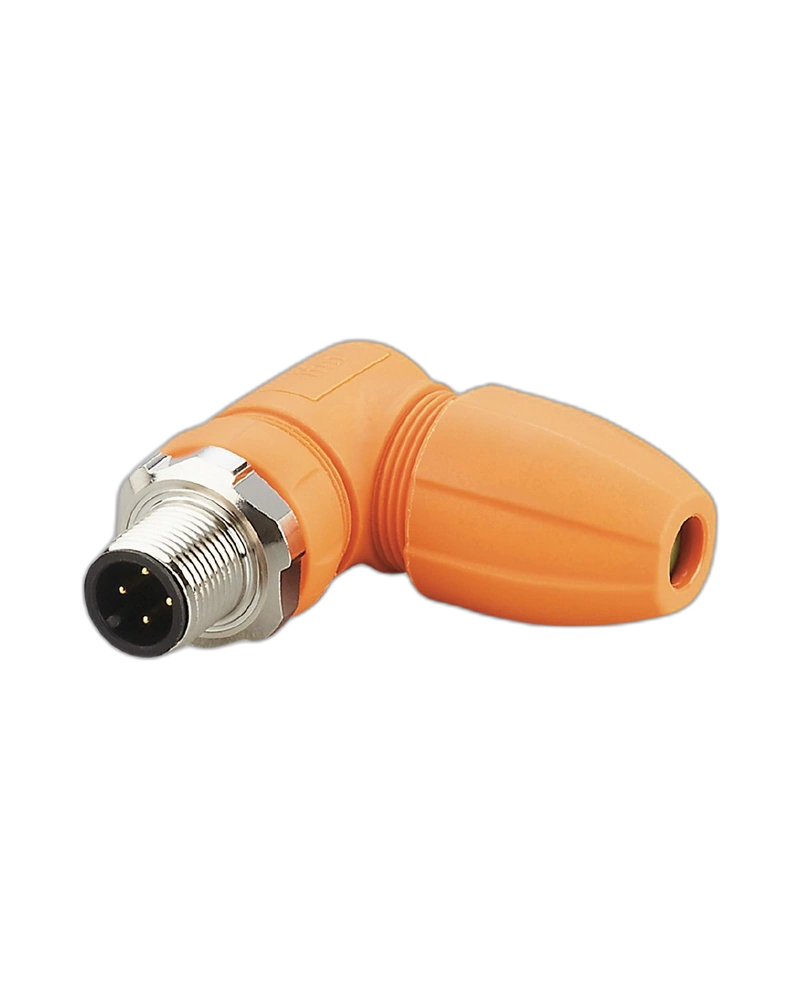

IFM EVC813 is a wirable M12 plug designed for reliable electrical connections in industrial automation applications. Its angled A-coded design, gold-plated contacts, screw terminals, and high IP protection make it suitable for demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC813 wirable plug, model SSTAH040MSSFKPG, is an angled M12 connection solution designed for machine tools and factory automation. Its screw-terminal design allows convenient field wiring of compatible cables.
Angled M12 A-coded plug
4 gold-plated contacts
Screw-terminal wiring
Silicone-free construction
PA 6.6 orange housing
FKM sealing
Nickel-plated brass locking nut
IP65, IP67, IP68 and IP69K protection
The EVC813 is suitable for industrial automation, factory automation, machine tools, sensors, actuators, and control equipment where a reliable field-wirable M12 plug is required.
The screw terminals accommodate 0.25–1 mm² conductors and cable sheaths with a diameter of 3.5–6 mm. Gold-plated contacts support reliable electrical connections, while the robust housing and FKM sealing provide dependable protection in demanding industrial environments.
The IFM EVC813 combines angled M12 connectivity, easy screw-terminal wiring, gold-plated contacts, and high environmental protection. It is a practical choice for industrial field wiring and automation installations.
| Parameter | Specification |
|---|---|
| Product Code | EVC813 |
| Product Type | Wirable Plug |
| Model / Part Number | SSTAH040MSSFKPG |
| Connector | M12, angled, A-coded |
| Contacts | 4, gold-plated |
| Connection | Screw terminals, 0.25–1 mm² |
| Operating Voltage | < 250 V AC / < 300 V DC |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Operating Temperature | -25 °C to +90 °C |
