IFM EVC811 is a wirable M12 socket designed for reliable electrical connections in industrial automation applications. It features an angled A-coded connector, gold-plated contacts, screw terminals, and high IP65/IP67/IP68/IP69K protection for demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

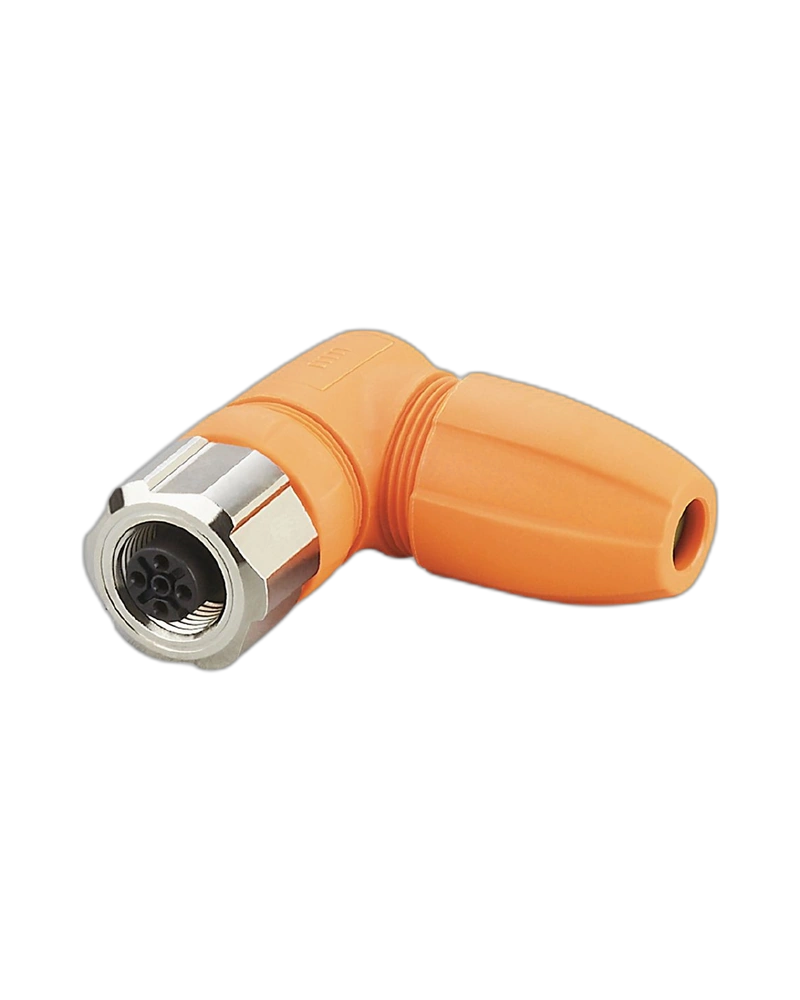

The IFM EVC811 wirable socket, model SDOAH040MSSFKPG, is a field-wireable M12 connection solution designed for industrial automation and factory applications. Its angled connector design provides convenient access where installation space is limited.
Angled M12 A-coded socket
4 gold-plated contacts
Screw-terminal connection
Silicone-free construction
PA 6.6 orange housing
FKM sealing
Nickel-plated brass locking nut
IP65, IP67, IP68 and IP69K protection
The EVC811 is suitable for industrial automation, factory automation, sensors, actuators, and machine-control applications where a reliable field-wireable M12 connection is required.
The screw terminals accommodate 0.25 to 1 mm² conductors and cable sheaths with a diameter of 3.5 to 6 mm. Gold-plated contacts support reliable electrical connectivity, while the high protection ratings help the socket perform reliably in demanding industrial environments.
The IFM EVC811 combines easy screw-terminal wiring, angled M12 connectivity, gold-plated contacts, and strong environmental protection. It is a practical choice for industrial field wiring and automation installations.
| Parameter | Specification |
|---|---|
| Product Code | EVC811 |
| Product Type | Wirable Socket |
| Model / Part Number | SDOAH040MSSFKPG |
| Connector | 1 × M12, angled, A-coded |
| Contacts | 4, gold-plated |
| Connection | Screw terminals, 0.25–1 mm² |
| Operating Voltage | < 250 V AC / < 300 V DC |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Operating Temperature | -25 °C to +90 °C |
