IFM EVC810 is a wirable M12 socket designed for reliable electrical connections in industrial automation applications. It features gold-plated contacts, screw terminals, and high IP65/IP67/IP68/IP69K protection for dependable performance in demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

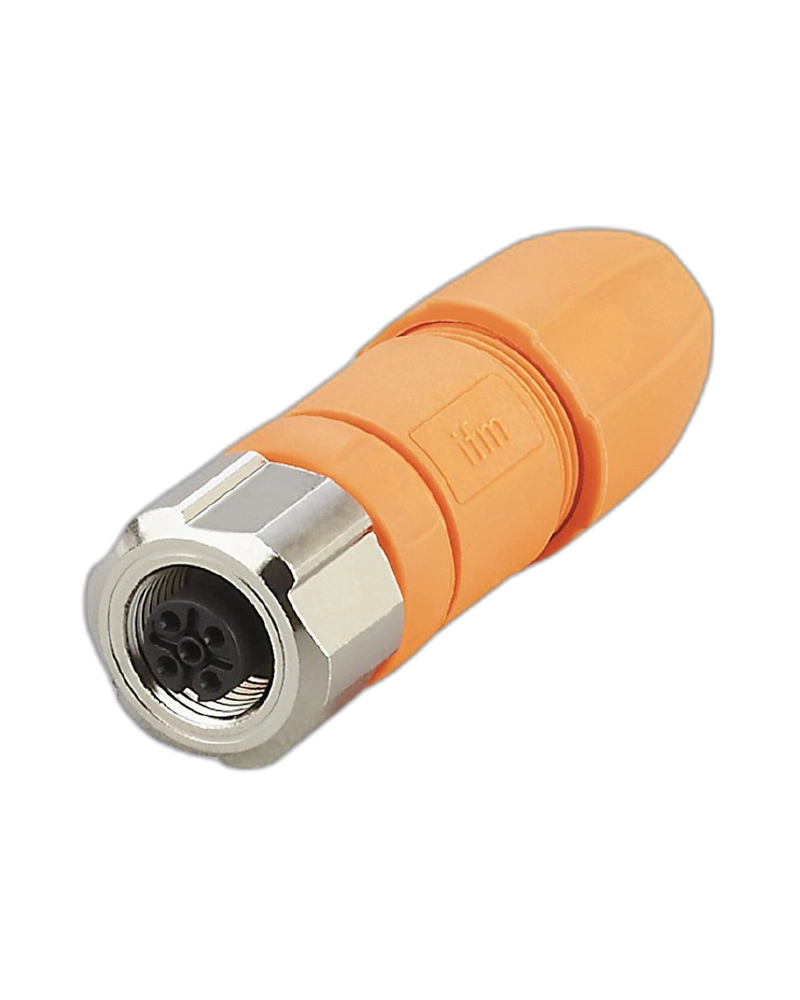

The IFM EVC810 wirable socket, model SDOGH040MSSFKPG, is a field-wireable M12 connection solution designed for industrial automation and factory applications. Its screw-terminal design allows simple and convenient wiring.
M12 straight socket
A-coded connection
4 gold-plated contacts
Screw-terminal wiring
Silicone-free construction
PA 6.6 orange housing
FKM sealing
Nickel-plated brass locking nut
High protection rating
The EVC810 is suitable for industrial automation, factory automation, sensors, actuators, and machine-control applications where a reliable field-wireable M12 connection is required.
The screw terminals support conductors from 0.25 to 1 mm² and cable sheaths from 3.5 to 6 mm. Gold-plated contacts provide reliable electrical connectivity, while the high IP protection ratings support use in demanding industrial environments.
The IFM EVC810 combines easy screw-terminal wiring, gold-plated contacts, rugged materials, and high environmental protection. It is a practical choice for field-wiring and industrial automation installations.
| Parameter | Specification |
|---|---|
| Product Code | EVC810 |
| Model / Part Number | SDOGH040MSSFKPG |
| Product Type | Wirable Socket |
| Connector | M12, straight, A-coded |
| Contacts | 4, gold-plated |
| Operating Voltage | < 250 V AC / < 300 V DC |
| Maximum Current Load | 4 A |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Operating Temperature | -25 °C to +90 °C |
