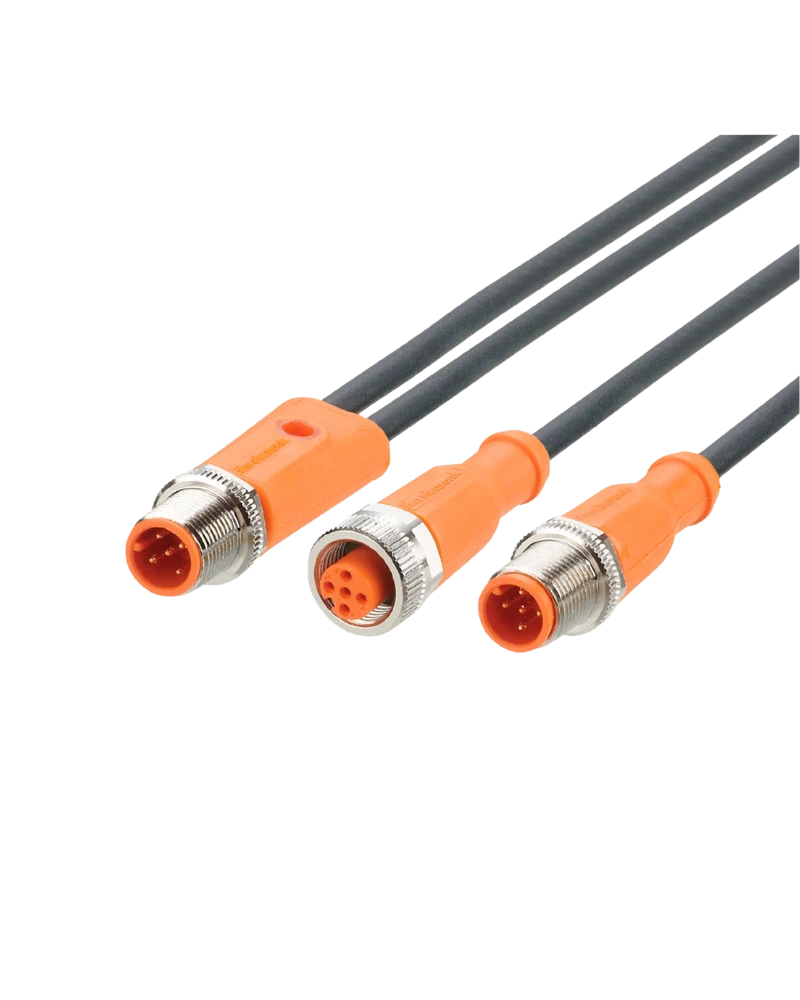

IFM EVC801 is a 2 m Y connection cable designed for reliable industrial connectivity. Its compact Y-splitter configuration, gold-plated contacts, and robust M12 connections make it suitable for connecting compatible automation devices in demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC801 Y connection cable, model YDSGH050MSS0002H05STGH050MSS, is a 2 m industrial connection solution designed to simplify connections between compatible automation devices. Its Y-shaped configuration provides practical and organized device connectivity.
2 m PUR cable
Y connection cable design
5 × 0.34 mm² cable construction
Halogen-free and silicone-free
Gold-plated contacts
Straight M12 A-coded connectors
TPU connector housing
FKM sealing
Suitable for drag-chain applications
IP65, IP67, IP68 and IP69K protection
The EVC801 is suitable for industrial automation, machinery, sensors, actuators, and compatible field devices. Its Y configuration is useful where multiple compatible connections need to be arranged efficiently within an automation installation.
The PUR cable provides durable performance in industrial environments, while gold-plated contacts support reliable electrical connectivity. The cable is suitable for drag-chain applications and offers resistance to demanding operating conditions, with an ambient temperature range of -25 °C to +90 °C.
The IFM EVC801 combines a Y-splitter design, robust M12 connections, gold-plated contacts, and high ingress protection. Its durable construction makes it a practical solution for organized connectivity in industrial automation systems.
| Parameter | Specification |
|---|---|
| Product Code | EVC801 |
| Manufacturer | IFM electronic |
| Product Type | Y Connection Cable |
| Model / Part Number | YDSGH050MSS0002H05STGH050MSS |
| Cable Length | 2 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Type | Y Connection Cable |
| Conductor Configuration | 5 × 0.34 mm² |
| Connector | M12, straight |
| Connector Coding | A-coded |
| Contacts | Gold-plated |
| Connector Housing | TPU, orange |
| Locking Nut | Brass, nickel-plated |
| Sealing Material | FKM |
| Operating Voltage | 30 V DC |
| Maximum Total Current Load | 4 A |
| Ambient Temperature | -25 °C to +90 °C |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Drag-Chain Suitable | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Maximum Travel Speed | 3.3 m/s |
| Bending Cycles | > 5 million |
| Torsional Stress | ±180°/m |
| Weight | Approx. 186.5 g |
| Pack Quantity | 1 pcs. |
