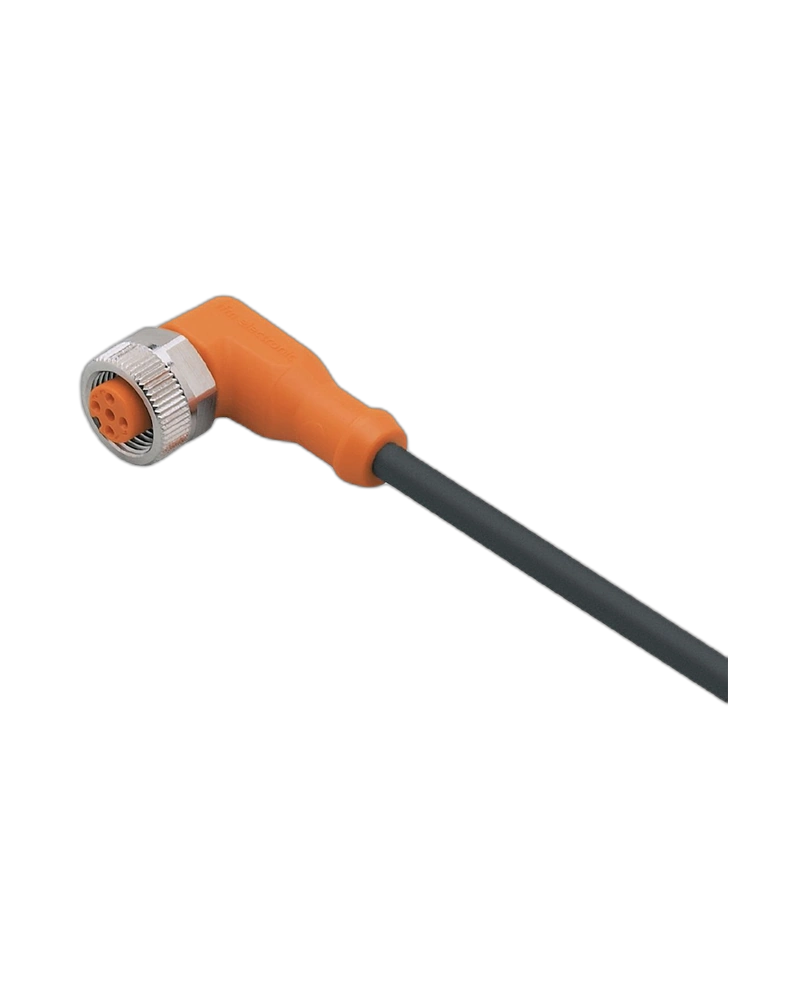

The IFM EVC767 is a 25 m screened connecting cable with an angled M12 socket designed for industrial automation and machine-tool applications. Its PUR cable, gold-plated contacts, shielded construction and drag-chain suitability provide reliable signal transmission and mechanical durability in demanding environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVC767 provides a long-distance connection solution for industrial automation components. Its 25 m cable length makes it suitable for large machines and installations requiring extended field-level connections.
The cable uses an angled A-coded M12 socket with four gold-plated contacts. The screened 4 × 0.34 mm² PUR cable provides reliable signal transmission and shielding performance.
The EVC767 is halogen-free, free from silicone and designed for demanding industrial applications. It is suitable for machine tools, coolants and lubricants and supports drag-chain operation.
The cable is suitable for dynamic machinery, factory automation, machine tools and applications requiring screened connections and repeated cable movement.
25 m cable length
Angled M12 socket
A-coded connection
4 gold-plated contacts
Screened cable
PUR cable
4 × 0.34 mm² cable
Halogen-free construction
Drag-chain suitable
Minimum bending radius of 10 × cable diameter
Industrial automation
Factory automation
Machine tools
Dynamic machinery
Sensor connections
Actuator connections
Coolant and lubricant environments
Screened signal connections
Production machinery
Drag-chain applications
| Specification | Details |
|---|---|
| Product Code | EVC767 |
| Model | ADOAH040MSS0025K04 |
| Cable Length | 25 m |
| Connector | M12 socket |
| Connector Design | Angled |
| Coding | A-coded |
| Cable | PUR, screened, 4 × 0.34 mm² |
| Protection | IP65 / IP67 |
| Current Rating | 4 A |
